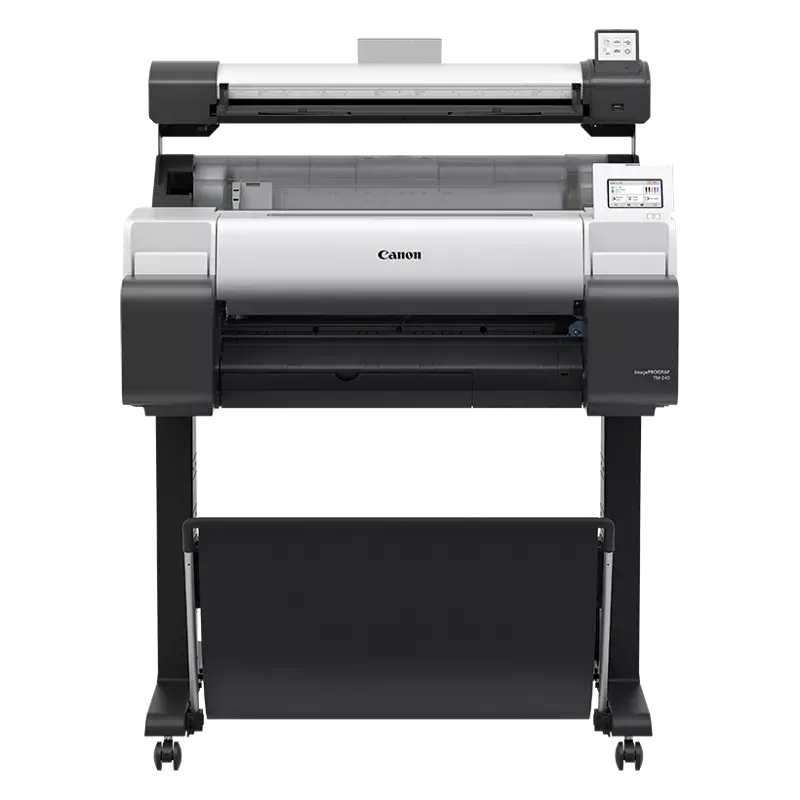

imagePROGRAF TM-240 MFP Lm24
Redefining what is possible with a large format printer, the TM Series printers offer enhanced productivity, efficiency, and usability over the previous generation of the imagePROGRAF TM & TA series printers. The imagePROGRAF TM-240 MFP Lm24 is great for entry-level users in small spaces printing posters, CAD documents, signage, and more with vivid color reproduction with newly formulated magenta ink & colour calibration, along with basic scanning capabilities.
The newly designed imagePROGRAF TM Series has been built for more efficiency and comfort compared to previous models with its new flat-body design, full-frontal operation, and new 4.3” adjustable user interface screen. The user interface screen displays the ink levels and sub-ink tank levels, automatic media detection indicator levels, and more setting prompts all on the home screen! Registered as EPEAT Gold—first in the imagePROGRAF TM Series— and as ENERGY STAR certified, this series is replacing EPS packaging materials with cardboard packaging. Plus, there is a host of creative workflow software included, such as, PosterArtist (Online and Lite versions), Free Layout Plus, Direct Print Plus, Accounting Manager, and more, to help with your everyday personal and business needs!
Included Software
PosterArtist (Online and Lite versions) is an easy to-use, cost-free, template-driven poster creation software. Create professional posters, banners, flyers, and more in just four easy steps!
Free Layout Plus lets you nest, tile, and create custom layouts before printing your files with this print utility. Use the plug-in feature to print directly from Microsoft Office programs.
Direct Print Plus lets you batch print files and monitor the status of more than one imagePROGRAF Series printer. Additional features allow you to easily produce collated sets, drag and drop PDF files, and nest images.
Accounting Manager helps track actual ink and media usage and costs.
Size
Ink Colour Set
Number of Nozzles
Hard Drive
Basket
Maximum Print Speed
Maximum Print Speed in seconds
Maximum Print Resolution
Total Number of Nozzles
Media Feed
Media Width
Media Thickness
Media Core Sizes
Maximum Roll Diameter
Printer Memory
Interface
Power Supply
Power Consumption
Operational Environment
Printer Dimensions and Weight
Shipping Dimensions and Weight
Operating System
Options
User replaceable items
Software/Utilities/Applications
What's in the Printer Box?
Lm24 Scanner
Scan Speed
Scan Modes
Colour Space
Maximum Resolution
Scan Accuracy
Maximum Scan Width
Maximum Media Width
Maximum Scan Length
Maximum Media Thickness
Digital Imaging Technology
Included Software
Operating Environment
External Power Supply
Power Consumption
Compliance
Scanner Dimensions
Scanner Weight
What's in the Scanner box
24" (609mm) Wide Printer
5 Colour Pigment Inks: MBK (80ml), BK, C, M, Y (55ml)
Matte Black: 5,120 nozzles BK/C/M/Y: 2,560 nozzles
N/A
Catch Basket (optional)
2.4 D/minute
23 seconds per D size
2,400 x 1,200 dpi
Total: 15,360 - MBK: 5,120 nozzles, C, M, Y, BK: 2,560 nozzles each
Roll Feed: One Roll, Top-loading, Front Output
Roll Feed: 8" - 24" (203.2mm - 609mm)
Sheet Feed: 8" - 24" (203.2mm - 609mm)
0” - 0.03” (0.07 mm - 0.8 mm)
2" Core Standard, 2"/3" Core Roll Holder Set (RH2-28) Optional
5.9" (150mm)
2GB
Standard (Built-in): USB 2.0 Hi-Speed, 10/100/ 1000Base-T/TX,
Wireless LAN (IEEE 802.11 b/g/n)
AC 100 – 240V (50 – 60 Hz)
Max: Approx. 59W
Standby: Approx. 1.6W
Power Off: Approx. 0.1W
Temperature: 59 – 86 °F (15 – 30 °C)
Relative Humidity: 10 – 80% (Non Condensation)
17.2” x 38.5” x 29.4”, 88.2 lbs
41.7” x 38.5” x 34.1”, 112.2 lbs.
Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit),
Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 (64-bit), Macintosh OS v10.12.6-v13x
• Stand (SD-24)
• 2”/3” Roll Holder Set (RH2-28)
• Ink Tank (PFI-030/PFI-031)
• Print Head (PF-06)
• Maintenance Cartridge (MC-31)
• Cutter Blade (CT-08)
Accounting Manager, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist, Canon PRINT Inkjet Selphy
Printer, Starter Ink Tanks BK/C/M/Y (55ml) MBK (80ml), 1 Print Head, Maintenance Cartridge (Installed), 2” Roll Holder, Installation Guide , User Registration Card, One Year Printer Warranty Statement, Print Head Warranty Statement, Call Center Notice, Media Compatibility Flyer, PosterArtist Web Notice Flyer, Safety and Environmental Information, iWR Service Terms Leaflet, USB port (High Speed), Power Cable & Screw, Gigabit Ethernet (Built-in)
SD-24 Stand with Catch Basket
• Color: 1” per second at 200dpi
• Mono or B/W: 3” per second at 200dpi
• 16.7 Million Color RGB (24-bit)
• 256-level Grayscale (8-bit)
• Black-and-white (1-bit)
sRGB
600 dpi
+/- 0.2% : +/- 1 pixel
24"
26"
109"
0.003” - 0.03” (0.07 mm - 0.8 mm)
Contact Image Sensor (CIS) Technology (SingleSensor Assembly)
• 24-bit RGB digital color image capture
• 16-bit grayscale image capture
• Panchromatic monochrome and black-and-white
• Bi-directional extra long-life LED light system for optimum object illumination and instant-on scanning capability
ScanAppl
10 - 35 °C, 10 - 90% RH
100-240V, 50-60 Hz
Sleep/Idle: 0.6W/11.7W Scanning Color/Grayscale @ 200 dpi: 17.5W
ENERGY STAR®, UL, FCC
(With Doc Return Guide - Paper Tray flat) 5.1” x 36.8” x 9.9”
11.6 lb. (Approx.)
• Lm24 Scanner
• Printer mounting brackets, fixings, and 3mm tool
• 2 paper edge guides
• Document return guides (1 for Lm24 scanner)
• Calibration target
• Lm24 Lm36 Scanner Quick Start Guide
• Ethernet cable (2 meter)
• Power Supply Regional - Mains power cord(s) (2 meter)
