JF-2418UV is a convenient tool for anyone to create raised pattern and provide added value to RFID, boutique goods and jewelry, oil painting reproduction and so on.Moreover, the high resolution printing ability delivers refined output—even 2pt small letters can be printed with high sharpness and definition in sophisticated details to serve a diversity of applications.

With a specially-developed printing process, LED energy control, and GCC primer inks, JF-2418UV can easily decorate printed substrates into sophisticated and beautiful merchandises, such as, Mifare cards, invitation cards, acrylics.
* Cold foil function is only available for JF-2418UV (with primer) model.
** A foil sleeking machine is required to apply foil on printed media.

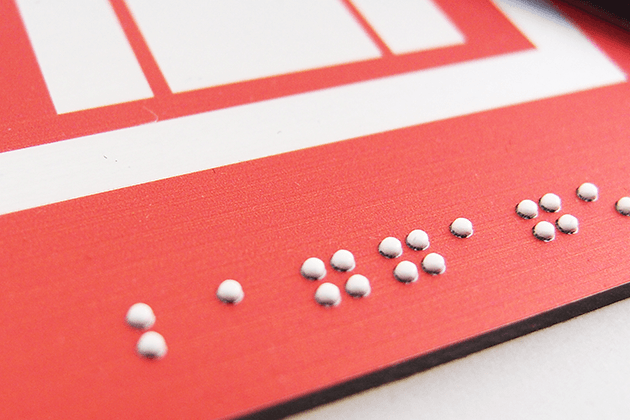

With the specially-developed ADA printing technology, JF-2418UV can produce ADA signs with one simple printing process. JF-2418UV provides the best solution for ADA-compliant sign printing in a wide range of applications.

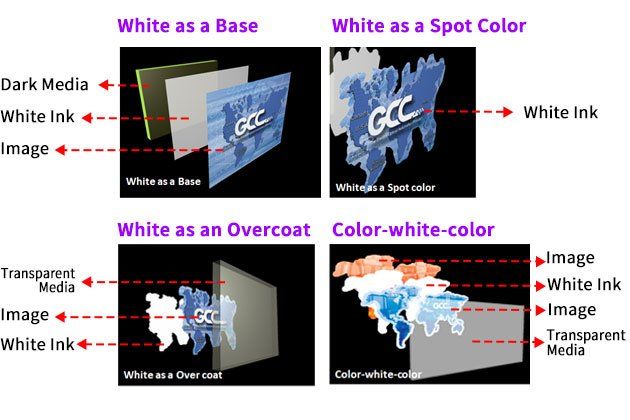

Dedicated White Solution

The MAX JF-2418UV offers four major utilizing white ink applications as a base, overcoat, spot color and color-white-color for 3 layer printing at the same time. With the White solution, it can be easily used to produce brilliant and rich color output on any transparent and dark media, offering excellent quality images to fulfill all needs for Sign, Labeling and Packaging industries.

Advanced Varnish Printing Technologies

Varnish is a transparent spread on the surfaces of printed matters (images) that forms a thin and even transparent gloss layer after its leveling and UV curing for drying process. Varnish not only protects printed content but enhances durability. Different varnish modes are available that offer the advantages of a high value added application and cost saving on labor and laminator equipment as well as creates the tactile attribute of graphics, which lifts the added value of products and presents eye-catching printing effect.

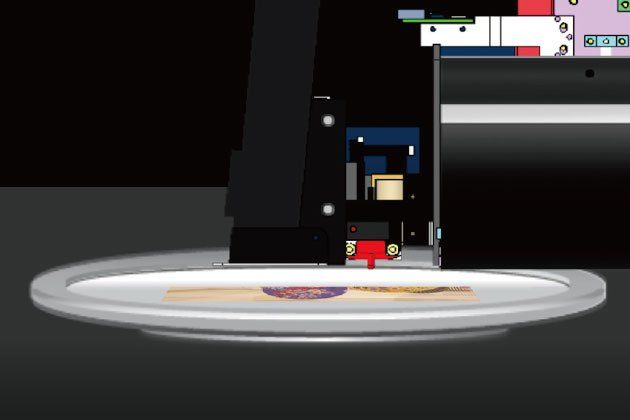

Allow user to print on materials with uneven surfaces with a slope of 10 to 20 degree, which avoids print head being crushed and retains the print quality at the same time. For example, custom ceramic plate, tablet cover, etc.
* Improper usage of high gap printing may cause print head nozzles clogged by the reflection of UV light.
** A higher gap between print heads and substrate may cause printing images vaguer when processing.

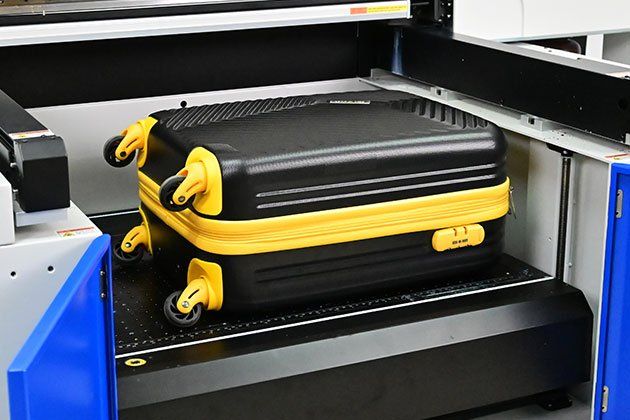

Direct Printing up to 30cm Depth

Accept up to 30cm (11.8”) thick materials pass through with extra-large substrate accommodation capability such as Paddle, Tennis Racket and Hockey sticks.

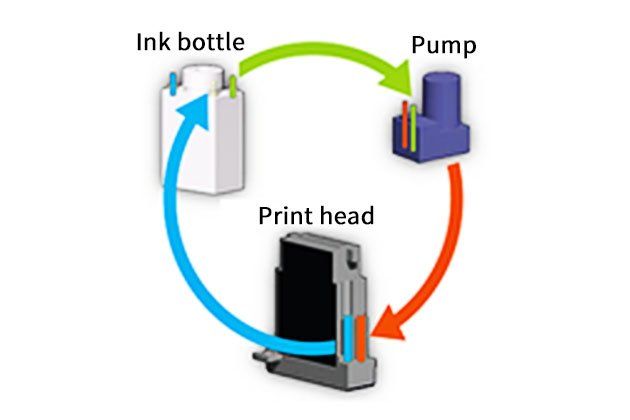

Automated White Ink Circulation

Knowing that white ink settles down easily, GCC specially developed automated white ink circulation regularly performs from ink bottle to print heads to prevent the pigment in white ink from settling. The automated white ink circulation greatly diminish the white ink loss and generate the outstanding printing quality.

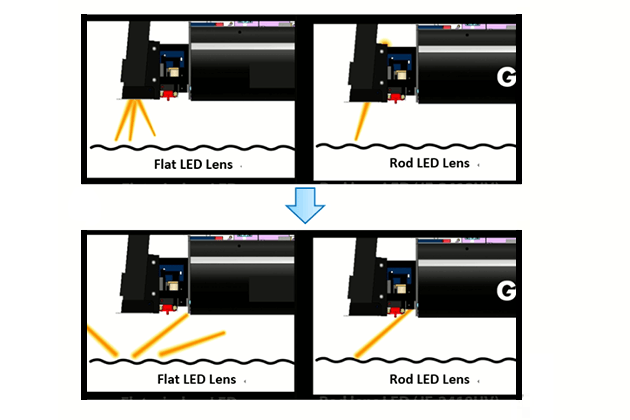

Rod LED Lens

Rod Lensare used on the UV LED lampsto condense LED lights to reduce reflection and damage to print heads and nozzles.

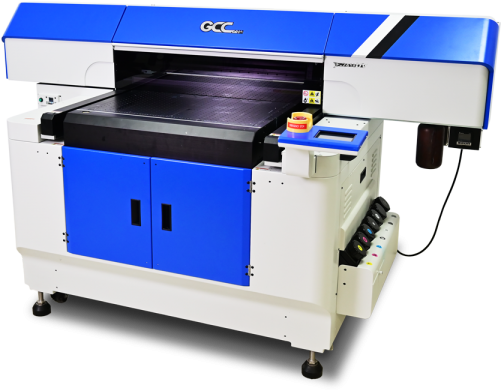

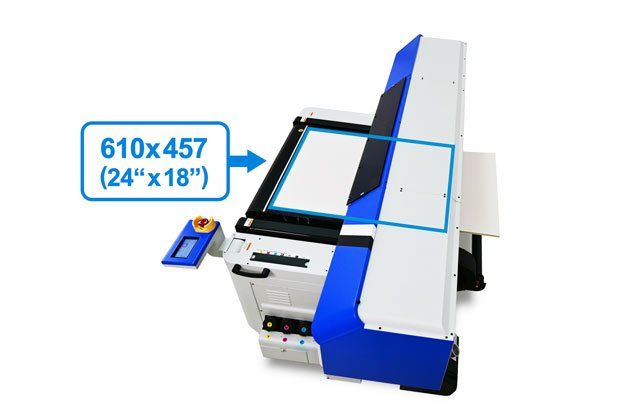

MAX JF-2418 printer size can handle ARCH C (610 x 450 mm / 24”x 18“) in addition to on-demand printing, it is also suitable for digital press embellishment on packaging and standard size of acrylic.

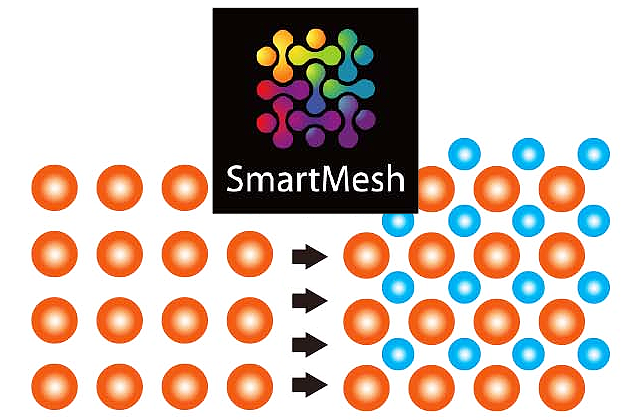

SmartMESHTM  Banding Free Function

Specially designed SmartMESH™ function applies complex algorithm to ink jetting patterns control to create unparalleled graphic designs. The advanced SmartMESH™ technology effectively solves banding issues and greatly improves image quality.
