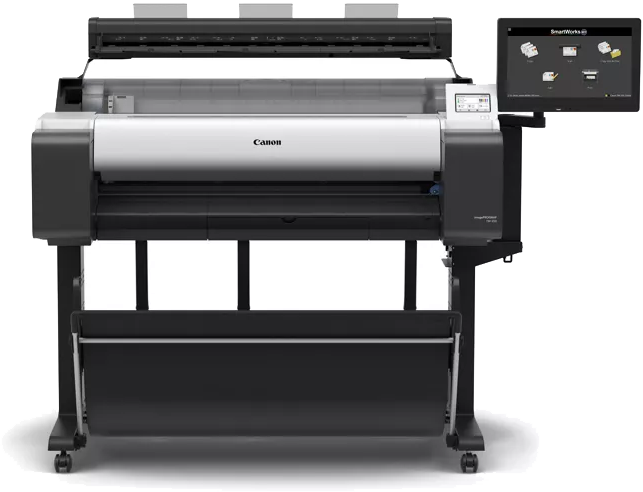

imagePROGRAF TM-350 MFP Z36

Redefining what is possible with a large format printer, the TM Series printers offer enhanced productivity, efficiency, and usability over the previous generation of the imagePROGRAF TM & TA series printers. The imagePROGRAF TM-350 MFP Z36 is great for low-volume users in small spaces printing posters, CAD documents, signage, and more with vivid color reproduction with newly formulated magenta ink & color calibration, along with more advanced and robust scanning capabilities.

  • Print, Scan and Copy
  • 5-Color LUCIA TD Pigment Ink
  • Print Speed of approximately 3.2 ppm
  • Tilt adjustable 4.3" interface screen
  • Colour Calibration
  • Automatic Paper Detection (Type/Length/Width)
  • Fat-top body design with tilt touchscreen

The newly designed imagePROGRAF TM Series has been built for more efficiency and comfort compared to previous models with its new flat-body design, full-frontal operation, and new 4.3” adjustable user interface screen. The user interface screen displays the ink levels and sub-ink tank levels, automatic media detection indicator levels, and more setting prompts all on the home screen! Registered as EPEAT Gold—first in the imagePROGRAF TM Series— and as ENERGY STAR certified, this series is replacing EPS packaging materials with cardboard packaging. Plus, there is a host of creative workflow software included, such as, PosterArtist (Online and Lite versions), Free Layout Plus, Direct Print Plus, Accounting Manager, and more, to help with your everyday personal and business needs!


Included Software

PosterArtist (Online and Lite versions) is an easy to-use, cost-free, template-driven poster creation software. Create professional posters, banners, flyers, and more in just four easy steps!


Free Layout Plus lets you nest, tile, and create custom layouts before printing your files with this print utility. Use the plug-in feature to print directly from Microsoft Office programs.


Direct Print Plus lets you batch print files and monitor the status of more than one imagePROGRAF Series printer. Additional features allow you to easily produce collated sets, drag and drop PDF files, and nest images.



Accounting Manager helps track actual ink and media usage and costs.



Specifications

Size


Ink Colour Set


Number of Nozzles


Hard Drive


Basket


Maximum Print Resolution


Total Number of Nozzles


Media Feed


Media Width



Media Thickness


Media Core Sizes


Maximum Roll Diameter


Printer Memory


Interface



Power Supply


Power Consumption




Operational Environment



Printer Dimensions and Weight


Shipping Dimensions and Weight


Operating System




Options


User replaceable items





Software/Utilities/Applications




What's in the Printer Box?


Z36 Scanner

Scan Speed



Scan Modes




Colour Space


Maximum Resolution


Scan Accuracy


Maximum Scan Width


Maximum Media Width


Maximum Scan Length


Maximum Media Thickness


Digital Imaging Technology







Included Software



Operating Environment


External Power Supply


Power Consumption


Compliance




Scanner Dimensions


Scanner Weight


What's in the Scanner box

36" (914 mm) Wide Printer


5 Colour Pigment Inks: MBK (80ml), BK, C, M, Y (55ml)


Matte Black: 5,120 nozzles BK/C/M/Y: 2,560 nozzles


N/A


Catch Basket


2,400 x 1,200 dpi


Total: 15,360 - MBK: 5,120 nozzles, C, M, Y, BK: 2,560 nozzles each


Roll Feed: One Roll, Top-loading, Front Output


Roll Feed: 8" - 36" (203.2mm - 914mm)

Sheet Feed: 8" - 36" (203.2mm - 914mm)


0” - 0.03” (0.07 mm - 0.8 mm)


2" Core Standard, 2"/3" Core Roll Holder Set (RH2-35) Included


5.9" (150mm)


2GB


Standard (Built-in): USB 2.0 Hi-Speed, 10/100/ 1000Base-T/TX,

Wireless LAN (IEEE 802.11 b/g/n)


AC 100 – 240V (50 – 60 Hz)


Max: Approx. 65W

Standby: Approx. 1.6W

Power Off: Approx. 0.1W


Temperature: 59 – 86 °F (15 – 30 °C)

Relative Humidity: 10 – 80% (Non Condensation)


(With Basket opened) 50.23” x 50.6” x 34.2” , Approx. 137.8 lb


(with stand basket and pallet) 31.5” x 57.5” x 35.9”, 224.9 lbs


Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit),

Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 (64-bit), Macintosh OS v10.12.6-v13x


• 2”/3” Roll Holder Set (RH2-35)


• Ink Tank (300 ml: PFI-320/PFI-321, 130ml: PFI-120/PFI-121)

• Print Head (PF-06)

• Maintenance Cartridge (MC-31)

• Cutter Blade (CT-08)



Accounting Manager, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist, Canon PRINT Inkjet Selphy


Printer, Stand with Stackable Basket, Starter Ink Tanks MBK (130ml), BK, C, M,

Y (90ml), 1 Print Head, Maintenance Cartridge (Installed), 2” Roll Holder with 3”

Adapters, Installation Guide, User Registration Card, One Year Printer Warranty

Statement, Print Head Warranty Statement, Call Center Notice, Media Compatibility Flyer, PosterArtist Web Notice Flyer, Safety and Environmental Information, iWR Service Terms Leaflet, USB port (High Speed), Power Cable and Screw, Gigabit Ethernet (Built-in)

• Color: 3.0” per second at 200dpi

• Mono or B/W: 13” per second at 200dpi


• 16.7 Million Color RGB (24-bit)

• 256-level Grayscale (8-bit)

• Black-and-white (1-bit)


sRGB


600 dpi


+/- 0.1% : +/- 1 pixel


36"


38"


314"


0.003” - 0.04” (0.07 mm - 1.0 mm)


Contact Image Sensor (CIS) Technology (SingleSensor Assembly)

• 24-bit RGB digital color image capture

• 16-bit grayscale image capture

• Panchromatic monochrome and black-and-white

• Bi-directional extra long-life LED light system for optimum object illumination and instant-on scanning capability


SmartWorks MFP Scan-to-Copy/File/Email with Realtime Image Viewer; supports TIFF, JPEG, TIFF G4, and Multi Page PDF


10 - 35 °C, 10 - 90% RH


100-240V, 50-60 Hz


Sleep/Idle: 0.2W/12.4W Scanning Color/Grayscale @ 200 dpi: 22.7W/23.3W


ENERGY STAR®, CB (62368-1), CE, FCC (EMC), Cul/UL, CCC, NOM-019, EAC, C-TICK, VCCI, BIS, EMC +LOA, UL AR, WEEE, REACH, RoHS, EU—Tier 3 of Lot 6


7” x 42” x 10”


17.3 lb. (Approx.)


• Z36 Scanner with Power Cord, USB 3.0 Cable (2 meter)

• 15.6” System Controller

• 3:1 Trident Power Cord

• Power Supply

• Mount for Printer and System Controller

• 2 Paper Edge Guides

• Document Return Guides

• Calibration Target

• Assembly and Startup Guide
