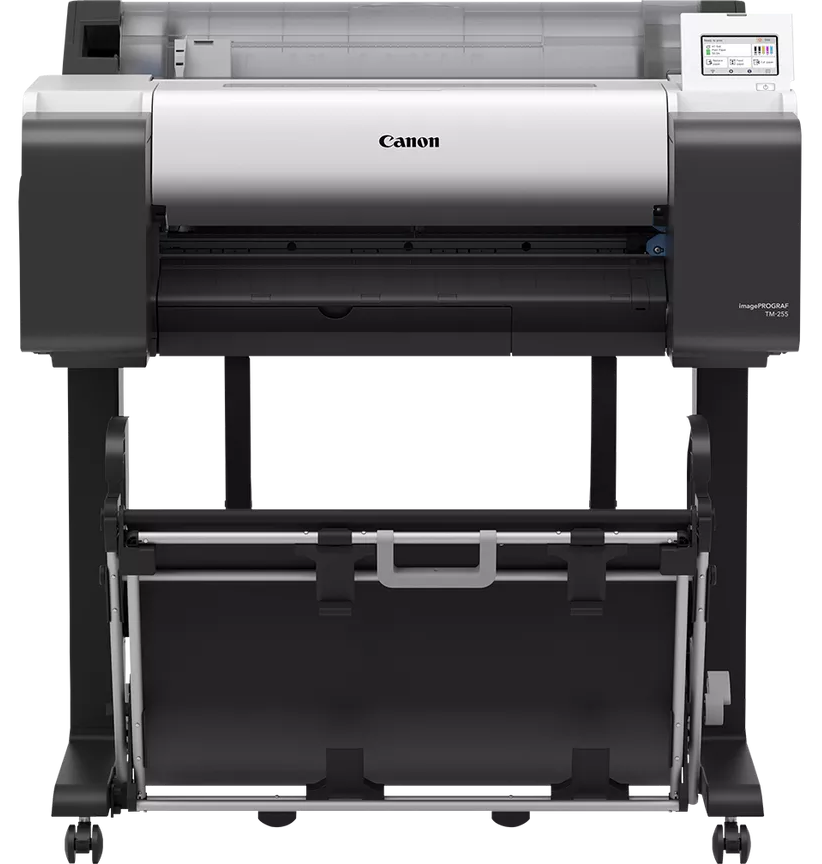

imagePROGRAF TM-255
Redefining what is possible with a large format printer, the TM Series printers offer enhanced productivity, efficiency, and usability over the previous generation of the imagePROGRAF TM & TA series printers.
The imagePROGRAF TM-255 is great for low-volume users in small spaces printing posters, CAD documents, signage, and more with vivid color reproduction with newly formulated magenta ink & colour calibration. The newly designed imagePROGRAF TM Series has been built for more efficiency and comfort compared to previous models with its new flat-body design, full-frontal operation, and new 4.3” adjustable user interface screen. The user interface screen displays the ink levels and sub-ink tank levels, automatic media detection indicator levels, and more setting prompts all on the home screen!
Included Software
PosterArtist (Online and Lite versions) is an easy to-use, cost-free, template-driven poster creation software. Create professional posters, banners, flyers, and more in just four easy steps!
Free Layout Plus lets you nest, tile, and create custom layouts before printing your files with this print utility. Use the plug-in feature to print directly from Microsoft Office programs.
Direct Print Plus lets you batch print files and monitor the status of more than one imagePROGRAF Series printer. Additional features allow you to easily produce collated sets, drag and drop PDF files, and nest images.
Accounting Manager helps track actual ink and media usage and costs.
Size
Ink Colour Set
Number of Nozzles
Hard Drive
Basket
Maximum Print Speed
Maximum Print Speed in seconds
Maximum Print Resolution
Total Number of Nozzles
Media Feed
Media Width
Media Thickness
Media Core Sizes
Maximum Roll Diameter
Interface
Printer Memory
Power Supply
Power Consumption
Printer Dimensions and Weight
Shipping Dimensions and Weight
Operating System
Options
User Replaceable Items
Software/Utilities/Applications
What's in the Box
24" (609mm) Wide Printer
5 Colour Pigment Inks: 300ml/130ml ink tanks MBK/BK/C/M/Y
Matte Black: 5,120 nozzles BK/C/M/Y: 2,560 nozzles
500GB HD
Flat Stackable Basket
2.9 D/minute
20 seconds per D size
2,400 x 1,200 dpi
Total: 15,360 - MBK: 5,120 nozzles, C, M, Y, BK: 2,560 nozzles each
Roll Feed: One Roll, Top-loading, Front Output
Roll Feed: 8" - 24" (203.2mm - 610mm)
Sheet Feed: 8" - 24" (203.2mm - 610mm)
0” - 0.03” (0.07 mm - 0.8 mm)
2" Core Standard, 2"/3" Core Roll Holder Set (RH2-28) Included
5.9" (150mm)
Standard (Built-in): USB 2.0 Hi-Speed, 10/100/ 1000Base-T/TX,
Wireless LAN (IEEE 802.11 b/g/n)
2GB
AC 100 – 240V (50 – 60 Hz)
Max: Approx. 62W
Standby: Approx. 1.6W
Power Off: Approx. 0.1W
41.7” x 38.5” x 34.2”, 117.9 lbs. with Basket Open
37.2” x 45.4” x 35.9”, 209.4 lbs. with stand, basket and pallet
Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit),
Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 (64-bit), Macintosh OS v10.12.6-v13x
2”/3” Roll Holder Set (RH2-28)
• Ink Tank (300 ml: PFI-320/PFI-321, 130ml: PFI-120/PFI-121)
• Print Head (PF-06)
• Maintenance Cartridge (MC-31)
• Cutter Blade (CT-08)
Accounting Manager, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist, Canon PRINT Inkjet Selphy
