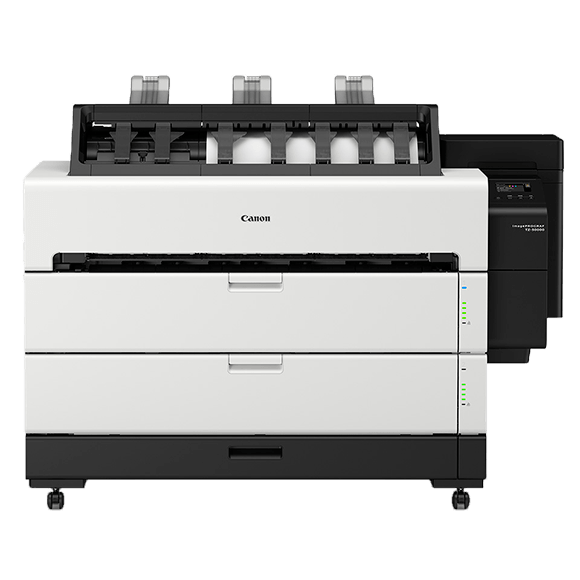

imagePROGRAF TZ-30000
The fastest imagePROGRAF printer. Ever.
A 5-colour, 36-inch aqueous inkjet model built for high productivity and efficiency for the low-end LED and high-end inkjet production CAD, engineering, government and other markets. The TZ-30000 achieves the fastest printing speed of any imagePROGRAF printer to date at up to 4-D size prints per minute. Designed with many "Canon First" technologies built in such as twin carriage motors, an integrated top stacker that utilizes an air flow system and a dual roll media system with intelligent media handling, this printer is a powerful addition to Canon's portfolio of large format printers.
OVERVIEW
The TZ delivers up to 4 D-sized prints per minute and up to 244 D-sized prints per hour via fast processing speeds with the implementation of parallel processing combined with increased carriage and cutter speeds.
SOFTWARE
For flexible printing capabilities, the imagePROGRAF TZ Series can be printed to from CPP Publisher Select. You can manage printer status, ink and media levels and receive warnings when ink is running low or the media is empty.
Printer Type
Number of Nozzles
Nozzle Pitch
OS Compatibility
Standard Interfaces
Ink Droplet Size
Ink Capacity
Ink Type
Color Set
Buffer Ram
Standard Memory
Media Width
Media Thickness
Maximum Roll Print Length
Maximum Media Roll Diameter
Borderless Printing Width
Paper Feed Method
Languages
Noise Level Approx
Physical Dimensions
Power Source
Power Consumption
Operating Environment
User-replaceable items
Software Included
5-Colour 36-inch Printer
Total: 15,360 - MBK: 5,120 nozzles, C, M, Y, BK: 2,560 nozzles each
1,200 dpi Non-firing nozzle detection and compensation
Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
MacOS 10.12.6 and later
USB 2.0 High-Speed
10/100/1000 Base-T/TX
5 picoliter
330 ml or 700 ml
Pigment Ink
Pigment: Matte Black, Black, Cyan, Magenta, Yellow
128 GB HD (2 GB Physical)
500 GB HD
Roll Feed: 8"-36"(203.2mm –914.4mm)
Cut Sheet: 8"-36"(203.2 mm –914.4mm)
0.07-0.8mm
Roll Feed - 59' (18 meters)
6.9 (175mm)
All sizes
Roll Feed: Two Roll, Front-loading, Cut Sheet: Front-loading
SGRaster, HP-GL/2, HP RTL, PDF, JPEG
Operation: 52 dB (A)
Standby: 35 dB (A) or less
Acoustic Power: 7.0 Bels
47" x 61" x 38" Approx. 456 lb.
AC100-240V (50-60Hz)
Maximum: 157W or less
Standby 2.0W or less
Power Off: 0.3W or less (Compliant with Executive Order)
Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation)
Print Head (PF-06) Maintenance Cartridge (MC-30)
Ink Tanks (PFI-340/PFI-740)
Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus, Canon Printer Driver, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, CPP Publisher Select, CPP Driver Select
