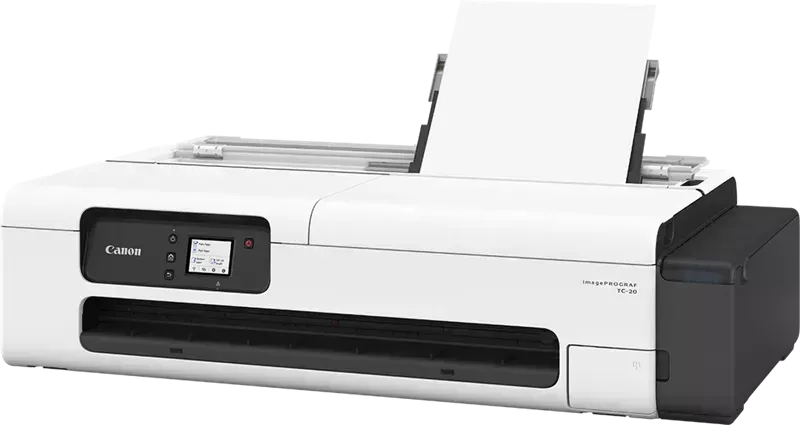

imagePROGRAF TC-20

Get cost effective, professional prints with Canon imagePROGRAF TC-20, a simple-to-use 24" desktop printer, in small offices, retail shops, education or even work from home.

Boost efficiency with highly sustainable and small footprint device. Operate seamlessly with easy paper setting and hybrid support to switch easily between office and home with software compatibility. Quickly and easily print vibrant, high-quality material from small offices, retail shops, schools or even work from home.

Overview

Boost efficiency with highly sustainable and small footprint device

Operate seamlessly with easy paper setting and hybrid support to switch easily between office and home with software compatibility. Quickly and easily print vibrant, high-quality material from small offices, retail shops, schools or even work from home with a compact, EPEAT Gold rated device.


Affordable high quality

Make most of the space you have in small offices, retail shops, education or work from home, with high-quality pigment ink and simple-to-use desktop printer without price tag, that can sit unobtrusively on your desk or shelves.


Easy Operation

Take the hassle out of print with this full front access device. A shaftless roll holder makes it easy to set up roll paper, while built-in auto-sheet feeder keeps your prints continuous without intervention in switching paper.


Hybrid support

Switch easily between home and office printing. The imagePROGRAF TC-20 shares software with your office-based imagePROGRAF devices, making hybrid working even easier.


Green at heart

Meet your sustainability goals with easily recyclable plastic 70ml ink bottles to minimize replacement, reduced packaging.


4-colour

New black, cyan, magenta and yellow pigment ink


70ml plastic ink bottle

Easily recyclable bottles with low TCO


Built-in Auto sheet feeder

Continuous printing between roll paper and cut sheets




Specifications

Printer Type


Number of Nozzles


Nozzle Pitch


OS Compatibility




Standard Interfaces




Ink Capacity


Ink Droplet Size


Color Set


Buffer Ram


Media Width



Media Thickness


Maximum Media Roll Diameter


Paper Feed Method



Languages


Noise Level Approx




Physical Dimensions



Weight


Power Source


Power Consumption




Operating Environment



User-replaceable items


What's in the Box


4-Color 24-inch Printer


Total: 4,352 - MBK: 1,280 nozzles,  C, M, Y: 1,024 nozzles each


1,200 dpi Non-firing nozzle detection and compensation


32-bit: Windows® 7, 8.1, 10
64-bit: Windows® 7, 8.1, 10/11, Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Mac: macOS X v10.14.6-v12.x


USB 2.0 High-Speed
10/100 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)


70ml per color


Pigment Ink


Pigment: Black, Cyan, Magenta, Yellow


1 GB Physical


Cut Sheet - 8.3"- 12"

Roll Feed - 12" - 24"


0.08-0.28mm


4.3 (110mm)


Roll Feed: One Roll, Top-loading, Front Output
Cut Sheet: Automatic Sheet Feeder, Top Loading, Front Output


SGRaster


Operation: 42.5 dB (A)

Standby: 35 dB (A) or less

Acoustic Power: 6 Bels


ASF Opened: 16" x 38" x 22" (H x W x D)
ASF Closed: 10" x 38" x 22" (H x W x D)


approx. 71 lbs (no inks, print head included)


AC100-240V (50-60Hz)


Maximum: 28W or less

Standby 1.8W or less

Power Off: 0.3W or less (Compliant with Executive Order)


Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation)


Print Head (PF-08),  Maintenance Cartridge (MC-32), Ink Tanks (PFI-050)


  • imagePROGRAF TC-20
  • US AC Power Cable
  • Maintenance Cartridge (Installed)
  • 4 Ink Tanks (70 ml each: BK/C/M/Y)
  • Ethernet Card (built-in)
  • USB 2.0 High-speed Interface
  • Installation Guide
  • User Registration Card
  • Media Flyer
  • Warranty Statement
