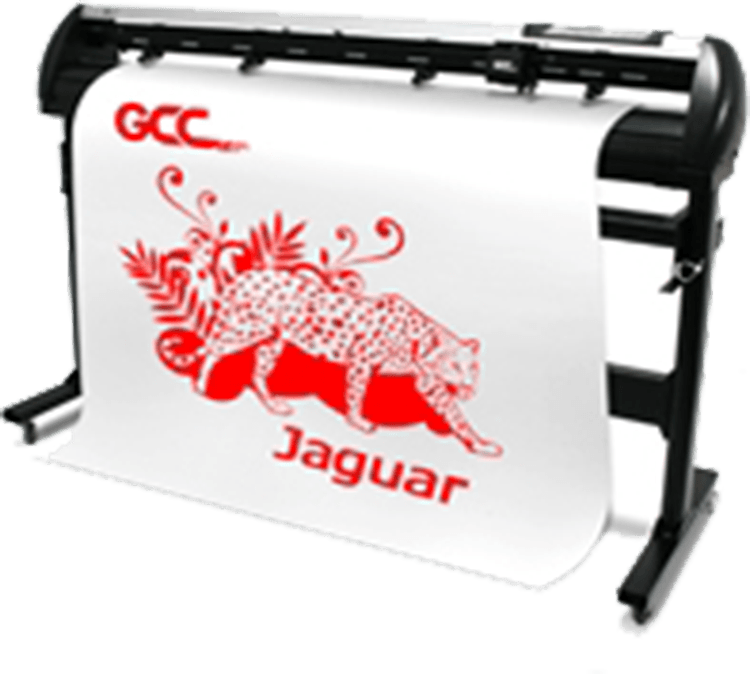

Jaguar V Vinyl Cutter

Jaguar V LX Cutters

The all-new Jaguar V series of vinyl cutting plotters includes the Jaguar V models (J5-61, J5-101, J5-160 and J5-132), and Jaguar V LX models (J5-61LX, J5-101LX, J5-132LX, J5-160LX and J5-183LX) . With intuitive features to meet the demands of today's professionals, the Jaguar V series represents the apex of vinyl cutting plotter technology.

FEATURES

Enhanced AAS II Contour Cutting System (Available on EX II LX Model)

The Jaguar V series features a standard Automatic-Aligning System (AAS II) to guarantee precise contour cutting by automatically detecting the registration marks on digitally produced images.

Functions include:

Section Cutting

Section cutting divides the long plot data into sectional output jobs to gain higher cutting quality and increase precision. GCC Jaguar V series scan registration mark of section 1 and cut the plot data in section 1, and then it scan registration mark of section 2 and cut the plot data in section 2, and so on.

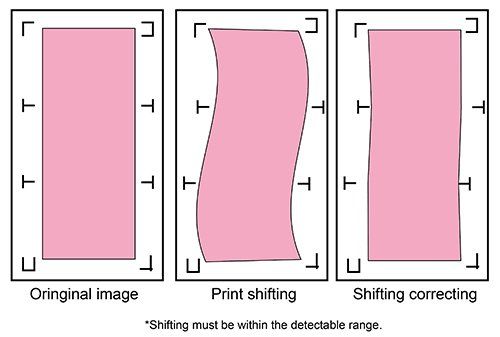

Segmental Positioning (LX Model Only)

Jaguar V series features Segmental Positioning function which can correct the crooked print. Printed image may be crooked because the printing shifts, and Segmental Positioning function can scan the registration marks one by one automatically to calibrate shift.

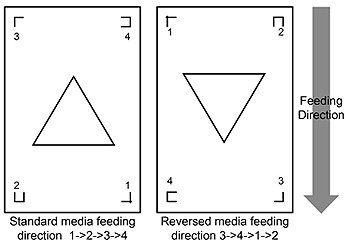

Auto Rotation

New registration marks defined to detect material feeding direction. Jaguar V detects the unique registration marks to distinguish material feeding direction and rotate cutting content automatically. You don’t need to rotate the material by yourself.
