SOL PRO 3D SCANNER

Calibrate, scan, mesh - with SOL PRO all processes are automated

  • SOL PRO is a lightweight desktop 3D scanner for small and mid-size objects (20 to 170 mm)
  • Scan in high accuracy up to 0.05 mm
  • Includes specialized software
  • Automated calibration and meshing
  • Options for scanning dark surfaces and unsteady objects

High accuracy automated 3D scanner

SOL PRO 3D scanner from Scan Dimension is a high accuracy desktop scanner for small and mid-sized objects.


This versatile, yet easily operated, scanner integrates seamlessly into any 3D workflow where the precision and quality make it a perfect partner for quality assurance, product inspection, prototyping, and a qualified addition to 3D printing tasks.


The intuitive software delivers finished 3D scanning results. Aligning up to 5 scanning passes and meshing are fully automated. The software includes innovative options for scanning dark surfaces and unsteady objects.


View the 3D scanned models in different renderings and export to various third-party 3D software for editing, measuring or 3D printing.


The scanner uses a combination of laser triangulation and white light technology. Texture and colors are captured with a camera with an 8 MP optically compensated resolution.

Brochure
"Just Brilliant. I was able to scan an incredibly small model head with minute details like a clef chin and it was visible in a zoom! Super happy. As reference this was a 1/12 scale human head."

            – Austin, Texas



“SOL is a great 3D scanner that easily competes with multi-thousand-dollar scanners that we have here at the makerspace.”

          – David Dalton, Hammerspace

              Community Workshop


"I have access to several mid-price scanning options and several very expensive units. For the price, this unit performed very well on a resin-cast gnome that I've used for a scan target in other systems. The first scan came out perfectly and with a watertight STL file ready to print."

           – Maker in Texas


“I learned how to use this scanner today and it is freakin' awesome! We only did a single scan, but I will definitely be back to do more!!!”

           – Hobbyist at Make Salt Lake

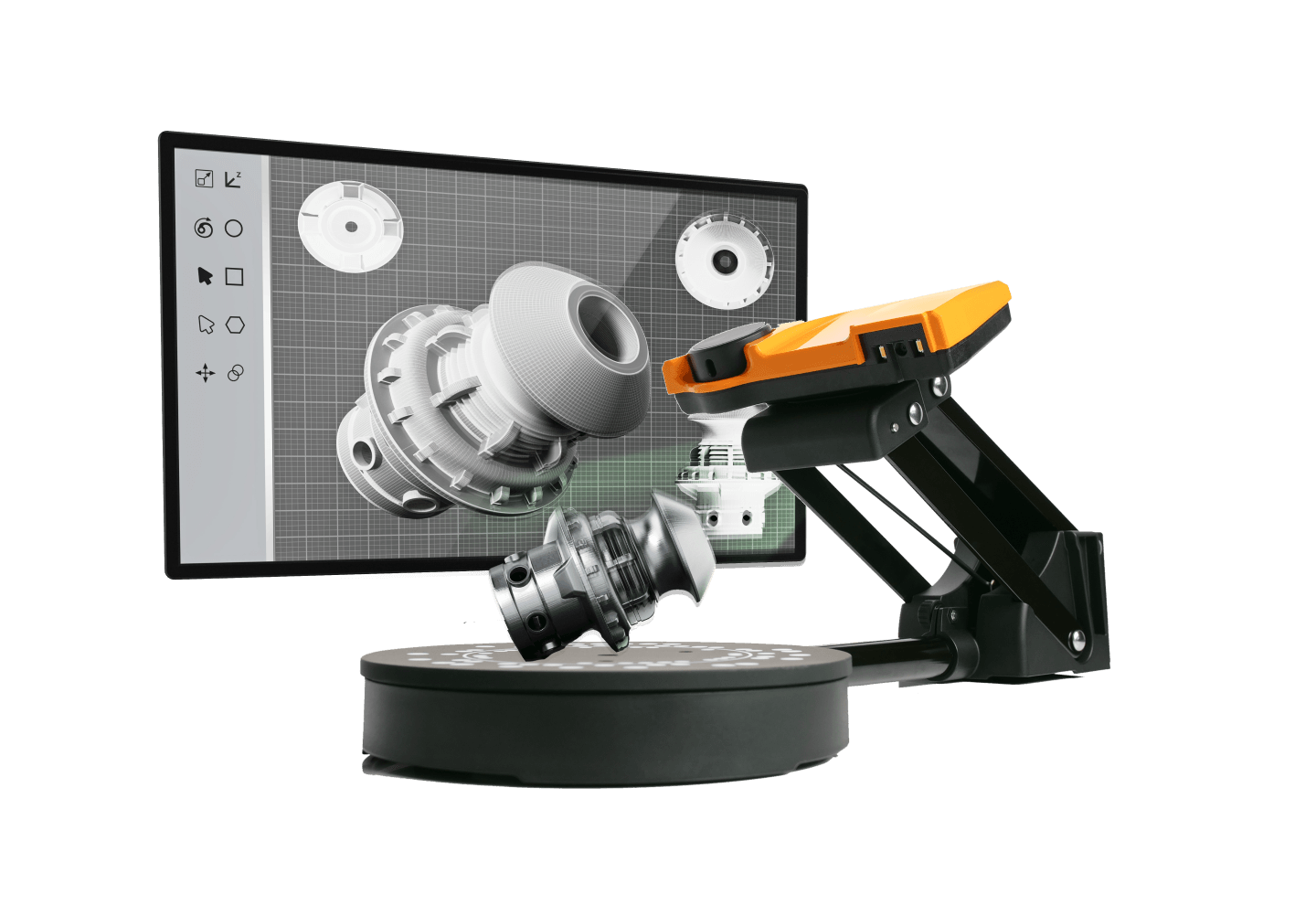

Scan to Model

Creating an accurate 3D model of a complex object can be difficult. SOL helps jump-start your modeling by giving you accurately sized replica objects. Then, these can then be incorporate into your project, or used as a reference object.

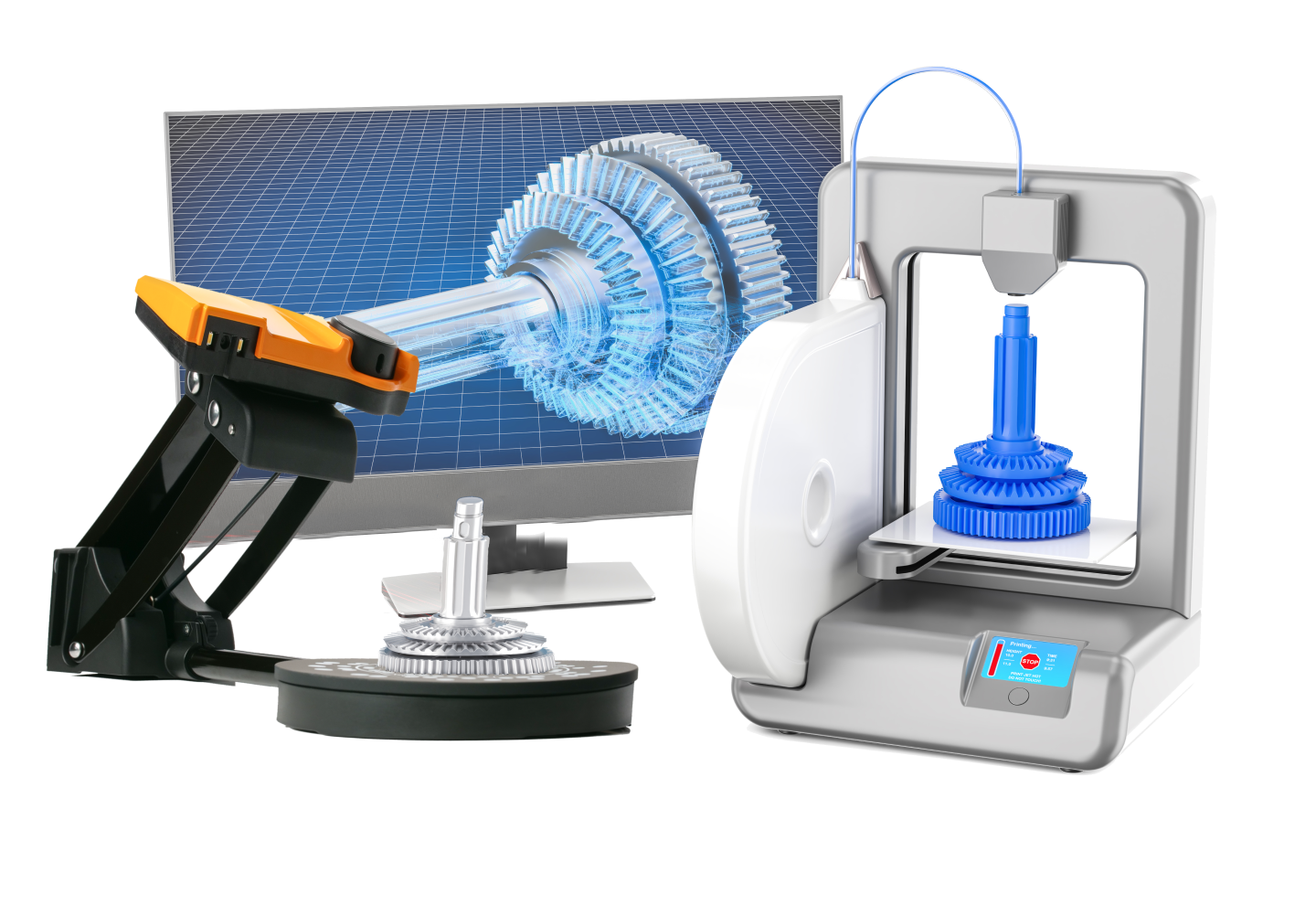

Scan to Print

Reproducing an object can be time-consuming, tedious, and error-prone. The SOL 3D scanner and software allows you to create a replica of objects easily. Using your preferred printing software, easily scale your scans up or down.

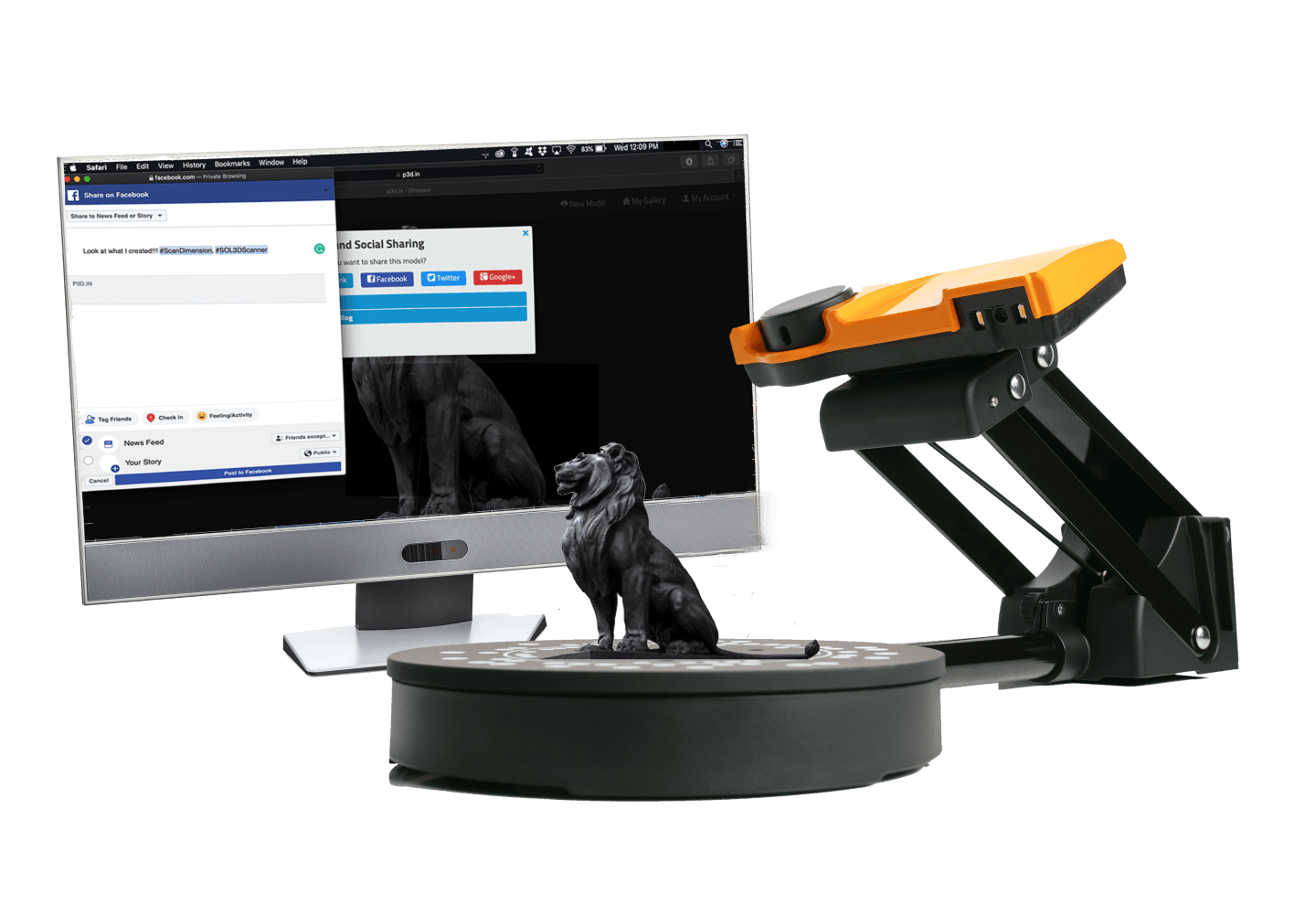

Scan to Share

In the past, sharing a 3D representation of something has been challenging. The SOL 3D scanner and software make this easy, especially with the free cloud storage from our partner, P3D.in, provided free with the SOL 3D scanner.
Specifications
  • Accuracy up to 0.05mm / 0.002 inches (in near scanner position)
  • Point Distance >0.26mm
  • Scans objects measuring approx. 20 – 170 mm (0.8 – 6.7 in) in height and diameter

          - Best results for high accuracy scans are for objects measuring up to 100 mm (4 in) in height and diameter

  • Automatic calibration and meshing
  • Automatic global alignment of up to 5 scanning passes
  • Option for scanning dark or partially dark surfaces
  • Option for scanning unsteady objects
  • Process time for complete 360° scanning pass (depending on computer hardware and object complexity):

         -Normal scanning mode: 15 min.

         -Turbo scanning mode: 8 min.

  • Included software bundle for downloading:

         -SOL PRO Creator for scanning

         -SOL PRO Viewer for viewing and exporting

  • Export as OBJ, STL, PLY, DAE, or XYZ to edit in third-party software
  • Automatic software updates (requires registration)
  • Run a quick and automated process upon request to maintain the highest accuracy in high accuracy scanning mode
  • Software is available in English, German, French, Italian, Spanish, Russian, Japanese, and Chinese
  • Max. weight on the turntable: 2 kg (4.4 lbs)
  • Black-out tent for efficient elimination of unwanted light
  • Tent dimensions (LxWxH): 62x35×32 cm (24.4×13.8×12.6 in)
  • Box dimensions (LxWxH): 41x15×30 cm (16.1×5.9×11.8 in)

System Requirements

Supported operating systems



Graphics card




Recommended hardware



Minimum hardware



Power input


Internet

Windows 10 64-bit (x64)
MacOS Mojave, or newer


Minimum 2 GB memory, must support OpenGL 3.3 or higher
(Support for OpenCL 1.2 or higher is recommended)


2.4 GHz processor, 8 cores (16 logical processors),
32 GB RAM, 100 GB free disk space (system drive)


2.9 GHz processor, 4 cores (8 logical processors),
16 GB RAM, 25 GB free disk space (system drive)


USB 3.0 port (maximum 800 mA) or powered USB 3.0 hub


Required

Whats in the Box?
  • SOL PRO 3D scanner
  • Turntable
  • Scanner stand
  • USB 3.0 cable
  • Blackout tent
  • Cylindrical target for high accuracy profiling
  • Software available for download: SOL PRO Creator and SOL PRO Viewer
  • Easy upload to Sketchfab
