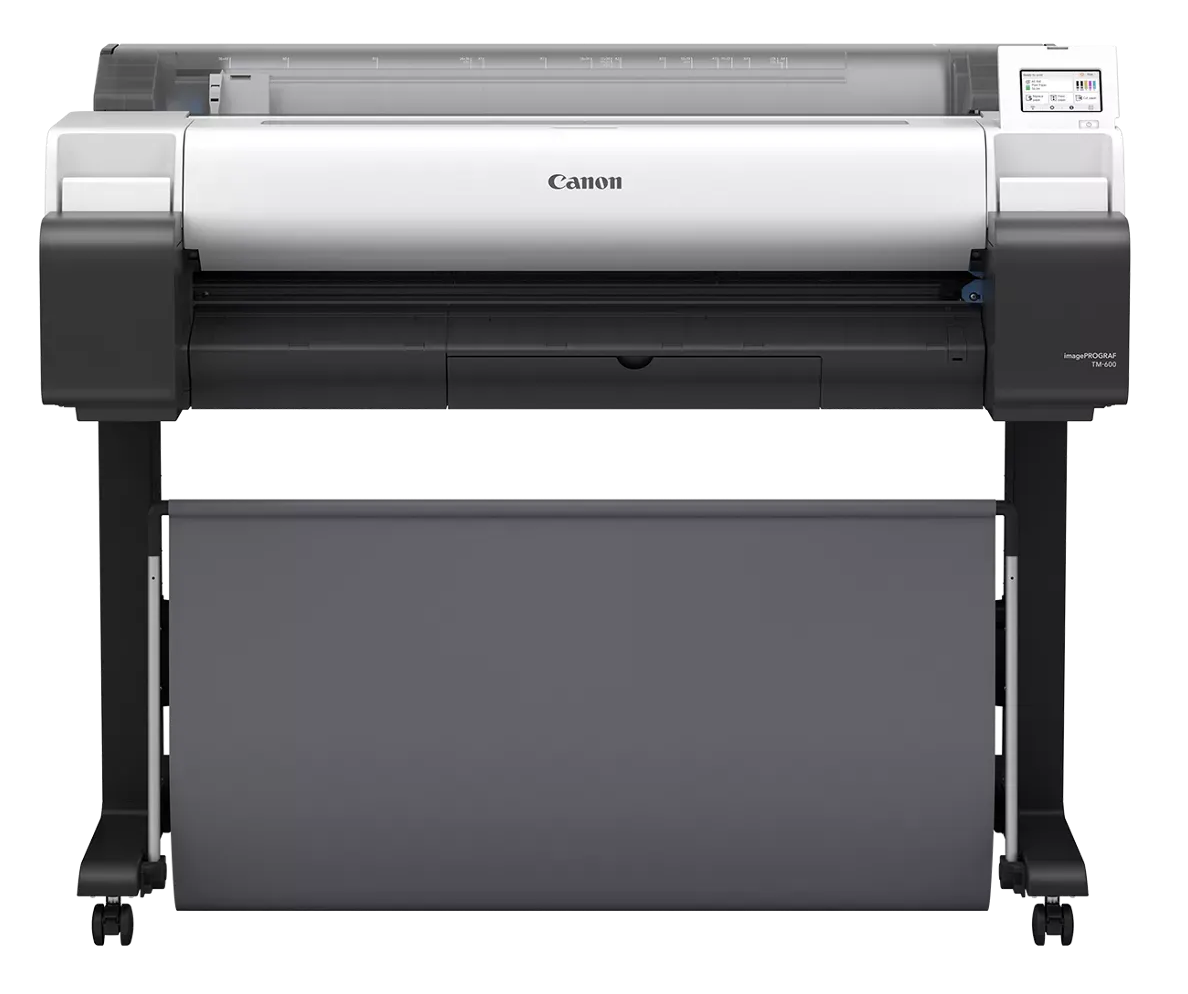

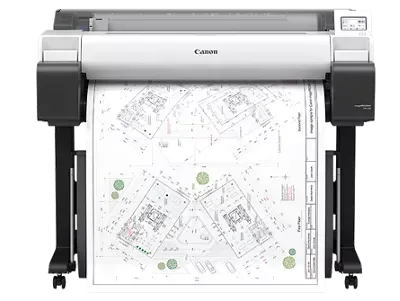

imagePROGRAF TM-600

This 36” technical documents large-format printer delivers enhanced productivity for compact spaces using 5-color LUCIA TD pigment ink and print speeds of up to 2.7 ppm. It features deep black and line clarity reproduction with the newly re-formulated matte black ink, built-in color calibration, and automatic paper detection. Designed for optimal comfort, the space-saving flat-top body includes a 4.3” tilt touchscreen for full-frontal operation. In addition to being EPEAT 1.0 Gold registered and ENERGY STAR certified, the TM Series has eliminated EPS packaging and increased the recycled material in the chassis. This printer comes standard with free powerful creative workflow software such as Direct Print Plus, PosterArtist, and Free Layout Plus.

  • 36" (914 mm) print width
  • Up to 2.7 Arch D per minute
  • 5 Colour Lucia TD pigment ink with newly formulated Matte Black ink
  • Compact design with tilt touchscreen
  • Flat body design
  • Automatic paper detection
  • Security features to help protect your work
  • EPEAT Gold and Energy Star certified

Key Features

Lucia TD Ink System

The matte black ink is designed to deliver outstanding black color reproduction suitable for a wide range of markets and applications. The use of pigment ink for all colors helps to ensure prints are resistant to fading and easy to handle in outdoor environments.

Improved Line Clarity

Image processing improvements and LUCIA TD ink help to enhance AEC documents and posters with a large color gamut and improved text and line quality. This makes output more crisp, defined, and clear.

Colour Calibration

Available in the imagePROGRAF TM Series, the ability to calibrate your printer helps ensure your output is color consistent over time and across multiple TM Series devices.

Speed

At 2.4 D-size (24” x 36”) prints a minute, this is a great entry-level CAD production device! Easily print technical documents and low-coverage posters at fast speeds with this user-friendly device.

Button

Security Features

The TM Series offers enhanced security features to help protect against unauthorized printing, device access, and network intrusions or data tampering

Ease of Use

Boost productivity with full front access to ink, media, and cartridges and easily monitor settings on the 4.3” touchscreen

Media Handling

Load the media roll onto the spindle and slide it into the device. Once manually fed, the printer automatically detects media type, width, & estimates the amount of the roll, all shown on the display panel.

Lucia TD Ink System

The matte black ink is designed to deliver outstanding black color reproduction suitable for a wide range of markets and applications. The use of pigment ink for all colors helps to ensure prints are resistant to fading and easy to handle in outdoor environments.

Improved Line Clarity

Image processing improvements and LUCIA TD ink help to enhance AEC documents and posters with a large color gamut and improved text and line quality. This makes output more crisp, defined, and clear.

Specifications

Size


Printhead


Ink Type


Number of Nozzles


Printer RAM


Media Feed


Maximum Print Length (varies according to OS and the application)


Media Width



Media Thickness


Media Cutter


Maximum Roll Diameter


Media Core Sizes


Media Output


Printing Software Utilities




Operating System



Print Language


Interface



Power Supply


Power Consumption




Certifications


Operational Environment



Printer Dimensions and Weight


Package Dimensions and Weight


Options







What's in the Box

36" (914mm) Wide Printer


PF-06


5 Colour Pigment Inks: MBK (80ml), BK, C, M, Y (55ml)


Matte Black: 5,120 nozzles  BK/C/M/Y: 2,560 nozzles


2 GB


Roll Feed: One Roll, Top-loading, Front Output


Roll Media: 59'

Cut Sheet: 5.2'



Roll Feed: 8” – 36” (203.2 mm – 917 mm)

Cut Sheet: 8” – 36” (203.2 mm – 917 mm)


0” - 0.03” (0.07 mm - 0.8 mm)


Automatic horizontal cutting (Rotary cutter): standard


5.9” (150 mm)


2” Core Standard. 2”/3” Core Roll Holder Set (RH2-28) Optional.


Catch Basket (optional), Desktop Basket (optional)


Accounting Manager, Device Management Console, Direct Print Plus, Free Layout Plus, Driver, Media Configuration Tool, PosterArtist, AirPrint®,

Mopria® Print Service


Windows 7, 8.1, 10 (32/64-bit), Windows 11 (64-bit), Windows Server 2008R2,

2012, 2012R2, 2016, 2019, 2022 (64-bit), Macintosh OS v10.12.6 - v13x


SGRaster, HP-GL/2, HP RTL, JPEG, CALS G4


Standard (Built-in): USB 2.0 Hi-Speed, 10/100/1000Base-T/TX,

Wireless LAN (IEEE 802.11 b/g /n)


AC 100 – 240V (50 – 60 Hz)


Max: Approx. 65W

Standby: Approx. 1.6W

Power Off: Approx. 0.06W


ENERGY STAR® certified, EPEAT 1.0 Gold, Mporia® Certified


Temperature: 59 – 86 °F (15 – 30 °C)

Relative Humidity: 10 – 80% (Non Condensation)


(Without basket open) 50.6” x 34.2” x 41.0”, 132.3 lbs.


(Main unit with pallet) 57.6” x 35.9” x 30.3”; 222.7 lbs.


2”/3” Roll Holder Set (RH2-35)

User-Replaceable Items

• Ink Tank (PFI-030/PFI-031/PFI-033)

• Printhead (PF-06)

• Maintenance Cartridge (MC-31)

• Cutter Blade (CT-08)


Printer, Stand with Catch Basket, Starter Ink Tanks BK/C/M/Y (55ml) MBK (80ml),

1 Printhead, Maintenance Cartridge (Installed), 2” Roll Holder, Installation Guide,

User Registration Card, Printer Warranty Statement, Printhead Warranty Statement, Call Center Notice, Media Compatibility Flyer, PosterArtist Web Notice Flyer, Safety and Environmental Information, iWR Service Terms Leaflet, USB port (High Speed), Power Cable and Screw, Gigabit Ethernet (Built-in)

Call us at 800-567-3222 or contact us for your free quote.
