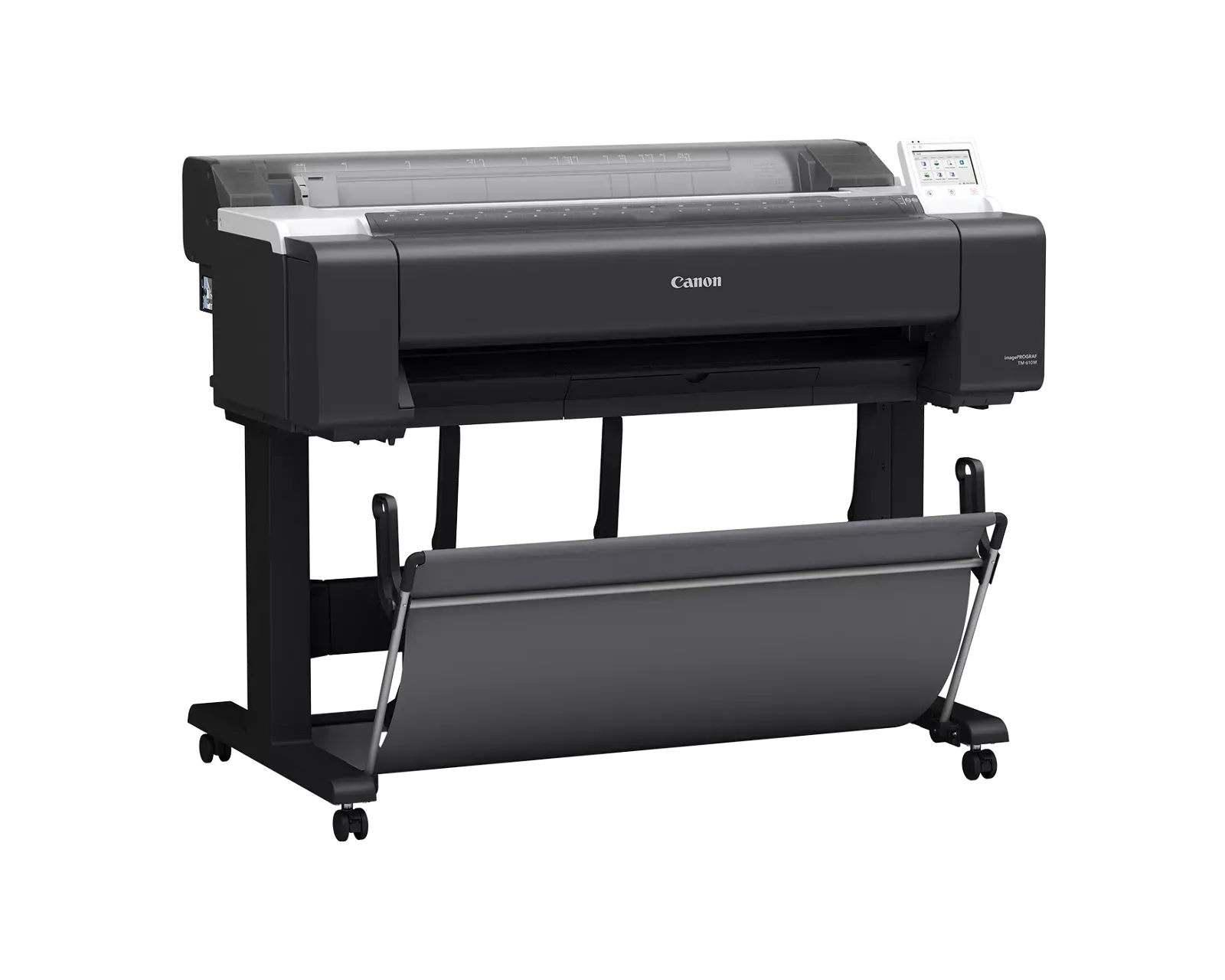

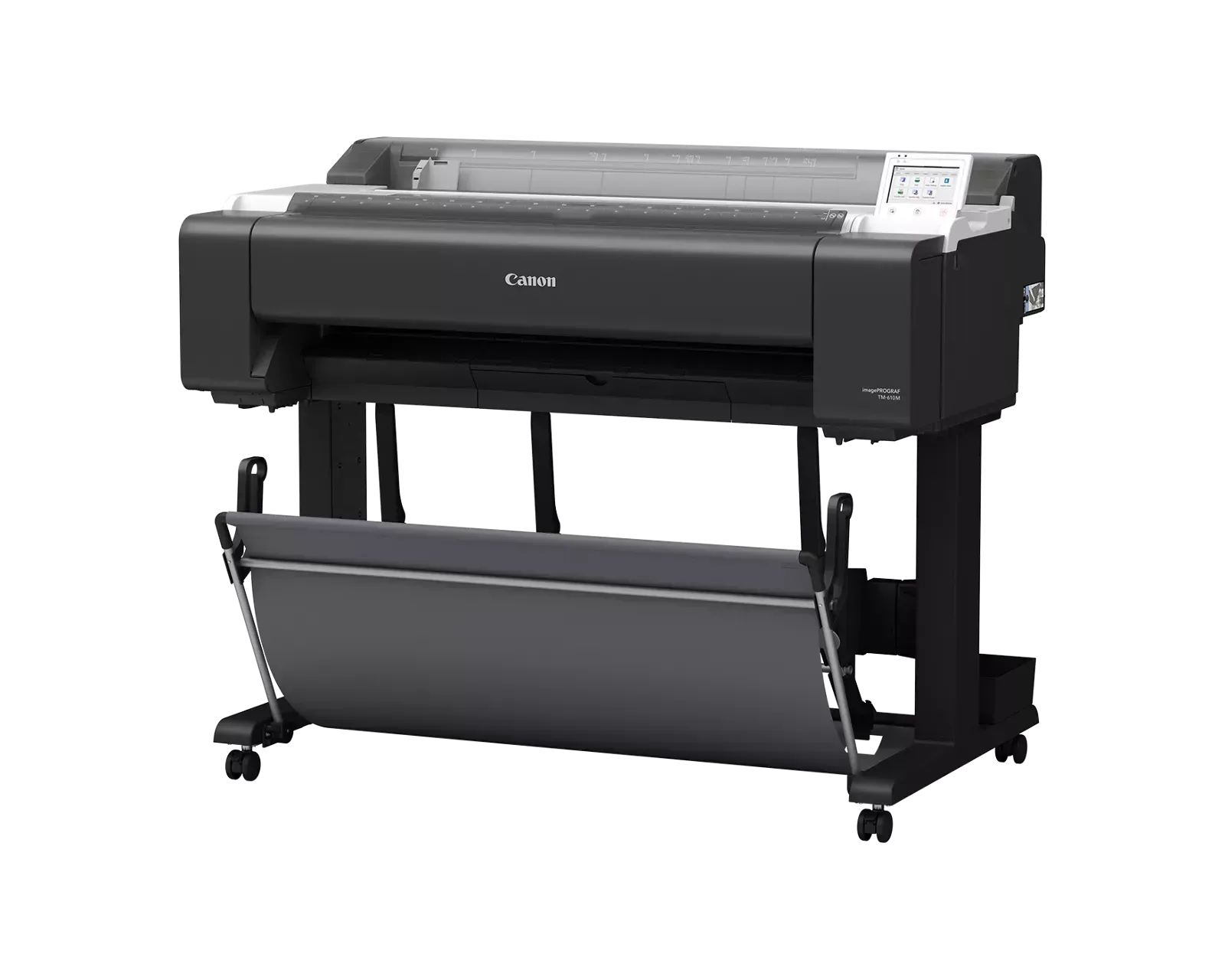

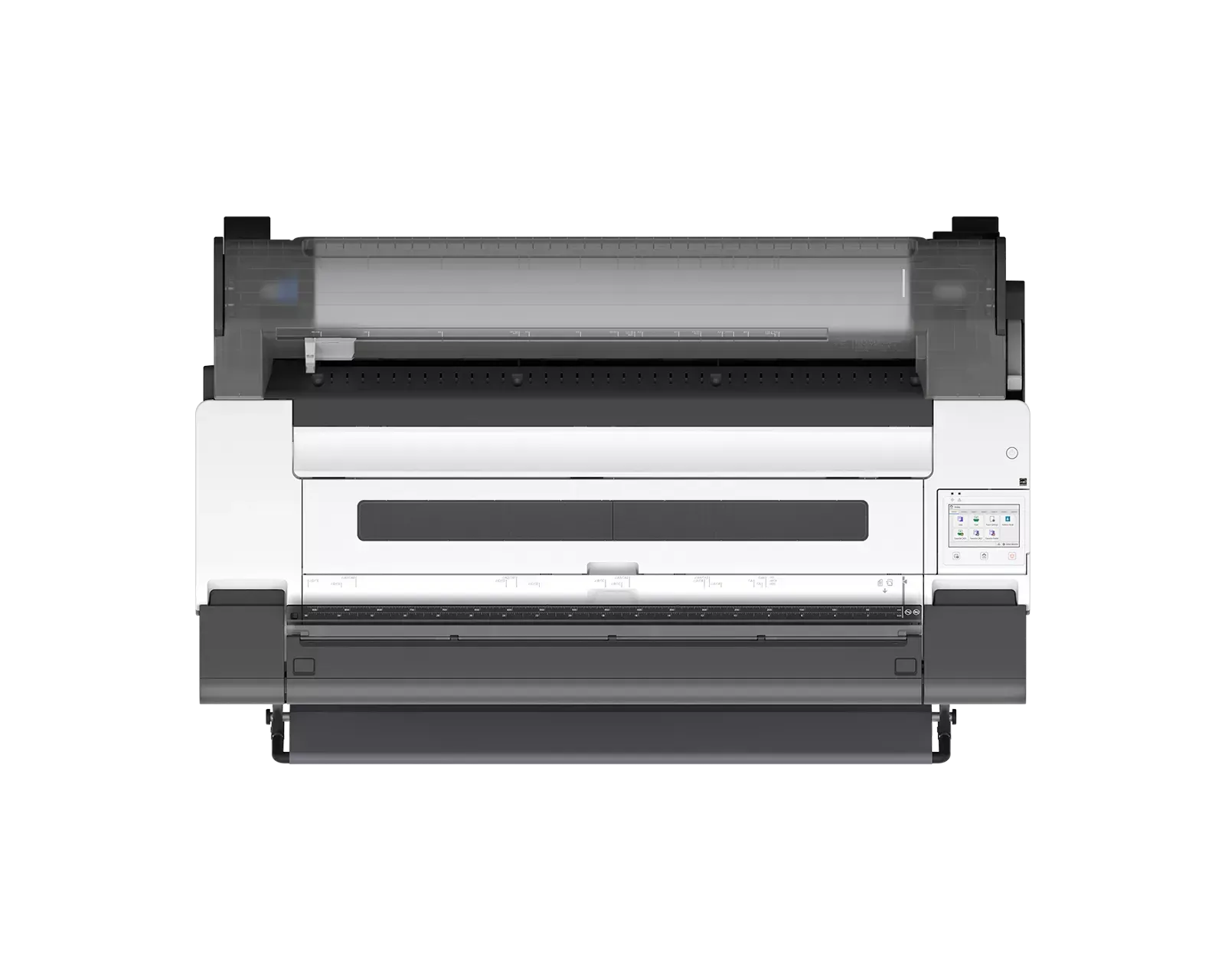

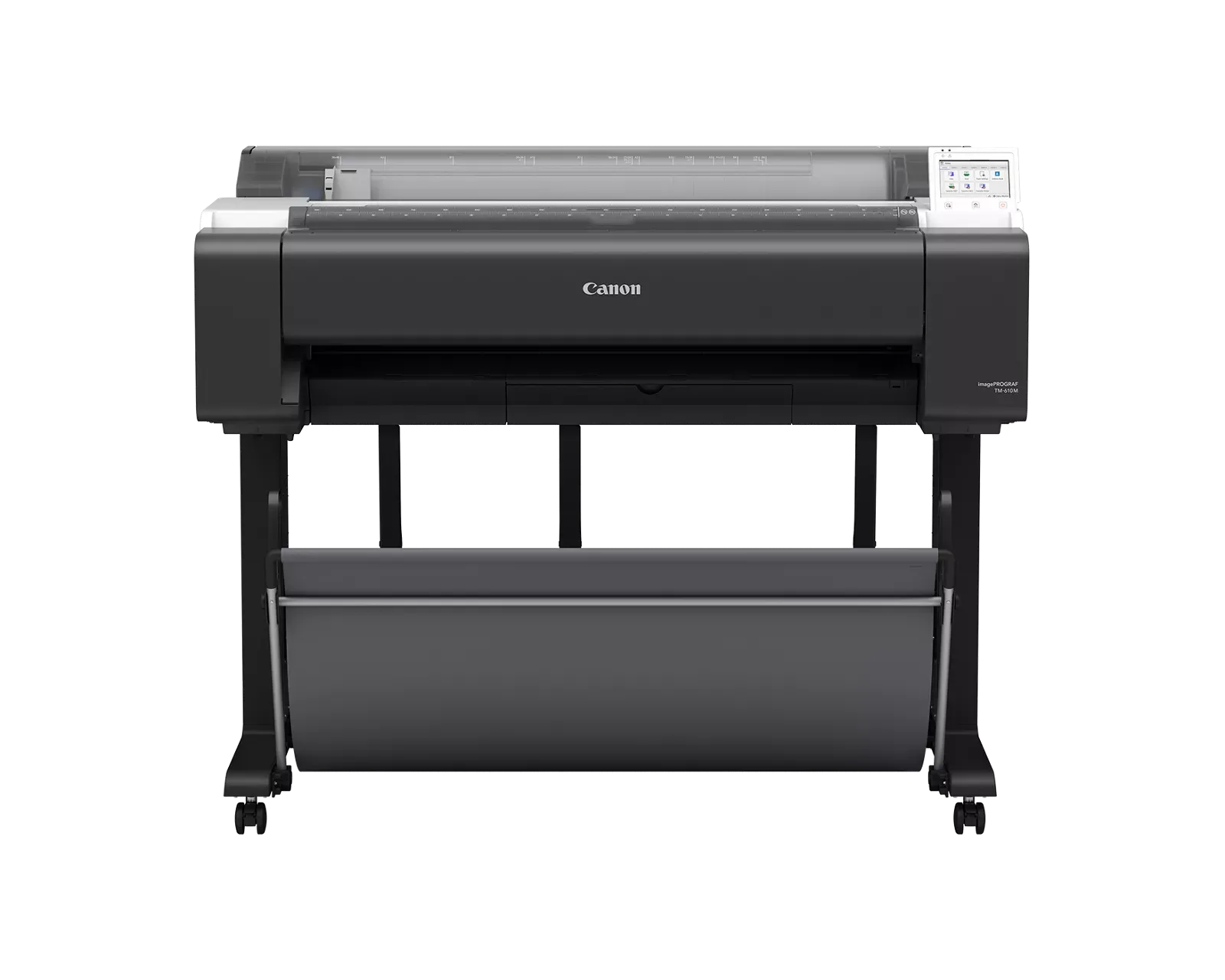

imagePROGRAF TM-610M

This 36” technical documents large-format printer delivers enhanced productivity for compact spaces using 5-color LUCIA TD pigment ink and print speeds of up to 3.2 ppm. It features deep black and line clarity reproduction with the newly re-formulated matte black ink, built-in color calibration, and automatic paper detection. Designed for optimal comfort, the space-saving flat-top body includes an integrated scanner - the first integrated large format scanner for imagePROGRAF - and 5” tilt touchscreen with customizable UI for full-frontal operation. In addition to being EPEAT 1.0 Gold registered and ENERGY STAR certified, the TM Series has eliminated EPS packaging and increased the recycled material in the chassis. This printer comes standard with free powerful creative workflow software such as Direct Print Plus, PosterArtist, and Free Layout Plus.

BROCHURE
  • 36" (914 mm) print width
  • Up to 3.2 Arch D per minute
  • New Integrated Scanner with Customizable UI to Streamline Workflows
  • 5 Colour Lucia TD pigment ink with newly formulated Matte Black ink
  • Compact design with tilt touchscreen
  • Flat body design
  • Automatic paper detection
  • Security features to help protect your work
  • EPEAT Gold and Energy Star certified

Key Features

Integrated Scanner

Streamline workflows with the compact, integrated scanner. The flat top enables easy high-volume feeding up to 10 ips monochrome & 5 ips color. Customize the 5” tilt touchscreen UI as needed.

Lucia TD Ink System

The matte black ink is designed to deliver outstanding black color reproduction suitable for a wide range of markets and applications. The use of pigment ink for all colors helps to ensure prints are resistant to fading and easy to handle in outdoor environments.

Improved Line Clarity

Image processing improvements and LUCIA TD ink help to enhance AEC documents and posters with a large color gamut and improved text and line quality. This makes output more crisp, defined, and clear.

Colour Calibration

Available in the imagePROGRAF TM Series, the ability to calibrate your printer helps ensure your output is color consistent over time and across multiple TM Series devices.

Speed

At 3.2 D-size (24” x 36”) prints a minute, this is a great entry to mid-level CAD production device! Easily print technical documents at fast speeds with this user-friendly device.

Button

Security Features

The TM Series offers enhanced security features to help protect against unauthorized printing, device access, and network intrusions or data tampering

Ease of Use

Boost productivity with full front access to ink, media, and cartridges and easily monitor settings on the 4.3” touchscreen

Media Handling

Load the media roll onto the spindle and slide it into the device. Once manually fed, the printer automatically detects media type, width, & estimates the amount of the roll, all shown on the display panel.

Integrated Scanner

Streamline workflows with the compact, integrated scanner. The flat top enables easy high-volume feeding up to 10 ips monochrome & 5 ips color. Customize the 5” tilt touchscreen UI as needed.

Lucia TD Ink System

The matte black ink is designed to deliver outstanding black color reproduction suitable for a wide range of markets and applications. The use of pigment ink for all colors helps to ensure prints are resistant to fading and easy to handle in outdoor environments.

Specifications

Size


Printhead


Ink Type



Ink Tank







Number of Nozzles


Printer RAM


Media Feed


Maximum Print Length (varies according to OS and the application)


Media Width



Media Thickness


Media Cutter


Maximum Roll Diameter


Media Core Sizes


Media Output


Printing Software Utilities




Operating System



Print Language


Interface



Power Supply


Power Consumption




Certifications


Operational Environment



Printer Dimensions and Weight


Package Dimensions and Weight


Options







What's in the Box

36" (914mm) Wide Printer


PF-06


Pigment: Matte Black (MBK), Cyan (C), Magenta (M),

Yellow (Y), Black (BK)


Shipped with printer: 130ml (MBK)/90ml (BK, C, M, Y)

Replacement:

MBK: PFI-323 (300ml)/PFI-123 (130ml),

BK, C, Y: PFI-320 (300ml)/PFI-120 (130ml)

M: PFI-321 (300ml)/PFI-121 (130ml)


Matte Black: 5,120 nozzles  BK/C/M/Y: 2,560 nozzles


2 GB


Roll Feed: One Roll, Top-loading, Front Output


Roll Media: 59'

Cut Sheet: 5.2'



Roll Feed: 8” – 36” (203.2 mm – 917 mm)

Cut Sheet: 8” – 36” (203.2 mm – 917 mm)


0” - 0.03” (0.07 mm - 0.8 mm)


Automatic horizontal cutting (Rotary cutter): standard


5.9” (150 mm)


2” Core Standard. 2”/3” Core Roll Holder Set (RH2-28) Optional.


Stackable Basket


Accounting Manager, Device Management Console, Direct Print Plus, Free Layout Plus, Driver, Media Configuration Tool, PosterArtist, AirPrint®,

Mopria® Print Service


Windows 7, 8.1, 10 (32/64-bit), Windows 11 (64-bit), Windows Server 2008R2,

2012, 2012R2, 2016, 2019, 2022 (64-bit), Macintosh OS v10.12.6 - v13x


SGRaster, HP-GL/2, HP RTL, JPEG, CALS G4


Standard (Built-in): USB 2.0 Hi-Speed, 10/100/1000Base-T/TX,

Wireless LAN (IEEE 802.11 b/g /n)


AC 100 – 240V (50 – 60 Hz)


Max: Approx. 76W

Standby: Approx. 1.6W

Power Off: Approx. 0.06W


ENERGY STAR® certified, EPEAT 1.0 Gold, Mporia® Certified


Temperature: 59 – 86 °F (15 – 30 °C)

Relative Humidity: 10 – 80% (Non Condensation)


(With basket open) 50.6” x 34.2” x 41.0”, 165.3 lbs.


(Main unit with pallet) 57.6” x 35.9” x 30.3”; 253.5 lbs.


2”/3” Roll Holder Set (RH2-35)

User-Replaceable Items

• Ink Tank (300ml: PFI-320/PFI-321/PFI-323, 130ml: PFI-120/PFI-121/PFI-123)

• Printhead (PF-06)

• Maintenance Cartridge (MC-31)

• Cutter Blade (CT-08)


Printer, Stand with Stackable Basket, Starter Ink Tanks

BK/C/M/Y (90ml) MBK (130ml), 1 Printhead, Maintenance

Cartridge (Installed), 2” Roll Holder with 3” Adapters,

Installation Guide, User Registration Card, Printer Warranty

Statement, Printhead Warranty Statement, Call Center

Notice, Media Compatibility Flyer, PosterArtist Web Notice

Flyer, Safety and Environmental Information, iWR Service

Terms Leaflet, USB port (High Speed), Power Cable and

Screw, Gigabit Ethernet (Built-in)

TM-610M Integrated Scanner Specs

Scan Speed



Copy Speed


Maximum Resolution


Maximum Scan Width/Maximum Media Width


Maximum Scan Length


Maximum Media Thickness


Maximum Number of Copies


Digital Imaging Technologies










Preset Modes





Scan Format

Color: 5.0 ips @ 200 dpi

Monochrome: 10.0 ips @ 200 dpi


Color: 66 seconds @200 dpi


600 dpi


36”/36.5”



326.9” (JPEG)/200” (PDF)


0.003” – 0.03” (0.07 mm – 0.8 mm)


Up to 99


Contact Image Sensor (CIS) Technology

Dual Side illumination

• 8-bit RGB • 8-bit grayscale

• Zoom ratio: 25 ~ 432%

• Functions: Automatic Original Size Detection,

Density Adjustment, Contrast Adjustment, Sharpness

Adjustment,Saturation Adjustment, Print Quality Selection, White Enhancement, Black Enhancement, Data Size Adjustment, Frequently Used Settings


CAD (Line Drawing) ,Blueprint(Black & White Conversion), Inverted Blueprint(Black & White Conversion), Tracing Paper, Poster/Photo, Drawing/Map


USB memory (FAT16, FAT32, exFAT), Email, SMB
