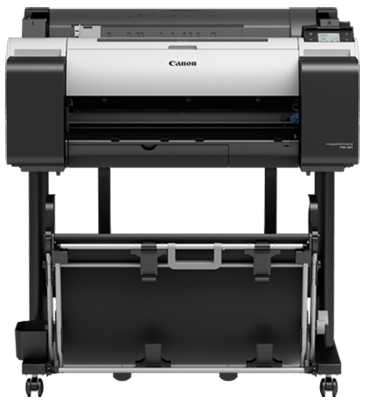

imagePROGRAF TM-205

The TM Series is redefining what a Large-format printer is capable of. The TM-205 printer is not only ideal for printing technical documents, CAD drawings and GIS maps, but also posters, signage and displays with the use of Canon's LUCIA TD water resistant pigment ink.


Built with Canon developed technologies the TM-205 has a 5-colour LUCIA TD pigment ink, PF-06 print head, L-COA PRO image processor, along with a clear, intuitive operation panel and is nearly 60% quieter than previous models

  • UP TO 141 'D' SIZED PRINTS PER HOUR
  • 24" (609MM) PRINT WIDTH
  • 5 COLOUR TD PIGMENT INK SET
  • USB DRIVE PRINTING
  • USB2.0, GIGABIT WIRED, WIRELESS
  • FLAT STACKER BASKET

Plus there is a host of creative workflow software included. Newly developed for this series is Free Layout Plus, a print utility that allows users to tile nest and create custom layouts before printing. Direct Print & Share, Canon's cloud portal software, has new added features as does Canon's poster creation software, PosterArtist Lite making this printer an easy choice for the architectural, engineering and construction industries as well as office environments

OVERVIEW

The TM-205 device features an all-new 5-colour TD pigment ink set. This ink was formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper.

Read More

SOFTWARE

The TM Unified Printer Driver allows users to print to any imagePROGRAF TM Series device, without the need to install additional drivers for each model.

Read More
Specifications
Printer Type

Number of Nozzles

Nozzle Pitch

OS Compatibility



Standard Interfaces



Ink Droplet Size

Ink Capacity

Ink Droplet Size

Color Set

Standard Memory

Hard Drive

Media Width


Media Thickness

Maximum Roll Print Length

Maximum Media Roll Diameter

Borderless Printing Width


Paper Feed Method


Languages

Noise Level Approx



Physical Dimensions

Weight

Power Source

Power Consumption



Operating Environment

User-replaceable items


Software Included

5-Colour 24-inch Printer


Total: 15,360 - MBK: 5,120 nozzles,  C, M, Y, BK: 2,560 nozzles each


1,200 dpi Non-firing nozzle detection and compensation


Windows® 7, 8.1, 10 (32/64bit)

Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)

Macintosh OS X v10.10.5-v10.12x


USB 2.0 High-Speed

10/100/1000 Base-T/TX

Wireless LAN (IEEE 802.11 b/g/n)


5 picoliter


130 ml or 300ml per color


Pigment Ink


Pigment: Matte Black, Black, Cyan, Magenta, Yellow


128GB with 2GB Physical Memory


500 GB HD


Cut Sheet - 8- 24"

Roll Feed - 8 - 24"


0.07-0.8mm


Roll Feed - 59' (18 meters)


5.9 (150mm)


8, 10, 12, 14, 16 17, 20, 24 B4 (10.12/257 mm), A3 (11.69/297 mm), A3+ (12.95/329 mm), A2 (16.54/420 mm), B2 (20.28/515 mm), A1 (23.39/594 mm)


Roll Feed: One Roll, Top-loading, Front

Output Cut Sheet: Top Loading, Front Output


SGRaster, HPGL/2, HP-RTL, JPEG


Operation: 44 dB (A)

Standby: 35 dB (A) or less

Acoustic Power: 6.0 Bels


42.0 x 38 x 34"


approx.112 lbs (roll holder included, no inks, no print heads)


AC100-240V (50-60Hz)


Maximum: 69W or less

Standby 3.6W or less

Power Off: 0.3W or less (Compliant with Executive Order)


Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80%


Print Head (PF-06)Maintenance Cartridge (MC-31)Ink Tanks (PFI-120/PFI-320)Cutter Blade (CT-08)


TM Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor †
