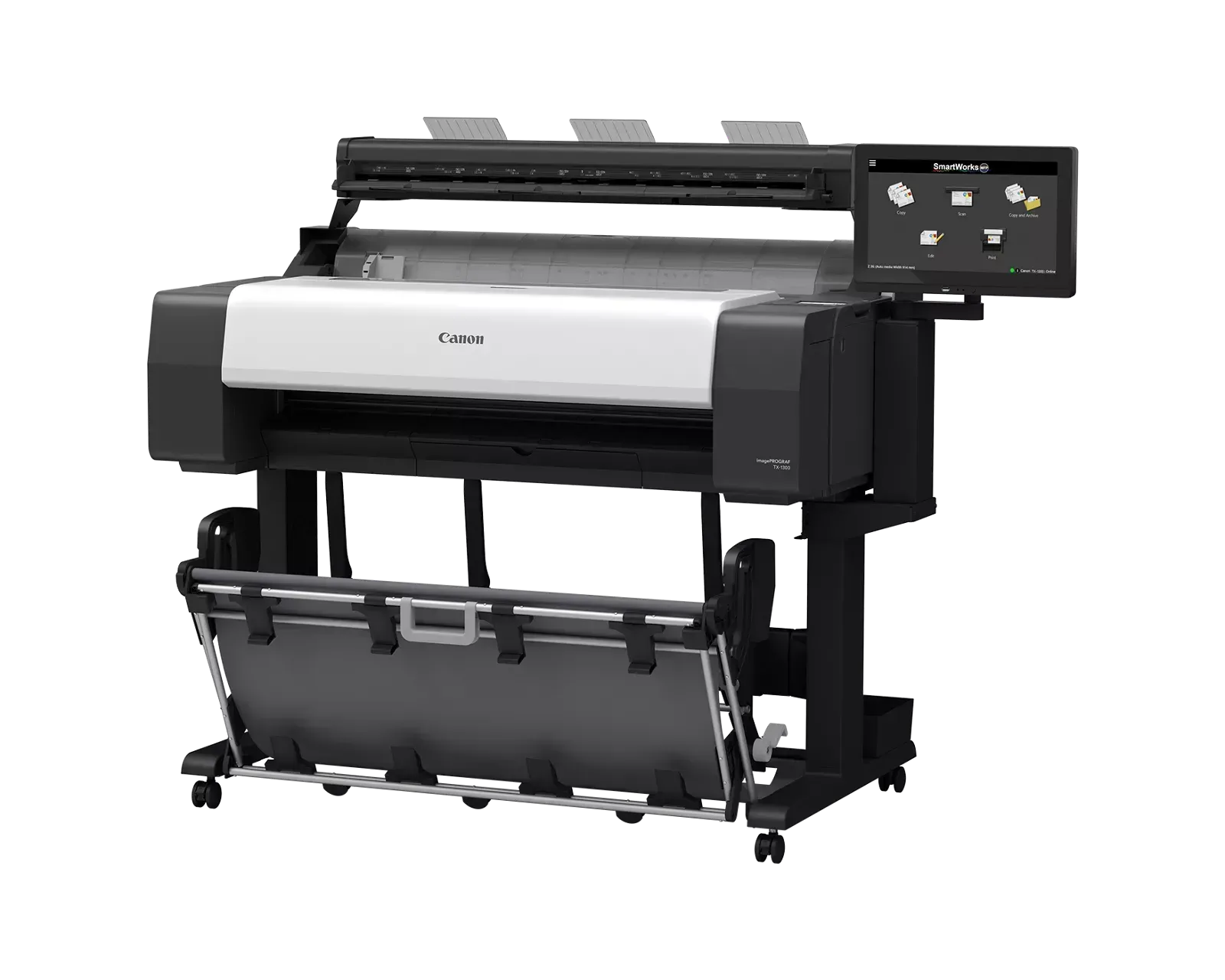

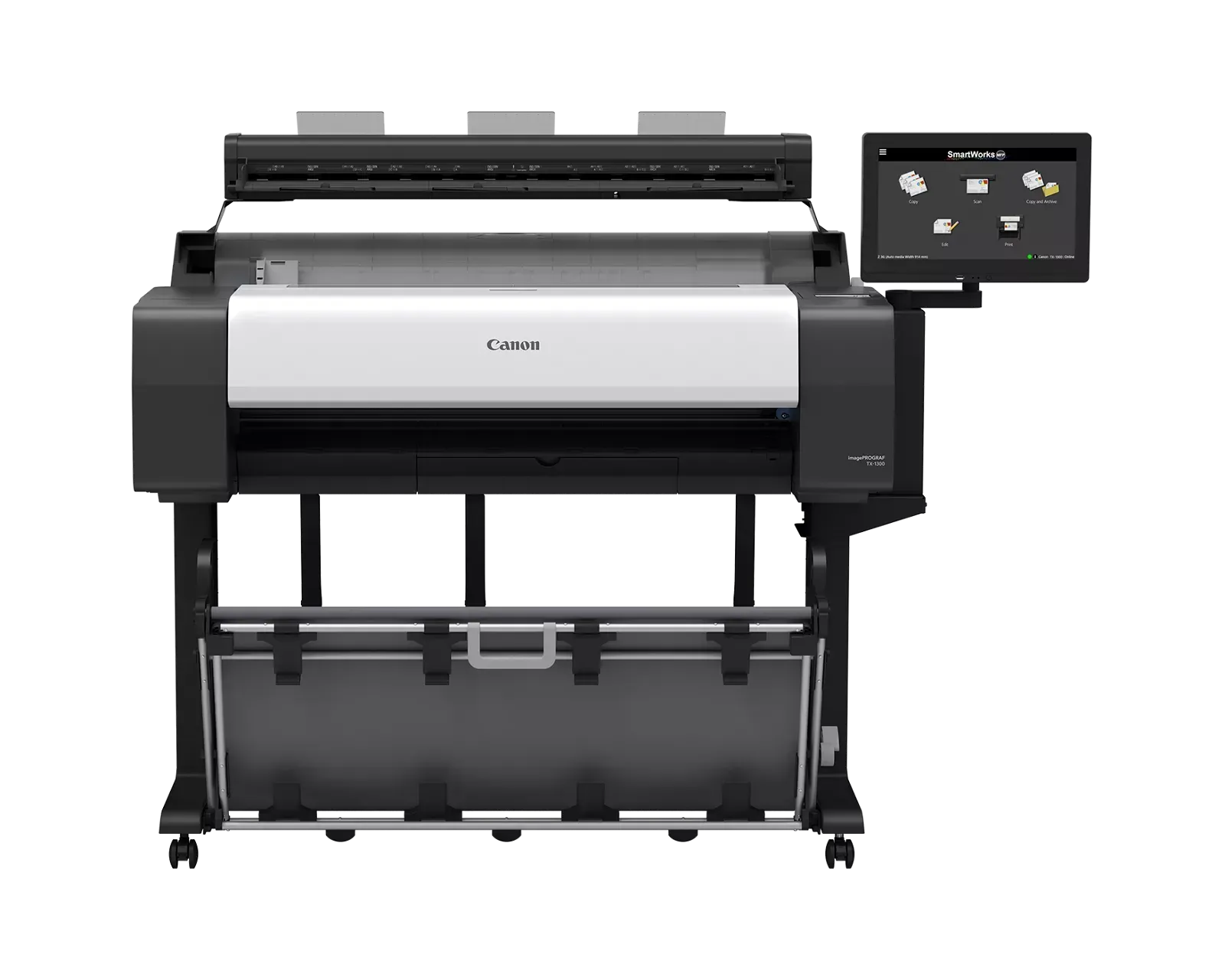

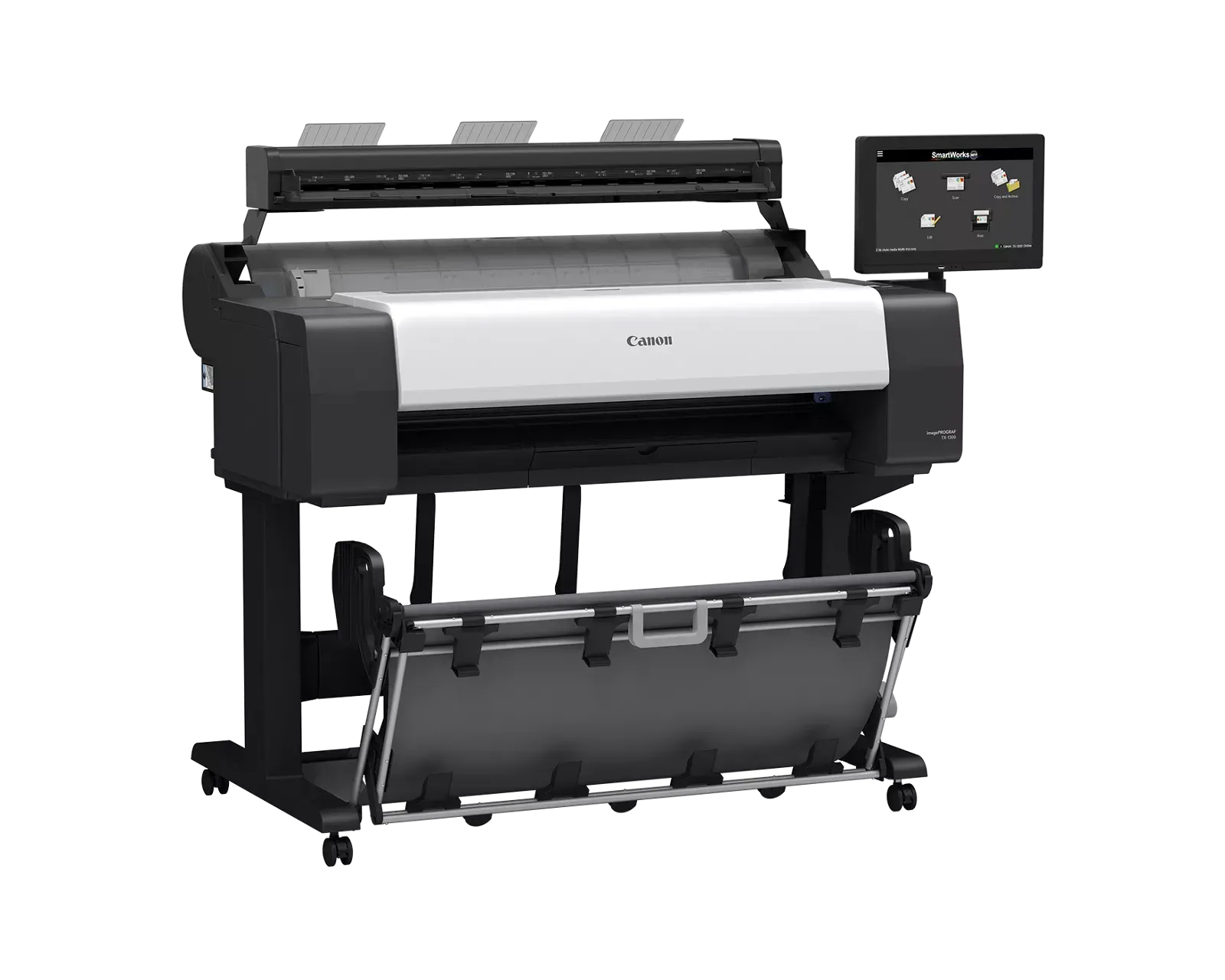

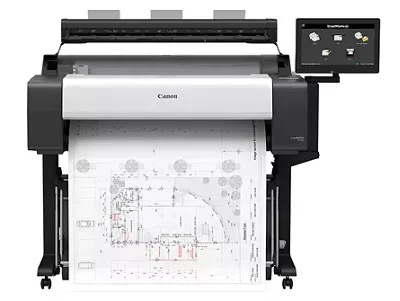

imagePROGRAF TX-1300

This 36” technical documents large-format printer delivers enhanced productivity for compact spaces using 5-color LUCIA TD pigment ink and print speeds of up to 3.2 ppm. It features deep black and line clarity reproduction with the newly re-formulated matte black ink, built-in color calibration, and automatic paper detection. Designed for optimal comfort, the space-saving flat-top body includes a 4.3” tilt touchscreen for full-frontal operation. The 36” Z36 scanner allows for high volume scanning with intuitive editing capabilities from SmartWorks without sacrificing additional space. In addition to being EPEAT 1.0 Gold registered and ENERGY STAR certified, the TX Series has eliminated EPS packaging and increased the recycled material in the chassis. This printer comes standard with free powerful creative workflow software such as Direct Print Plus, Poster Artist, and Free Layout Plus.

BROCHURE
  • 36" (914 mm) print width
  • Up to 3.2 Arch D per minute
  • Z36 Scanner: High-Volume Scanning with Intuitive Editing Capabilities
  • 5 Colour Lucia TD pigment ink with newly formulated Matte Black ink
  • Flat body design
  • Automatic paper detection
  • Security features to help protect your work
  • EPEAT Gold and Energy Star certified

Key Features

36" Z36 Scanner

The Z36 scanner is a compact, lightweight system with speeds of up to 13 ips B/W and 6 ips Color, dual LED high-quality scanning, a 15.6” touchscreen controller, and robust & intuitive operational software.

Lucia TD Ink System

The matte black ink is designed to deliver outstanding black color reproduction suitable for a wide range of markets and applications. The use of pigment ink for all colors helps to ensure prints are resistant to fading and easy to handle in outdoor environments.

Improved Line Clarity

IImage processing improvements and LUCIA TD ink help to enhance AEC documents and posters with a large color gamut and improved text and line quality. This makes output more crisp, defined, and clear.

Colour Calibration

Available in the imagePROGRAF TX Series, the ability to calibrate your printer helps ensure your output is color consistent over time and across multiple TX Series devices.

Speed

At 3.2 D-size (24” x 36”) prints a minute, this is a great entry to mid-level CAD production device! Easily print technical documents at fast speeds with this user-friendly device.

Button

Security Features

The TM Series offers enhanced security features to help protect against unauthorized printing, device access, and network intrusions or data tampering

Ease of Use

Boost productivity with full front access to ink, media, and cartridges and easily monitor settings on the 4.3” touchscreen.

Media Handling

Load the media roll onto the spindle and slide it into the device. Once manually fed, the printer automatically detects media type, width, & estimates the amount of the roll, all shown on the display panel.

36" Z36 Scanner

The Z36 scanner is a compact, lightweight system with speeds of up to 13 ips B/W and 6 ips Color, dual LED high-quality scanning, a 15.6” touchscreen controller, and robust & intuitive operational software.

Lucia TD Ink System

The matte black ink is designed to deliver outstanding black color reproduction suitable for a wide range of markets and applications. The use of pigment ink for all colors helps to ensure prints are resistant to fading and easy to handle in outdoor environments.

Specifications

Size


Printhead


Ink Type



Ink Tank






Number of Nozzles


Printer RAM


Media Feed


Maximum Print Length (varies according to OS and the application)


Media Width



Media Thickness


Media Cutter


Maximum Roll Diameter


Media Core Sizes


Media Output


Printing Software Utilities





Operating System



Print Language


Interface





Power Supply


Power Consumption




Certifications


Operational Environment



Printer Dimensions and Weight


Package Dimensions and Weight


Options







What's in the Box

36" (914mm) Wide Printer


PF-06


Pigment: Matte Black (MBK), Cyan (C), Magenta (M),

Yellow (Y), Black (BK)


Shipped with printer: 130ml (MBK)/90ml (BK, C, M, Y)

Replacement:

MBK: PFI-323 (300ml)/PFI-123 (130ml),

BK, C, Y: PFI-320 (300ml)/PFI-120 (130ml)

M: PFI-321 (300ml)/PFI-121 (130ml)


Matte Black: 5,120 nozzles  BK/C/M/Y: 2,560 nozzles


128 GB (Physical memory 2 GB), Hard Drive: 256GB


Roll Feed: One Roll, Top-loading, Front Output


Roll Media: 59'

Cut Sheet: 5.2'



Roll Feed: 8” – 36” (203.2 mm – 917 mm)

Cut Sheet: 8” – 36” (203.2 mm – 917 mm)


0” - 0.03” (0.07 mm - 0.8 mm)


Automatic horizontal cutting (Rotary cutter): standard


5.9” (150 mm)


2” Core Standard. 2”/3” Core Roll Holder Set (RH2-28) Optional.


Flat Stacking Basket


Accounting Manager, Canon Print Service, Canon Production Printing (CPP) Driver Select, Canon Production Printing (CPP) PRISMA Tech Suite, Device Management Console, Direct Print Plus, Free Layout Plus, Driver, Media

Configuration Tool, PosterArtist, Quick Utility Toolbox


Windows 7, 8.1, 10 (32/64-bit), Windows 11 (64-bit), Windows Server 2008R2,

2012, 2012R2, 2016, 2019, 2022 (64-bit), Macintosh OS v10.12.6 - v13x


SGRaster, HP-GL/2, HP RTL, JPEG, CALS G4


Standard (Built-in): USB 2.0 Hi-Speed,

Direct USB Thumb Drive, 10/100/ 1000Base-T/TX,

Wireless LAN (IEEE 802.11 b/g/n)1


AC 100 – 240V (50 – 60 Hz)


Max: Approx. 69W

Standby: Approx. 1.6W

Power Off: Approx. 0.06W


ENERGY STAR® certified, EPEAT 1.0 Gold, Mporia® Certified


Temperature: 59 – 86 °F (15 – 30 °C)

Relative Humidity: 10 – 80% (Non Condensation)


(With basket open) 50.6” x 34.8” x 41.0”, 149.9 lbs.


(Main unit with pallet) 57.6” x 44.2” x 31.5”; 255.7 lbs.


2”/3” Roll Holder Set (RH2-35)

User-Replaceable Items

• Ink Tank (300ml: PFI-320/PFI-321/PFI-323, 130ml: PFI-120/PFI-121/PFI-123)

• Printhead (PF-06)

• Maintenance Cartridge (MC-31)

• Cutter Blade (CT-08)


Printer, Stand with Flat Stacking Basket, Starter Ink Tanks BK/C/M/Y (90ml) MBK (130ml), 1 Printhead, Maintenance Cartridge (Installed), 2” Roll Holder with

3” Adapters, Installation Guide, User Registration Card, Printer Warranty Statement, Printhead Warranty Statement, Call Center Notice, Media Compatibility Flyer, PosterArtist Web Notice Flyer, Safety and Environmental

Information, iWR Service Terms Leaflet, USB port (High Speed), Power Cable and Screw, Gigabit Ethernet (Built-in)

Z36 scanner

Scan Speed



Copy Speed


Colour Space


Maximum Resolution


Scan Accuracy


Maximum Scan Width


Maximum Media Width


Maximum Scan Length


Maximum Media Thickness


Digital Imaging Technology









Included Software



Operating Environmant


Operating System


Scanner Interface Kit



External Power Supply


Scanner Power Consumption



Compliance





Scanner Dimensions


Scanner Weight


What's in the Scanner Box

24-bit Colour @ 200 dpi: 3” (Per Second)

8-bit Grayscale and Monochrome @ 200 dpi: 13” (Per Second)


24-bit Colour @ 200 dpi: 6” (Per Second)


sRGB


1200 dpi


+/- 0.1% : +/- 1 pixel


36"


38"


315" (PDF/JPEG); 598" (TIFF)


0.003” – 0.04” (0.07 mm – 1.0 mm)


Contact Image Sensor (CIS) Technology (SingleSensor

Assembly)

• Technology (SingleSensor Assembly)

• 24-bit RGB digital color image capture

• 16-bit grayscale image capture

• Panchromatic monochrome and black-and-white

• Bi-directional extra long-life LED light system for optimum object illumination and instant-on scanning capability


SmartWorks MFP Scan-to-Copy/File/Email with Realtime Image Viewer; supports TIFF, JPEG, and Multi Page PDF


10 - 35°C, 10 - 90% RH


Windows 11 Enterprise LTSC (x64)


Superspeed USB 3.0 (PC Connector Compatible with

USB 2.0 and USB 3.0 sockets)


100 - 240 VAC +/- 10%, 50 - 60 Hz


Sleep/Idle: 0.2W/12.4W

Scanning Color/Grayscale @ 200 dpi: 22.7W/23.3W


ENERGY STAR®, CB (62368-1), CE, FCC (EMC), Cul/UL,

CCC, NOM-019, EAC, C-TICK, VCCI, BIS, EMC +LOA, UL

AR, WEEE, REACH, RoHS, EU—Tier 3 of Lot 6


42” x 10” x 7”


17.3 lbs. (Approx.)


• Z36 Scanner with Power Cord, USB 3.0 Cable (2 meter

• 15.6” System Controller

• 3:1 Trident Power Cord

• Power Supply

• Mount for Printer and System Controller

• 2 Paper Edge Guides

• Document Return Guides

• Calibration Target

• Assembly and Startup Guide
