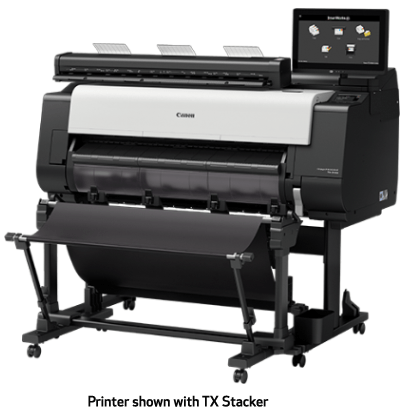

5-Colour 36-inch Printer

Total: 15,360 - MBK: 5,120 nozzles,  C, M, Y, BK: 2,560 nozzles each

1,200 dpi Non-firing nozzle detection and compensation

Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
MacOS 10.12.6 and later

USB 2.0 High-Speed
10/100/1000 Base-T/TX

5 picoliter

160 ml, 330 ml or 700 ml

Pigment Ink

Pigment: Matte Black, Black, Cyan, Magenta, Yellow

128 GB HD (2 GB Physical)

500 GB HD

Roll Feed: 6"-36"(152.4 mm –914.4mm)

Cut Sheet: 6"-36"(152.4 mm –914.4mm)

0.07-0.8mm

Roll Feed - 59' (18 meters)

6.7 (170mm)

All sizes

Roll Feed: One Roll, Front-loading, Front Output
Front Loading Manual Feed: One Roll, Front Output

SGRaster, HP-GL/2, HP RTL, PDF, JPEG

Operation: 51 dB (A)

Standby: 35 dB (A) or less

Acoustic Power: 6.9  Bels

46” x 55” x 47” (Main unit and TX Stacker; roll holder included, no inks, no print heads)
46” x 55” x 39” (Main unit and TX Catch Basket Opened)

approx. 257 lbs (Main unit and TX Stacker; roll holder included, no inks, no print heads)
approx. 231 lbs (Main unit and Catch Basket roll holder included, no inks, no print heads)

AC100-240V (50-60Hz)

Maximum: 115W or less

Standby 2.0W or less

Power Off: 0.3W or less (Compliant with Executive Order)

Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation)

Print Head (PF-06) Maintenance Cartridge (MC-30)

Ink Tanks (PFI-110/PFI-310/PFI-710)

Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus, Canon Printer Driver, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, CPP Publisher Select, CPP Driver Select

Contact Image Sensor (CIS) technology

+/- 0.1%

13 ips monochrome, 6 ips colour

1200dpi (Adjustable from 100 dpi to 2,400 dpi

9600dpi interpolated

Width: 38 inch document width (36 inch image width)
Length 315” (JPG or PDF)
598” (TIFF)

0.04in (1mm)

USB 3.0 (PC connector compatible with USB 2.0 and USB 3.0 sockets)
