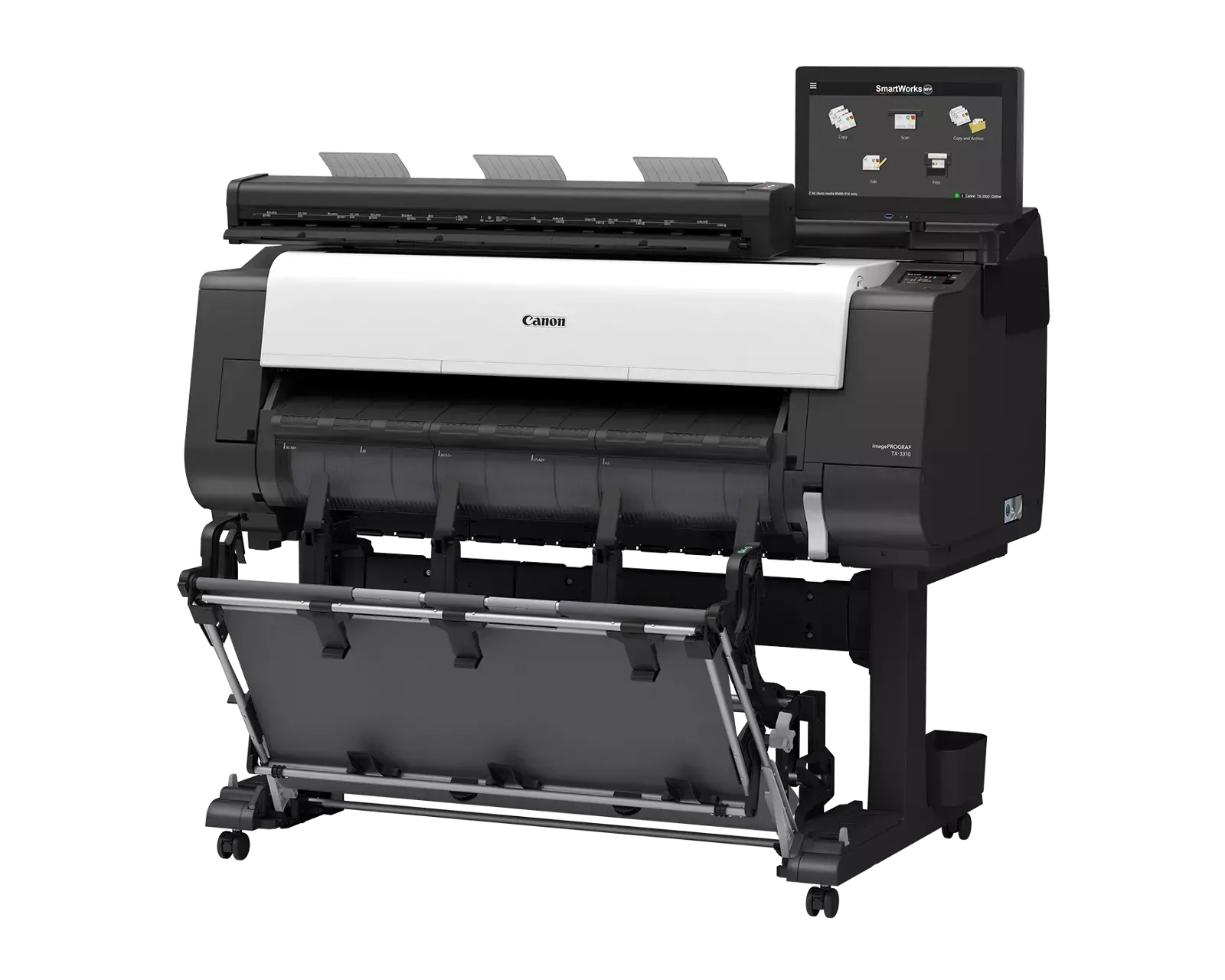

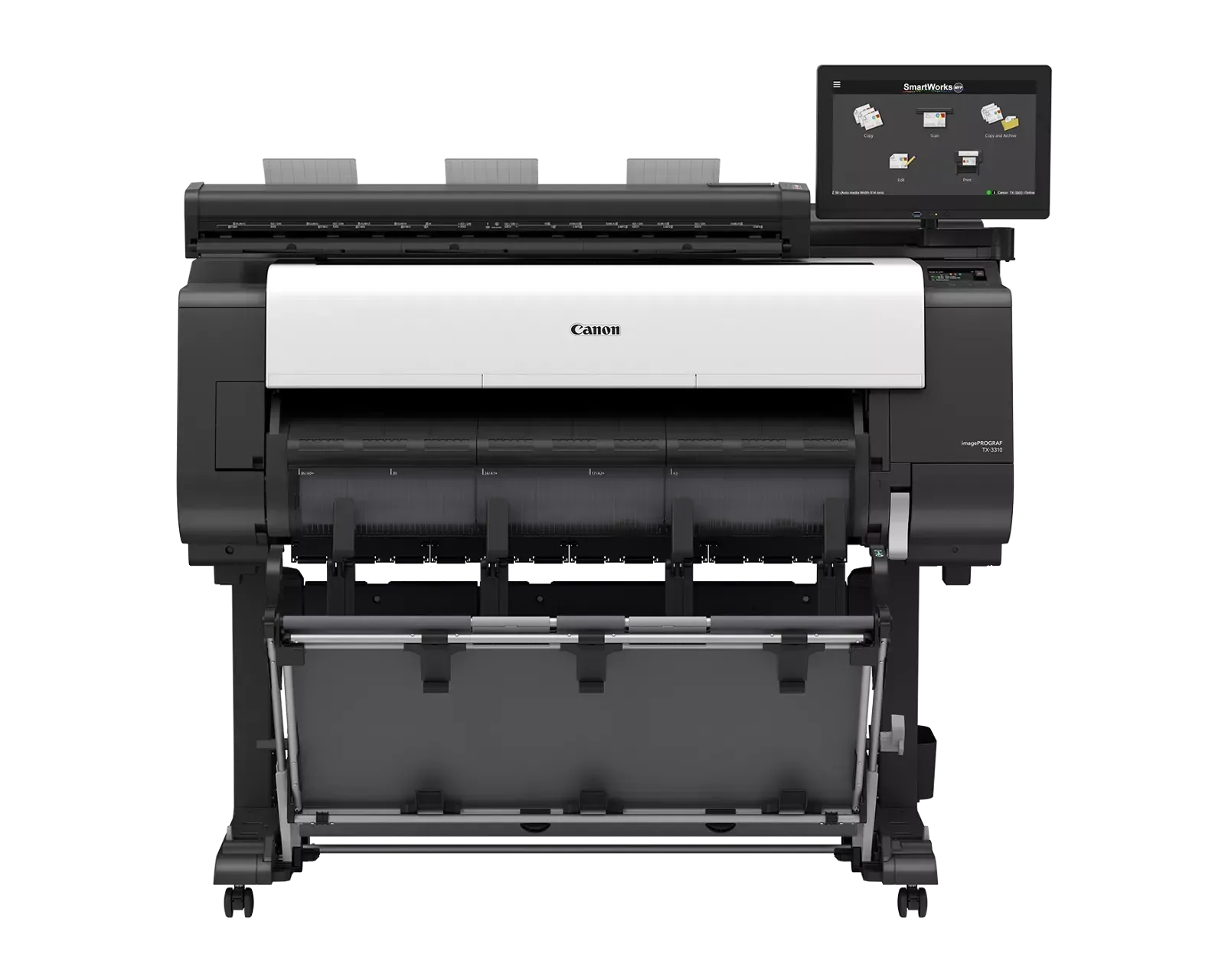

imagePROGRAF TX-3310 MFP Z36
This 36” large-format technical document printer maximizes productivity with print speeds up to 3.3 ppm, utilizing a 5-color LUCIA TD pigment ink system with newly re-formulated matte black for deep blacks and sharp line clarity, alongside built-in color calibration and automatic paper detection. The Canon TX Series features semi-translucent covers for quick supply checks, an intuitive touchscreen UI, hot-swap ink tanks, and user-installable printheads and maintenance cartridges to maintain continuous productivity and minimize downtime. The 36” Z36 scanner allows for high volume scanning with intuitive editing capabilities from SmartWorks without sacrificing additional space. In addition to being EPEAT 1.0 Gold registered and ENERGY STAR certified, the TX Series has eliminated EPS packaging and increased the recycled material in the chassis. Additionally, it comes standard with a free suite of powerful workflow and creative software, including Direct Print Plus, PosterArtist, and Free Layout Plus.
- 36" (914 mm) print width
- Up to 3.3 Arch D per minute
- Z36 Scanner: High-Volume Scanning with Intuitive Editing Capabilities
- 5 Colour Lucia TD pigment ink with newly formulated Matte Black ink
- Flat body design
- Automatic paper detection
- Security features to help protect your work
- EPEAT Gold and Energy Star certified
Key Features
Z36 Scanner
Scan Speed
Copy Speed
Colour Space
Maximum Resolution
Scan Accuracy
Maximum Scan Width/Maximum Media Width
Maximum Scan Length
Maximum Media Thickness
Digital Imaging Technology
Included Software
Operating System
Scanner Interface Kit
Operating Environments
External Power Supply
Scanner Power Consumption
Compliances
Scanner Package Dimensions
Whats in the Box?
• 24-bit Color @ 200 dpi: 3” (Per Second)
• 8-bit Grayscale and Monochrome @ 200 dpi: 13” (Per Second)
24-bit Color @ 200 dpi: 6” (Per Second)
sRGB
1200 dpi (Optical)
+/- 0.1% : +/- 1 pixel
36”/38”
164’ (PDF); 315” (JPEG); 598” (TIFF)
0.003” – 0.04” (0.07 mm – 1.0 mm)
Contact Image Sensor (CIS) Technology
(SingleSensor Assembly)
• 24-bit RGB
• 16-bit grayscale image capture
• Panchromatic monochrome and black-and-white
• Bi-directional extra long-life LED light system for optimum object illumination and instant-on scanning capability
SmartWorks MFP Scan-to-Copy/File/Email with
Real-time Image Viewer; supports TIFF, JPEG, and PDF
Windows 11 Enterprise LTSC (x64)
3x USB 3.2 and 1x USB 2.0 rear and 1x USB 3.2 front, all type A
10°C – 35°C, 10% – 90% RH, Non-condensing
100–240 VAC Autosensing +/- 10%, 50–60 Hz
• Controller Power: Approx. 35 W
• Sleep: Approx. 0.2 W
• Idle: Approx. 12.4 W
• Scanning Color/Grayscale at 200 dpi: Approx. 22.7 W/23.3 W
ENERGY STAR®, CB(62368-1), CE, FCC(EMC), Cul/UL, CCC,
NOM-019, EAC, C-TICK, VCCI, BIS, EMC +LOA, UL AR, WEEE,
REACH, RoHS, EU - Tier 3 of Lot 6
(With Stand, Pallet, and Scanner) 50” x 17” x 19.5”, 75 lb. (Approx.)
Z36 Scanner with Power Cord, USB 3.0 Cable (2 m), 15.6”
System Controller, 3:1 Trident Power Cord, Power Supply,
Mount for Printer and System Controller, (2) Paper Edge
Guides, (3) Document Return Guides, Calibration target,
Assembly and Start Up Guide, 3:1 Trident Power Cord
