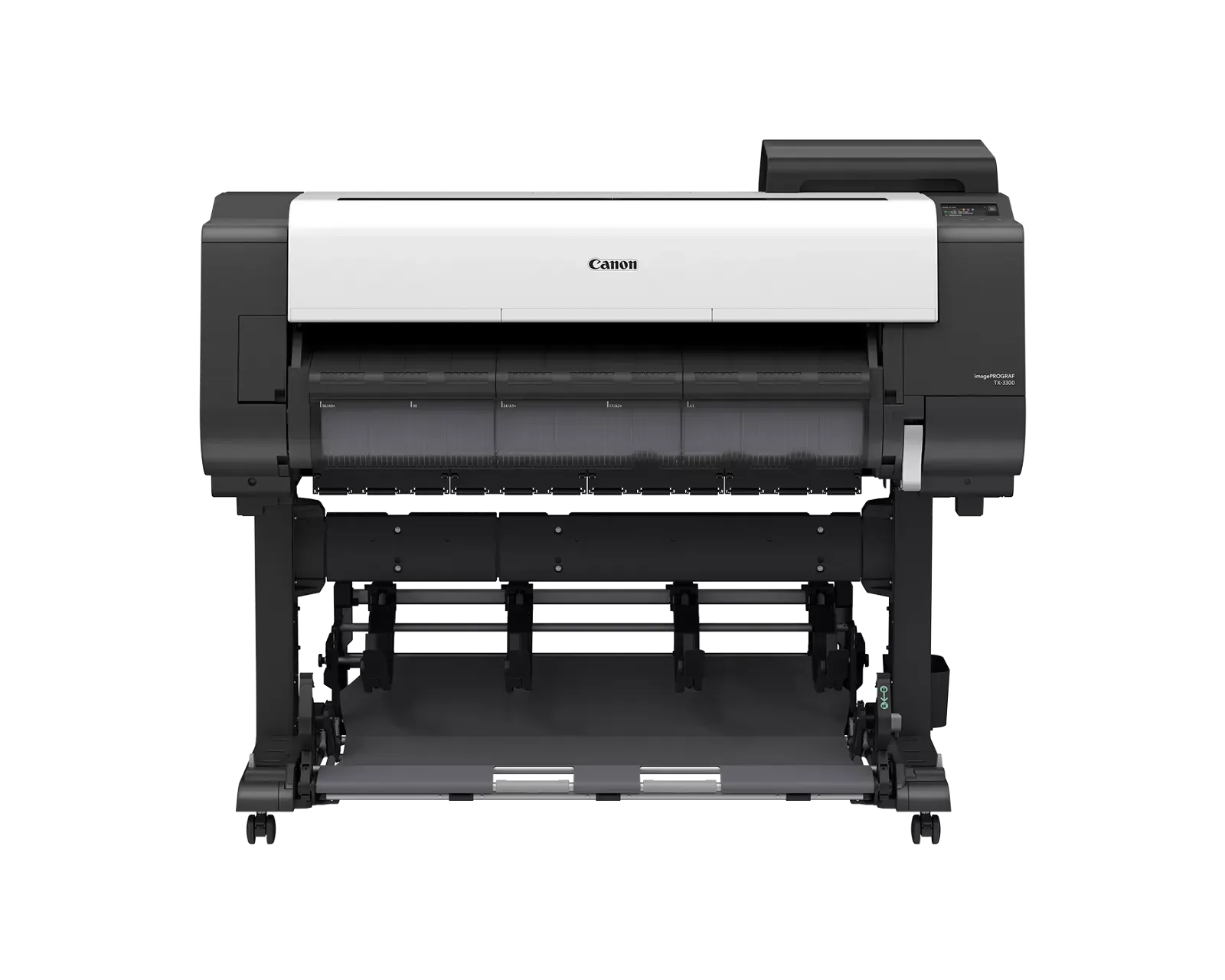

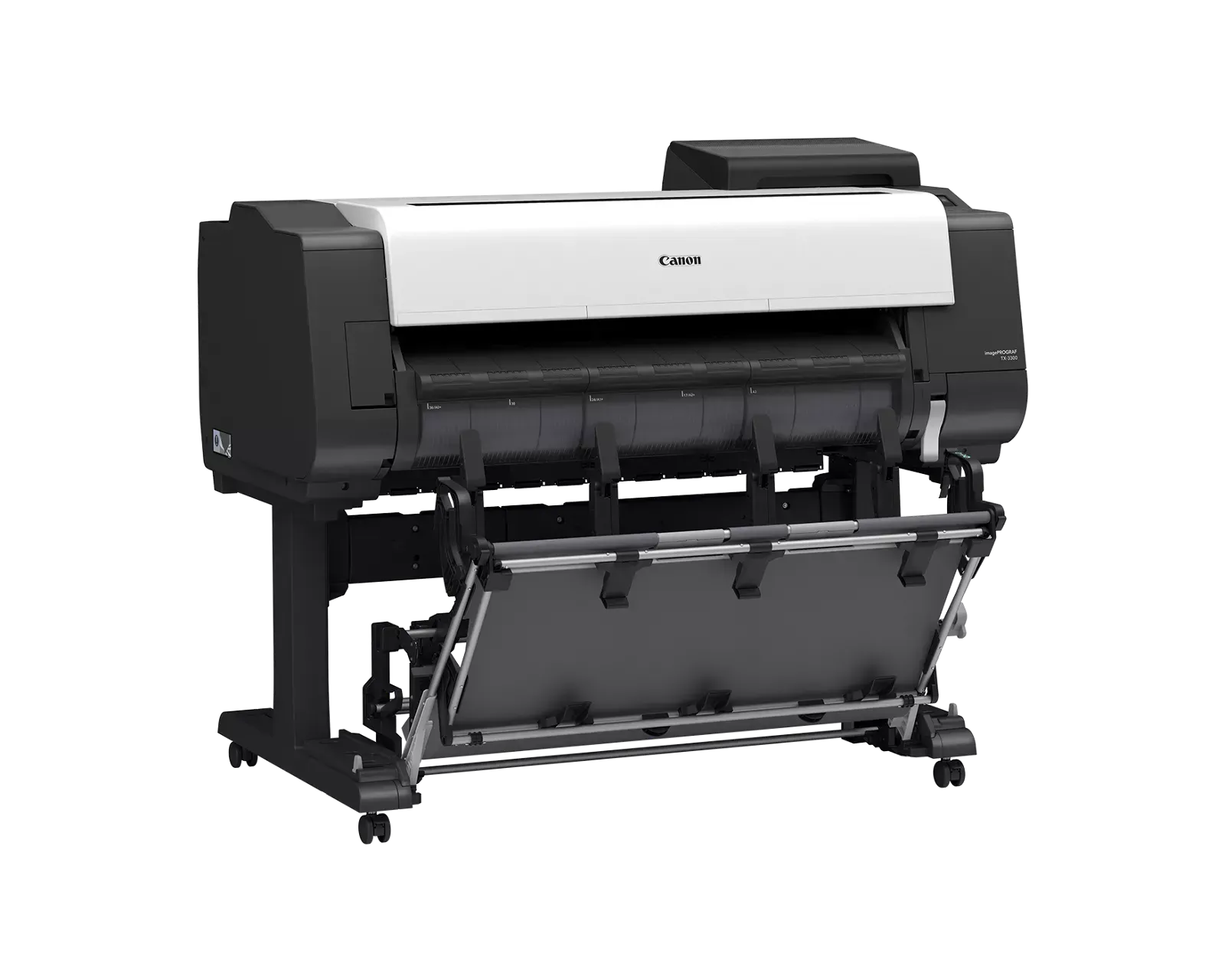

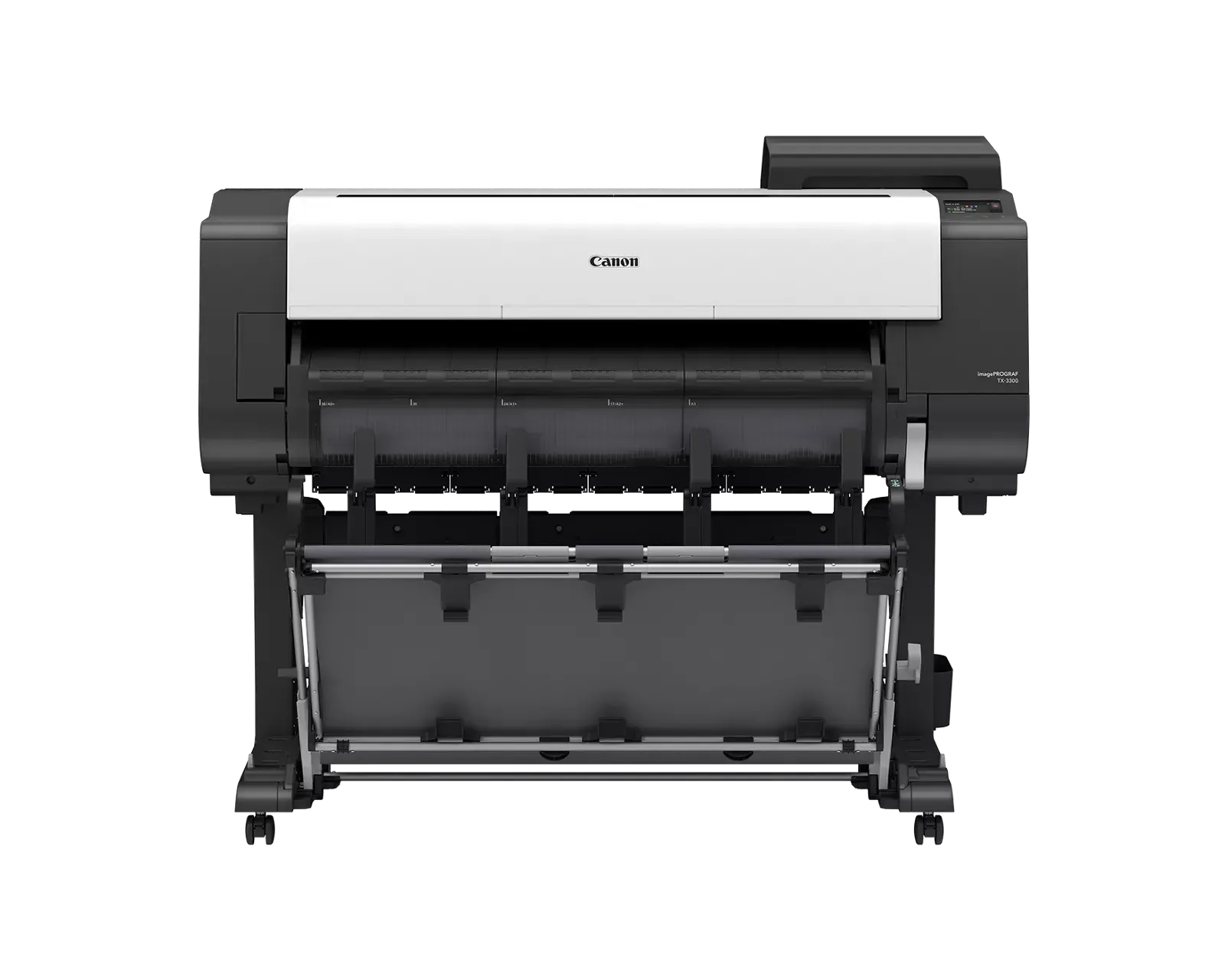

imagePROGRAF TX-3300

This 36” large-format technical document printer maximizes productivity with print speeds up to 3.3 ppm, utilizing a 5-color LUCIA TD pigment ink system with newly re-formulated matte black for deep blacks and sharp line clarity, alongside built-in color calibration and automatic paper detection. The Canon TX Series features semi-translucent covers for quick supply checks, an intuitive touchscreen UI, hot-swap ink tanks, and user-installable printheads and maintenance cartridges to maintain continuous productivity and minimize downtime. In addition to being EPEAT 1.0 Gold registered and ENERGY STAR certified, the TX Series has eliminated EPS packaging and increased the recycled material in the chassis. Additionally, it comes standard with a free suite of powerful workflow and creative software, including Direct Print Plus, PosterArtist, and Free Layout Plus.

BROCHURE
  • 36" (914 mm) print width
  • Up to 3.3 Arch D per minute
  • 5 Colour Lucia TD pigment ink with newly formulated Matte Black ink
  • Flat body design
  • Automatic paper detection
  • Security features to help protect your work
  • EPEAT Gold and Energy Star certified

Key Features

Lucia TD Ink System

The matte black ink is designed to deliver outstanding black color reproduction suitable for a wide range of markets and applications. The use of pigment ink for all colors helps to ensure prints are resistant to fading and easy to handle in outdoor environments.

Improved Line Clarity

Image processing improvements and LUCIA TD ink help to enhance AEC documents and posters with a large color gamut and improved text and line quality. This makes output more crisp, defined, and clear.

Colour Calibration

Available in the imagePROGRAF TX Series, the ability to calibrate your printer helps ensure your output is color consistent over time and across multiple TX Series devices.

Speed

At 3.3 D-size (24” x 36”) prints a minute, this is a great mid-level CAD production device! Easily print technical documents and posters at fast speeds with this user-friendly device.

Button

Security Features

The TM Series offers enhanced security features to help protect against unauthorized printing, device access, and network intrusions or data tampering

Ease of Use

The TX Series maximizes efficiency with semi-translucent covers, an intuitive user-interface, hot-swap ink tanks, and user-installable printheads & cartridges.

Media Handling

Load the media roll onto the spindle and slide it into the device. The printer automatically feeds the leading edge and detects the media type, length, and width—all shown on the display panel.

Optional Multifunction Roll Unit

Want a two-roll solution? Add the multifunction roll unit. Use this in two different ways: add a second roll of media - switch back and forth between popular medias - or use it as a take-up reel for continuous printing.

Lucia TD Ink System

The matte black ink is designed to deliver outstanding black color reproduction suitable for a wide range of markets and applications. The use of pigment ink for all colors helps to ensure prints are resistant to fading and easy to handle in outdoor environments.

Improved Line Clarity

Image processing improvements and LUCIA TD ink help to enhance AEC documents and posters with a large color gamut and improved text and line quality. This makes output more crisp, defined, and clear.

Specifications

Size


Printhead


Print Resolution


Line Accuracy


Ink Type



Ink Tank






Number of Nozzles


Printer RAM


Media Feed


Maximum Print Length (varies according to OS and the application)


Media Width



Media Thickness


Media Cutter


Maximum Roll Diameter


Media Core Sizes


Media Output


Printing Software Utilities





Operating System



Print Language


Interface






Power Supply


Power Consumption




Certifications


Operational Environment



Printer Dimensions and Weight





Package Dimensions and Weight





Options









What's in the Box

36" (914mm) Wide Printer


PF-06


2400 x 1200 dpi


±0.1% or Less


Pigment: Matte Black (MBK), Cyan (C), Magenta (M),

Yellow (Y), Black (BK)


Shipped with printer: 160ml C/Y/M/BK; 330ml MBK

Replacement:

MBK: PFI-113 (160ml)/PFI-313 (330ml)/PFI-713 (700ml)

M: PFI-111 (160ml)/PFI-311 (330ml)/PFI-711 (700ml)

BK/C/Y: PFI-110 (160ml)/PFI-310 (330ml)/PFI-710 (700ml)


Matte Black: 5,120 nozzles  BK/C/M/Y: 2,560 nozzles


128 GB (Physical memory 2 GB), Hard Drive: 256GB


Roll Feed: One Roll, Top-loading, Front Output


Roll Media: 59'

Cut Sheet: 5.2'



Roll Feed: 8” – 36” (203.2 mm – 917 mm)

Cut Sheet: 8” – 36” (203.2 mm – 917 mm)


0” - 0.03” (0.07 mm - 0.8 mm)


Automatic horizontal cutting (Rotary cutter): standard


6.7” (170 mm)


2” with 3” Core Adapters Included


TX Stacker, Multipositional Flat Stacking Basket


Accounting Manager, Canon Print Service, Canon Production Printing (CPP) Driver Select, Canon Production Printing (CPP) PRISMA Tech Suite, Device Management Console, Direct Print Plus, Free Layout Plus, Driver, Media

Configuration Tool, PosterArtist, Quick UtilityToolbox


Windows 7, 8.1, 10 (32/64-bit), Windows 11 (64-bit), Windows Server 2008R2,

2012, 2012R2, 2016, 2019, 2022 (64-bit), Macintosh OS v10.12.6 - v13x


SGRaster, HP-GL/2, HP RTL, JPEG, CALS G4


USB B Port: Hi-Speed USB (12 Mbit/sec, 480 Mbit/sec)

USB A Port: USB drive

Gigabit Ethernet: IEEE 802.3u/ab/x (100/1000Base-T,

Full Duplex), SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP

Wi-Fi: IEEE 802.11n/g/b


AC 100 – 240V (50 – 60 Hz)


Max: Approx. 83W

Standby: Approx. 1.7W

Power Off: Approx. 0.1W


ENERGY STAR® certified, EPEAT 1.0 Gold, Mporia® Certified


Temperature: 59 – 86 °F (15 – 30 °C)

Relative Humidity: 10 – 80% (Non Condensation)


With Basket Open: 54.7” x 41.1” x 46”; 242.5 lbs.

With Basket Closed: 54.7” x 30.2” x 46”; 242.5 lbs.

With Stacker Opened: 54.7” x 46.8” x 46”; 253.5 lbs.

With Stacker Closed: 54.7” x 44.2” x 46”; 253.5. lbs.


Printer (Main Unit with Stand and Pallet): 62.9” x 35.5” x 44.2”; 352.7 lbs.

Basket: 52” x 34” x 241.4”; 59.5 lbs.

Stacker: 49.2” x 35.7” x 11.5”; 57.3 lbs.

Roll Unit: 60” x 22.1” x 18.1”; 66.1 lbs.


• Multifunction Roll System (RU-34)

• 2"/3" Roll Holder Set (RH2-34)

User-Replaceable Items

• Ink Tank (PFI-110/111/113, PFI-310/311/313, PFI-710/711/713)

• Printhead (PF-06)

• Maintenance Cartridge (MC-30)

• Cutter Blade (CT-07)


Includes Main Unit, TX Stacker or Multi-Positional Flat Stacking Basket, Stand, (1) Printhead, Starter Ink Tank Set, (1) Maintenance Cartridge (Installed), 2” Roll Holder with 3” Adapters, Installation Guide, User Registration Card,

Printer Warranty Statement, Printhead Warranty Statement, Call Center Notice, Media Compatibility Flyer, PosterArtist Web Notice Flyer, iWR Service Terms Leaflet, Safety and Environmental Information, USB port (High Speed), Power

Cable & Screw, Gigabit Ethernet (Built-In)
