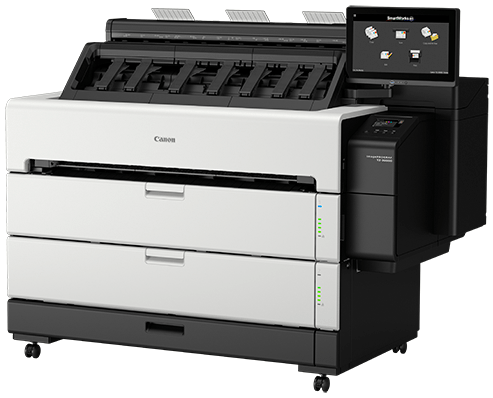

imagePROGRAF TZ-30000 MFP Z36

The fastest imagePROGRAF printer. Ever.


A 5-colour, 36-inch aqueous inkjet Scan-To-Copy/File/Share production solution for high productivity and efficiency for the low-end LED and high-end inkjet market. The TZ-30000 MFP Z36 achieves the fastest printing speed of any imagePROGRAF printer to date at up to 4-D size prints per minute. Designed with many “Canon First” technologies built in such as twin carriage motors, an integrated top stacker that utilizes an air flow system and a dual roll media system with intelligent media handling. This MFP includes a production CAD printer, Z36 scanner and intuitive system controller making it a powerful addition to Canon’s portfolio of large format printers perfect for scanning maps, drawings and renderings.

  • TZ-30000 36" Printer
  • Z36 Scanner
  • 15.6" System Controller
  • Up to 244 'D' prints/hr
  • Integrated 100 sheet top stacker
  • Dual media rolls
  • High speed USB, Gigabit Ethernet, Wireless LAN
  • Intelligent media handling


OVERVIEW

The TZ-30000 MFP Z36 was built with production, efficiency and versatility in mind with a System Controller that has an all new intuitive GUI design.

Read More

SOFTWARE

Batch print files and monitor the status of more than one device for extremely efficient production printing. Easily share and/or print, PDF, TIFF, JPEG, HP-GL/2 files and .cpfx PosterArtist files through the user-friendly interface.

Read More
Specifications

Printer Type


Number of Nozzles


Nozzle Pitch


OS Compatibility




Standard Interfaces



Ink Droplet Size


Ink Capacity


Ink Type


Color Set


Buffer Ram


Standard Memory


Media Width



Media Thickness


Maximum Roll Print Length


Maximum Media Roll Diameter


Borderless Printing Width


Paper Feed Method


Languages


Noise Level Approx




Physical Dimensions


Power Source


Power Consumption




Operating Environment



User-replaceable items



Software Included




Z36 Scanner

Scanner Type


Scan Accuracy


Speed


Optical Resolution


Max. Resolution


Max. Document Size





Thickness


Standard Interface

5-Colour 36-inch Printer


Total: 15,360 - MBK: 5,120 nozzles,  C, M, Y, BK: 2,560 nozzles each


1,200 dpi Non-firing nozzle detection and compensation


Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
MacOS 10.12.6 and later


USB 2.0 High-Speed
10/100/1000 Base-T/TX


5 picoliter


330 ml or 700 ml


Pigment Ink


Pigment: Matte Black, Black, Cyan, Magenta, Yellow


128 GB HD (2 GB Physical)


500 GB HD


Roll Feed: 8"-36"(203.2mm –914.4mm)

Cut Sheet: 8"-36"(203.2 mm –914.4mm)


0.07-0.8mm


Roll Feed - 59' (18 meters)


6.9 (175mm)


All sizes


Roll Feed: Two Roll, Front-loading, Cut Sheet: Front-loading


SGRaster, HP-GL/2, HP RTL, PDF, JPEG


Operation: 52 dB (A)

Standby: 35 dB (A) or less

Acoustic Power: 7.0  Bels


47" x 61" x 38" Approx. 456 lb.


AC100-240V (50-60Hz)


Maximum: 157W or less

Standby 2.0W or less

Power Off: 0.3W or less (Compliant with Executive Order)


Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80% (No Condensation)


Print Head (PF-06) Maintenance Cartridge (MC-30)

Ink Tanks (PFI-340/PFI-740)


Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus, Canon Printer Driver, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, CPP Publisher Select, CPP Driver Select


Contact Image Sensor (CIS) technology


+/- 0.1%


13 ips monochrome, 6 ips colour


1200dpi (Adjustable from 100 dpi to 2,400 dpi


9600dpi interpolated


Width: 38 inch document width (36 inch image width)
Length 315” (JPG or PDF)
598” (TIFF)


0.04in (1mm)


USB 3.0 (PC connector compatible with USB 2.0 and USB 3.0 sockets)

Call us at 800-567-3222 or contact us for your free quote.
