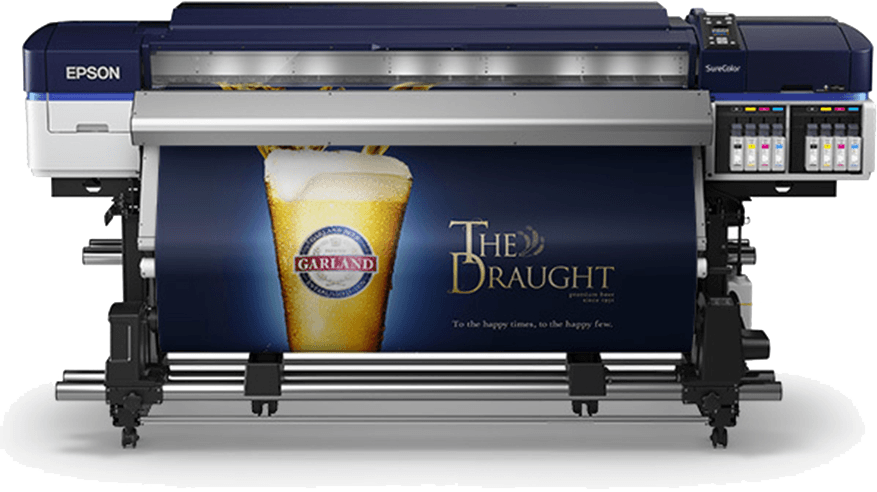

SureColor S60600 Printer
The 64-inch SureColor S60600 features newly-developed Epson UltraChrome® GS3 4-colour solvent ink for outstanding print quality, durability, and media compatibility.
  • 64" (1625 mm) print width
  • USB 2.0 & gigabit ethernet
  • Up to 1020 sq.ft./hr
  • Print resolutions up to 1.440 x 1440
The SureColor S60600 is capable of producing sellable quality banner at an astonishing 550 ft2 per hour, while also producing adhesive vinyl output at up to 310 ft2 per hour – making the new SureColor S60600 one the most productive sign printers ever developed.
Overview

UltraChrome GS3 Inks
    Production capacity — high-capacity ink cartridges at 700 ml per colour
    Extreme colour gamut — produce vibrant images using just four colours
    Superior media compatibility — print on virtually any media type from adhesive vinyl to banner material
    Same day lamination — first solvent printers to offer same day lamination2
    Environmentally responsible — no special ventilation or air purification is required3.
    3M MCS warranty — the most comprehensive warranty program in the signage industry is now
    available on all standard UltraChrome GS3 Inks — more information
    Avery ICS Performance Guarantee – Verified and tested by one of the top media manufacturers in the
    world
    Epson S-Series Rewards program — earn up to five years of coverage simply by using genuine Epson ink
    and media


PrecisionCore TFP Print Heads

    Consistent Colour — efficient, precise and repeatable performance with excellent image quality
    Precision — low vibration meniscus control for highly accurate dot shape and placement
    PrecisionCore TFP printhead — one-inch wide print head with 720 nozzles per colour
    Epson Precision Dot — delivers best-in-class image quality at commercial-level print speeds
    Robust Print Head Design — designed specifically for the high-demands of production environments

Whats in the Box?
  • SureColor S60600 printer
  • Additional Media Drying System
  • Onyx GamaPrint Pro RIP
  • Substrate Support System
  • Additional Fabric Wiper and Air Filters
  • Full Set of Cleaning cartridges (T696000)
  • Waste ink Bottle
  • Documentation
Specifications
Printing Technology:
  • Dual Advanced PrecisionCore® TFP® Print Heads
  • 8-channel, drop-on-demand, inkjet Print Head
  • Dual 4 Color (C,M,Y,K)
  • Solvent Based Ink Chemistry
Minimum Ink Droplet Size:
4.2 picoliters; Variable Droplet Technology

Maximum Print Resolution:
1440 x 1440 dpi

Print Speed:
  • Draft - 1,020 sqft/hr
  • Production: Banner - 550 sqft/hr, Vinyl 310 sqft/hr
  • Quality: Banner - 310 sqft/hr, Vinyl - 190 sqft/hr
Nozzle Configuration:
Colour and Monochrome 1440 nozzles per Colour

Maximum Paper Width:
64"

Maximum Print Width:
63.6"

Minimum Paper Width:
11.8"

Maximum Roll Diameter:
Up to 250mm

Maximum Roll Weight:
Up to 95lbs

Maximum Printable Length:
Maximum printable length limited by software application, OS, media length, and RIP

Take-up Reel:
Fully automatic “wind in” or “wind out” with tension control

Interfaces:
Hi-Speed USB 2.0 (1 port)
1000Base-T Ethernet (1 port)

Software Included:
Front-End RIP Workflow by Onyx GamaPrint Pro PANTONE licensed PostScript Language Level 3 Compatible RIP by Onyx. Includes full workflow software with layout, nesting, tiling, custom spot color management, custom media support and RIP queue functionality. The Epson SureColor S60600 is also supported by most leading third-party RIPs and workflows.
Ink Type:
UltraChrome® GS3

Ink Configuration:
CMYK x 2

Replacement Ink
  • Black T890100
  • Cyan T890200
  • Magenta T890300
  • Yellow T890400
Ink Shelf Life:
2 years from printed production date Printer is designed for use with Epson ink packs only, not third-party ink systems

Systems Requirements:
Intel i7 or better 6GB memory recommended

Operating Systems:
Mac OS X 10.8x - 10.11x; Windows 10, 8.1, 7 (64-bit)

Server Systems:
Windows® 7, 8, Windows Vista® o Windows XP (64 bits)

Temperature:
  • Operating: 50 to 95 degrees F (10 to 35 degrees C)
  • Storage: -4 to 104 degrees F (-20 to 50 C)
Humidity:
  • Operating: 20-80%
  • Operating (Recommended): 40-60%
  • 5-85% (no condensation)
Dimensions:
103" x 34" x 53" (2616 mm x 609 mm x 1346 mm) W x D x H

Weight:
615 lb (278 kg)

Power Supply Voltage:
Two (2) 110v Outlets + One (1) 110v

Rated Voltage:
AC 100 - 120 V, AC 200 - 240 V

Rated Frequency:
50 - 60 Hz

Power Consumption:
  • Operating: Approx. 650W or less
  • Standby Heaters On: Approx 520W
  • Standby Heaters Off: Approx 30W or less
  • Power Off: Approx 0.6 W or less
  • Sleep Mode: Less than 3.5W
