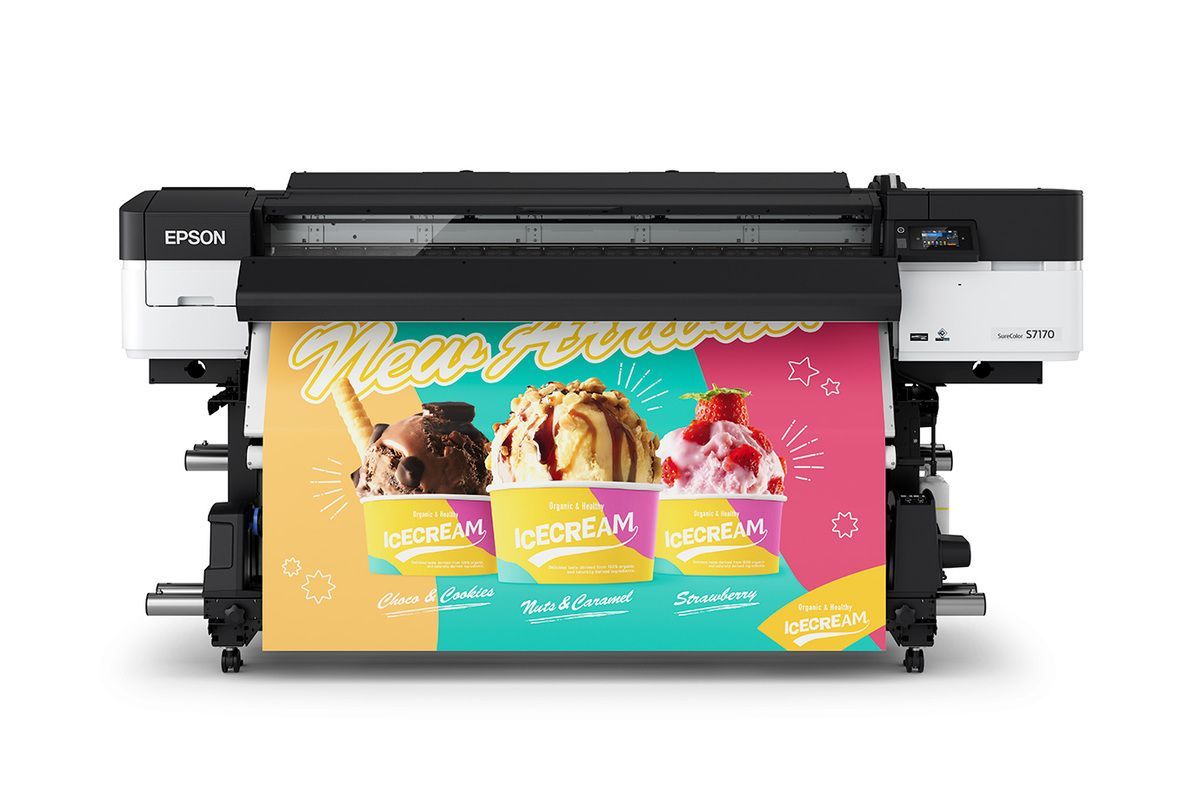

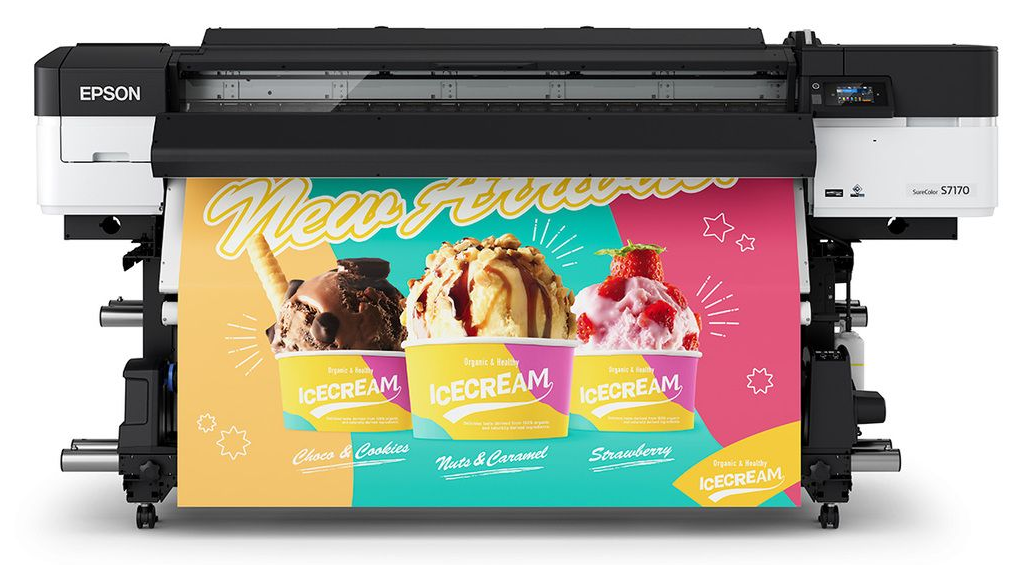

SureColor S7170 64" Solvent Printer
Grow your business with the SureColor® S7170—a 64" signage printer that delivers professional performance at an incredible value. Utilizing UltraChrome® GS3 4-color solvent inks and Epson Precision Dot technology, this printer delivers renowned detail and color performance, making it ideal for indoor and outdoor signs, banners, stickers, vehicle wraps and more.
- Delivers stable media feeding and printing accuracy
- Outstanding image quality and color performance
- Offers wide media versatility
- New PrecisionCore Micro TFP for faster print speeds
- Incredible value at a low investment cost
Built on the trusted platform of the previous generation, the SureColor S7170's precise media handling system is paired with a new, wider 1.33" PrecisionCore® Micro TFP® printhead enabling faster print speeds1. Nozzle Verification Technology helps to ensure stable operation, while a temperature sensor placed closer to the nozzle plate improves color consistency. And a newly developed Ink Supply System replaces bulky cartridges with high-volume, 800 mL ink packs2, to help reduce plastic waste and prevent frequent ink replacement. The SureColor S7170 supports a wide spectrum of media including vinyl, PVC, mesh, paper, and canvas to meet your customer needs—all with one printer—all in-house.
Overview
- Incredible value — low investment cost which allows for a faster return on investment; start and grow your business with one printer
- Built for reliability — the precise media feed and take-up system inherited from the proven SureColor S40600 platform offers stable operation and printing accuracy
- Outstanding image quality — features 4-Color UltraChrome GS3 Ink combined with Epson Precision Dot Technology for renowned detail and color performance
- Improved color consistency — reengineered with temperature sensor placement closer to the nozzle plate
- Enhanced productivity — faster print speeds1 thanks to the latest generation 1.33" PrecisionCore Micro TFP printhead
- Broad media versatility — prints on vinyl, PVC, mesh, paper, canvas and more to expand your product offerings and meet diverse customer needs—all in-house
- Affordable cost of ownership — low initial cost; provides easy maintenance, and higher production speeds vs. the SureColor S40600
- Nozzle Verification Technology (NVT) — allows for stable operation and consistent print quality by detecting clogged nozzles and alerting the operator
- New Ink Supply System — features large, 800 mL ink packs2 which use 80% less plastic3 than cartridges and helps reduce the frequency of ink replacements
Whats in the Box?
- SureColor S7170 Printer
- ONYX® Go Plus RIP (1-year subscription)
- Epson Edge® Print PRO RIP
- Power Cord
- Maintenance Parts Kit: Wiper Unit, Flushing Pad, Air Filter (x2)
- Waste Ink Bottle
- Ink Cleaner
- Cleaning Sticks
- User Guide Kit
Printing Technology: PrecisionCore Micro TFP printhead featuring Nozzle Verification Technology and variable-sized droplet control
Ink Type: UltraChrome® GS3 eco-solvent ink
Ink Colours: CMYK
Nozzle Configuration: 3,200 nozzles: 800 nozzles x 4 colors
Maximum Resolution: 1200 x 1200 dpi
Minimum Ink Droplet Volume: Smallest Droplet Size: 4.3 picoliters; Variable Droplet Technology can produce up to three different sizes per line
Left/Right Margin (Roll Paper): 5 mm
Printer Language/Drivers: Epson ESC/P® raster
Memory 1GB
Ink Pack Fill Volume: 800 mL
Ink Case: Ink Supply Unit
This printer is designed for use with genuine Epson packs only, not third-party packs or ink*.
Paper Path: Single roll
Paper Feed Method Friction feed
Maximum Roll Diameter 9.84" (250 mm)
Maximum Roll Weight 99.21 lb (45 kg)
Maximum Reel Diameter 7.87" (200 mm)
Paper Width (Roll) 11.81" to 64" (300 mm to 1,625.6 mm)
Paper Thickness (Roll) Less than 1 mm
Printer Interfaces: SuperSpeed USB 3.0 (1 port)
100Base-TX/1000Base-T Ethernet (1 port)
Operating Systems: Windows® 8.1 x64 or later, macOS® 10.7 or later
Epson Edge® Print PRO Minimum PC Requirements: Intel Core® i3 3.0 GHz CPU or faster, 8GB RAM or more, 50GB HDD or more (available during installation), DVD-ROM or Internet connection
ONYX® Go Plus Minimum PC Requirements:
Windows 10 Pro x64 or Windows 11 Pro x64, Intel® or
AMD multi-core CPU, 16GB RAM or more (32GB –64GB
recommended), 1280 x 1024 minimum display,
250GB HDD or more, Internet connection.
Control Panel 4.3" Optical Touch Color LCD
Weight and Dimensions (W x D x H)
102.2" x 38.94" x 52.68"
(2,620 mm x 989 mm x 1,338 mm)
Weight: 633 lb (287 kg)
Acoustic Noise Level
Sound Power Level: Less than 7.9 B(A)
Sound Pressure Level: Less than 61 dB(A)
Temperature
Operating: 59 ˚F to 95 ˚F (15 ˚C to 35 ˚C)
Operating (Recommended): 68 ˚F to 89 ˚F (20 ˚C to 32 ˚C)
Storage: -4 ˚F to 140 ˚F (-20 ˚C to 60 ˚C)
Relative Humidity
Operating: 20% – 80% (no condensation)
Operating (Recommended): 40% – 60% (no condensation)
Storage: 5% – 85% (no condensation)
Safety Standards
U.S.A. and Canada (NRTL Certified, CSA/UL 62368-1)
Compliant with Class A requirements U.S.A. (FCC),
Canada (ICES-003)
Electrical Requirements
Voltage:
AC 100 V – 120 V/200 V – 240 V (50 Hz/60 Hz)
Rated Current:
Main Unit 12A/10 A; Drying Fan 1 A/0.5 A
Power Consumption
Operating:
Main Unit ~1100 W
Drying Fan ~45 W
Ready:
Main Unit ~520 W
Drying Fan ~1 W
Sleep:
Main Unit ~3 W
Drying Fan ~1 W
Power Off (Standby):
Main Unit ~0.3 W
Drying Fan ~0.3 W
Country of Origin
China
