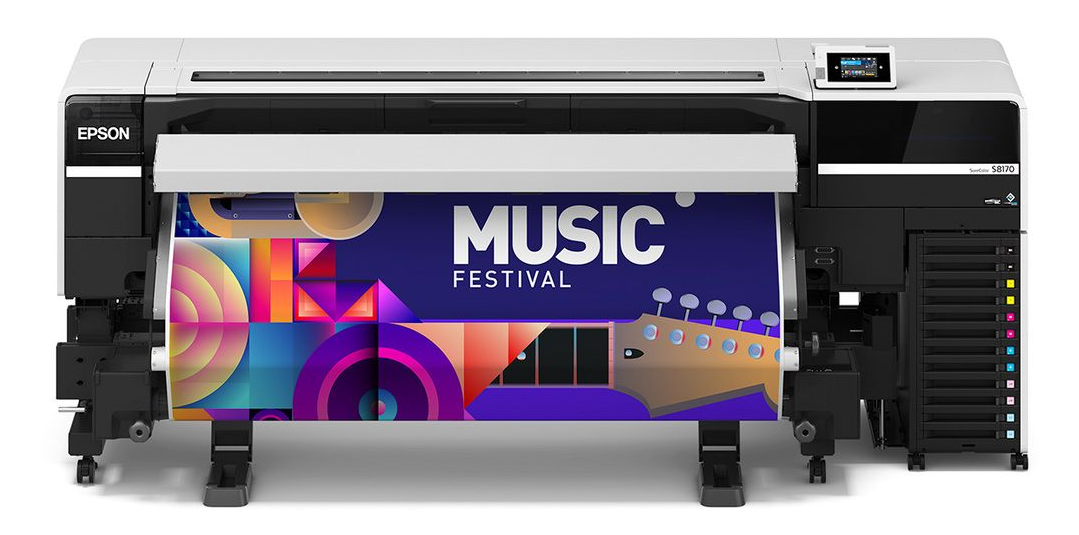

SureColor S8170 64" Solvent Printer
Maximize your production capabilities with the SureColor® S8170 , the 64-inch solvent printer that sets a new standard in performance. With print speeds more than 20% faster and improved print quality compared to the previous generation, it delivers the highest productivity in our solvent printer lineup.
- Delivers stable media feeding and printing accuracy
- Outstanding image quality and color performance
- Offers wide media versatility
- New PrecisionCore Micro TFP for faster print speeds
- Incredible value at a low investment cost
A set of 6-color UltraChrome® GS3 inks , including light cyan and light magenta, helps reduce banding, even at the fastest production print speeds. In addition, these solvent inks have an extremely fast drying time, enabling same-day lamination . <sup> 1</sup> The SureColor S8170 printer features our latest-generation PrecisionCore® Micro TFP® printhead with nozzle verification technology that incorporates a temperature sensor to ensure reliable, high-quality prints and consistent color from print job to print job, panel to panel. Based on innovative Epson technology, this user-replaceable printhead saves time and effort. Delivering exceptional daily output at impressive speeds, the all-new SureColor S8170 is one of the most productive signage printers ever developed.
Overview
- Ultra-fast speeds — print speeds more than 20% faster 2 thanks to the latest generation 6.7 cm (2.64 in) PrecisionCore Micro TFP printhead
- Exceptional image quality — print head with integrated temperature sensor to ensure reliable, high-quality prints and consistent color from one print job to the next, from one panel to another
- UltraChrome GS3 6-color ink set — including light cyan and light magenta to reduce banding at high production speeds
- Designed for reliability — precise media feeding and tensioning mechanism that provides stable media handling and print accuracy
- Revolutionary design — compact, precise and efficient model inspired by the SureColor S9170 printer and featuring a user-friendly 10.9 cm (4.3 in) touchscreen for ease of use
- Multipurpose ink — choice of ink bag capacity combinations: 800 ml or 1500 ml
- Saves time and effort — user-replaceable solvent printhead designed to avoid production delays
- Nozzle Verification Technology (NVT) — a technology that automatically monitors and adjusts nozzle status to ensure stable operation and consistent print quality without media waste
- World-class service and support — one-year limited warranty for added peace of mind
- Advanced software — easy integration with the Epson Cloud Solution PORT®4 printer fleet monitoring system
Whats in the Box?
- SureColor S8170 Printer – Production Version
- Ink set: C, M, Y, K, Lc, Lm, (800 ml x2/each)
- ONYX Go Plus RIP (1 year subscription)
- Epson Edge Print PRO RIP
- Power cord (x2)
- Parts to be replaced: Wiper unit, Wash pad, Air filter (x2)
- Trolley with supports
- Residual ink container
- Ink cleaner
- Cleaning stick
- Brush for cleaning supports
- User kit
Printing Technology: PrecisionCore Micro TFP printhead featuring Nozzle Verification Technology and variable-sized droplet control
Ink Type: UltraChrome® GS3 eco-solvent ink
Ink Colours: C, M, Y, K, Lc, Lm
Nozzle Configuration: 9,600 nozzles: 1,600 nozzles x 6 colors
Maximum Resolution: 1200 x 1200 dpi
Minimum Ink Droplet Volume: Smallest Droplet Size: 4.4 picoliters; Variable Droplet Technology can produce up to three different sizes per line
Left/Right Margin (Roll Paper): 5 mm
Printer Language/Drivers: Epson ESC/P® raster
Memory: 4GB
Ink Pack Fill Volume: 800 mL or 1.5 ml
Ink Case: Ink Supply Unit
This printer is designed for use with genuine Epson packs only, not third-party packs or ink*.
Paper Path: Single roll
Paper Feed Method Friction feed
Maximum Roll Diameter 9.84" (250 mm)
Maximum Roll Weight 99.21 lb (45 kg)
Maximum Reel Diameter 9.84" (250 mm)
Paper Width (Roll) 11.81" to 64" (300 mm to 1,625.6 mm)
Paper Thickness (Roll) Less than 1 mm
Printer Interfaces: SuperSpeed USB 3.0 (1 port)
100Base-TX/1000Base-T Ethernet (1 port)
Operating Systems: Windows® 8.1 x64 or later, macOS® 10.7 or later
Epson Edge® Print PRO Minimum PC Requirements: Intel Core® i3 3.0 GHz CPU or faster, 8GB RAM or more, 50GB HDD or more (available during installation), DVD-ROM or Internet connection
ONYX® Go Plus Minimum PC Requirements:
Windows 10 Pro x64 or Windows 11 Pro x64, Intel® or
AMD multi-core CPU, 16GB RAM or more (32GB –64GB
recommended), 1280 x 1024 minimum display,
250GB HDD or more, Internet connection.
Control Panel 4.3" Optical Touch Color LCD
Weight and Dimensions (W x D x H)
Dimensions (Printing): 103.15" x 39.53" x 40.2"
(2,620 mm x 1,004 mm x 1,021 mm)
Dimensions (Stowed): 103.15" x 36.42" x 40.2"
(2,620 mm x 925 mm x 1,021 mm)
Weight: 750 lb (340 kg)
Acoustic Noise Level
Sound Power Level: Less than 7.9 B(A)
Sound Pressure Level: Less than 61 dB(A)
Temperature
Operating: 59 ˚F to 95 ˚F (15 ˚C to 35 ˚C)
Operating (Recommended): 68 ˚F to 89 ˚F (20 ˚C to 32 ˚C)
Storage: -4 ˚F to 140 ˚F (-20 ˚C to 60 ˚C)
Relative Humidity
Operating: 20% – 80% (no condensation)
Operating (Recommended): 40% – 60% (no condensation)
Storage: 5% – 85% (no condensation)
Safety Standards
U.S.A. and Canada (NRTL Certified, CSA/UL 62368-1)
Compliant with Class A requirements U.S.A. (FCC),
Canada (ICES-003)
Electrical Requirements
Printer requires two 110 V outlets
Voltage:
#1 AC 100 - 120 V/200 - 240 V (50/60 Hz)
#2 AC 100 - 120 V/200 - 240 V (50/60 Hz)
Rated Current:
#1 12 A/10 A
#2 12 A/10 A
Power Consumption
Operating:
Main Unit ~1100 W
Drying Fan ~45 W
Ready:
Main Unit ~520 W
Drying Fan ~1 W
Sleep:
Operating: Approximately 1350 W
Ready: Approximately 500 W
Sleep: Approximately 3.4 W
Power Off (Standby): Approximately 0.3 W
Country of Origin
China
