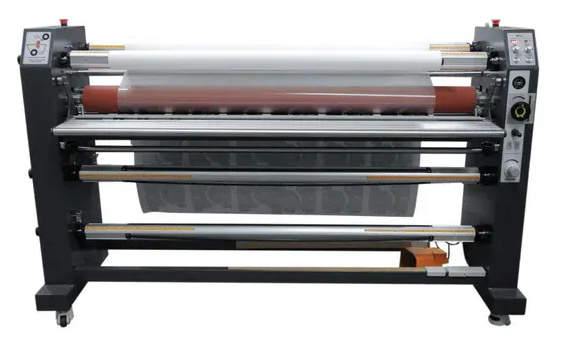

LaMounter 55H-PL
Pneumatic Laminator with Heat Assist
Key Features
Heavy Duty Motor – Fast lamination speeds of up to 20 feet per minute
Heat Assist – Helping to reduce cure times and eliminate ”Silvering”
Pneumatic Pressurized Rollers – Provides evenly distributed pressure across the nip
Crowned Silicon Rollers – Ensures proper tracking and lasts longer than rubber rollers
Operator Convenience – Rigid media guide crank, rear remote and foot pedal included standard
Roll-To-Roll Lamination – Integrated front feeder (x2) and rear rewinder
Specifications
| MAX. LAMINATING WIDTH | 55 inch |
|---|---|
| Maximum Speed | 20 ft/sec. (6m/sec.) |
| Heat Assist | Yes |
| Mounting | Up to 1" |
| Foot Pedal | Yes |
| Rigid Media Guide | 11 Settings (1/8" increments) |
| Rear Remote | Yes |
| Safety | Photoelectric Sensors |
| Shaft Size | Yes |
| Front Feeder | Media & Backing Paper |
| Rear Rewinder | Yes |
| Dimension | 87" x 30" x 55" |
| Weight | 618 lbs |
| Crate Dimensions | 91" x 40" x 71" |
| Crate Weight | 1058 |
