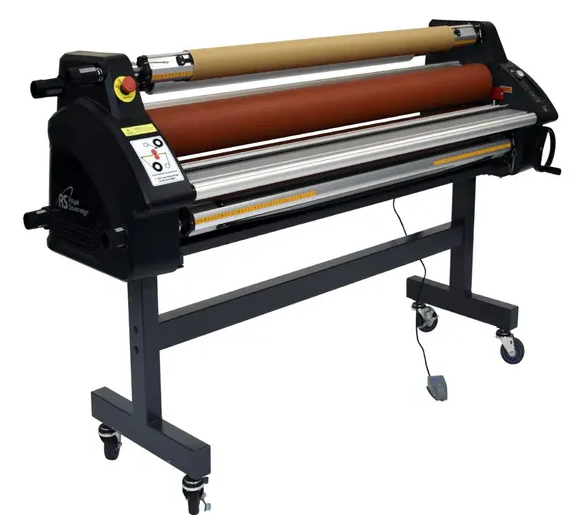

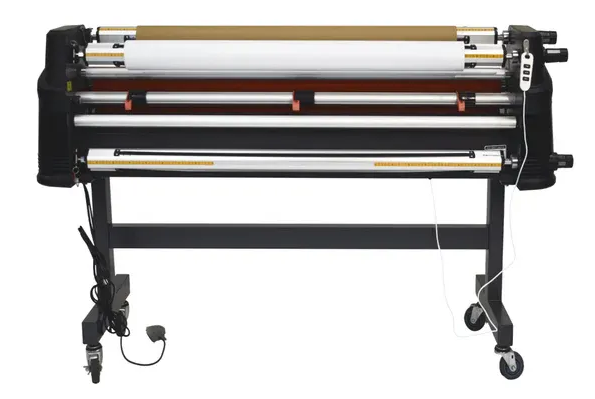

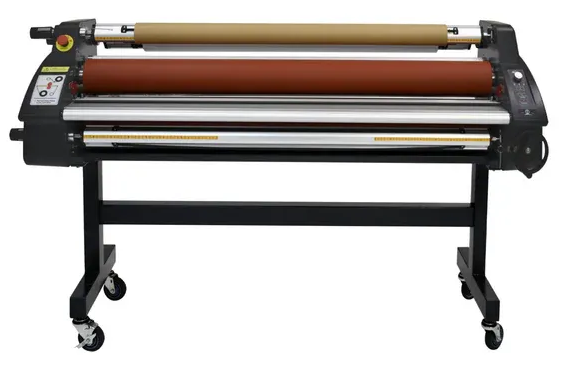

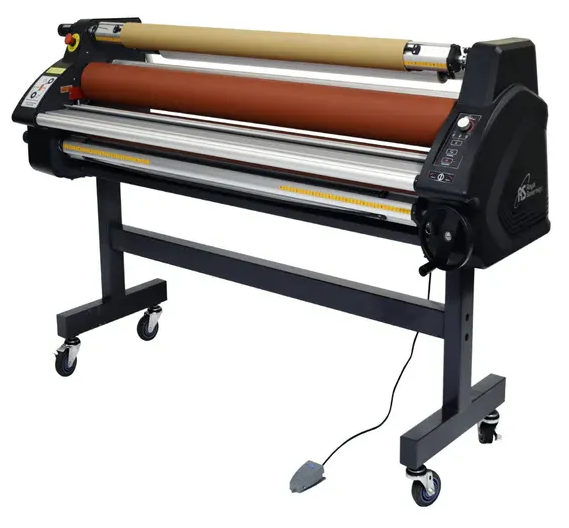

LaMounter 65H
Heat Assisted Cold Laminator
Key Features
- High Grade Silicone Rollers for Consistent Lamination
- Rear Slitters for Inline Print Separation
- Front Facing Roller Nip Adjustment Crank
- Maximum Speed of Just Over 49 ft/min
- Foot Pedal & Rear Remote Included
- Integrated Rear Material Rewinder
- Shaft Bar Roll Media Centering Guides
- Adjustable roller gap to 1 inch
Specifications
| MAX. LAMINATING WIDTH | 65 inch |
|---|---|
| Film Core Size | Auto Grip 3" |
| Drive Motor | AC |
| MAX. LAMINATING SPEED FT/MIN | 49.2 |
| TEMPERATURE | 140F |
| MOUNTING | 1" |
| TAKE-UP SYSTEM | Yes |
| SPEED CONTROL | Yes |
| REVERSE | Yes |
| COLD LAMINATION | Yes |
| CROSS CUTTER | No |
| REMOTE CONTROL | Yes |
| FOOT PEDAL | Yes |
| SLIDE SLITTERS | Three |
| DOCUMENT GUIDES | No |
| ENCAPSULATION | No |
| LINER TAKE UP | Yes |
| UNIT DIMENSION(IN.) | W 83" x D 25" x H 49" |
| UNIT WEIGHT | 419 lbs |
| CRATE DIMENSION(IN.) | W 86" x D 30" x H 57" |
| CRATE WEIGHT | 612 lbs |
| VOLTAGE | 120V |
| CONSUMPTION(WATTS) | 1600W |
| WARRANTY | 1 Year part & labor (Roller six months) |
