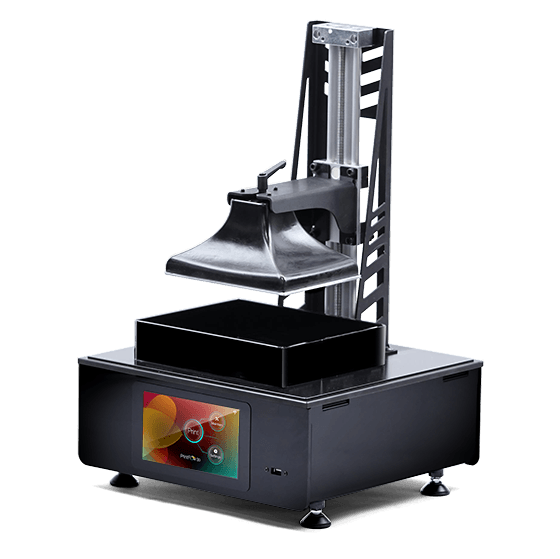

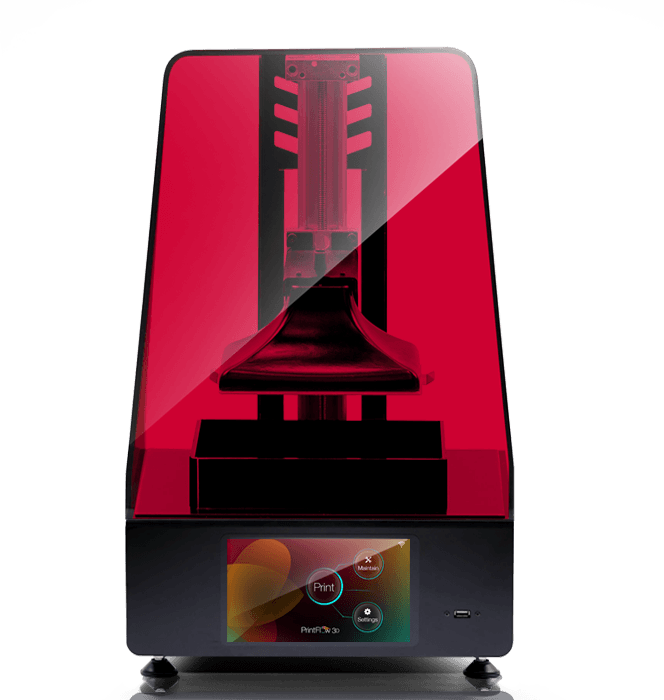

Liquid Crystal
HR2
New, upgraded HR2 with improved drive unit, auto homing, flex plate and new Photocentric Studio!

xy resolution 97 microns
Build volume 196 x 147 x 250 mm
User Guide
SOLID AND STRONG DRIVE UNIT
An upgraded, maintenance free drive unit features in the LC HR2. The unit enables increased accuracy over the height of the printer offering increased reliability to print both large, solid parts and small intricate details.

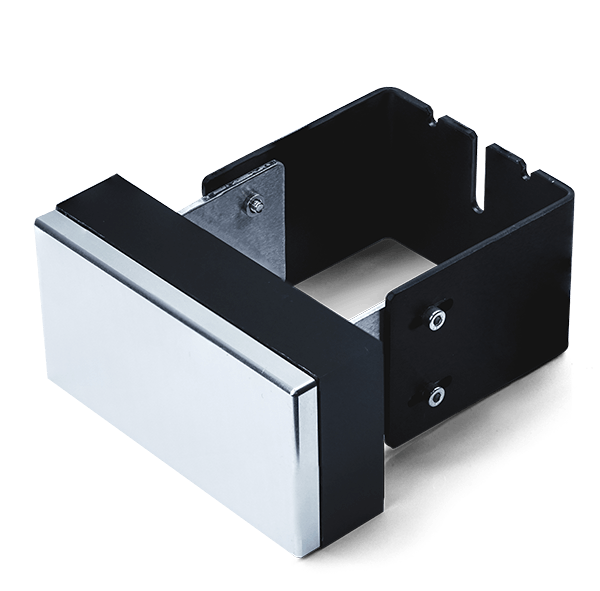

PRE-HOMED BUILD PLATFORM
the build platform is factory homed. Now there is no need to home the build platform before every print.

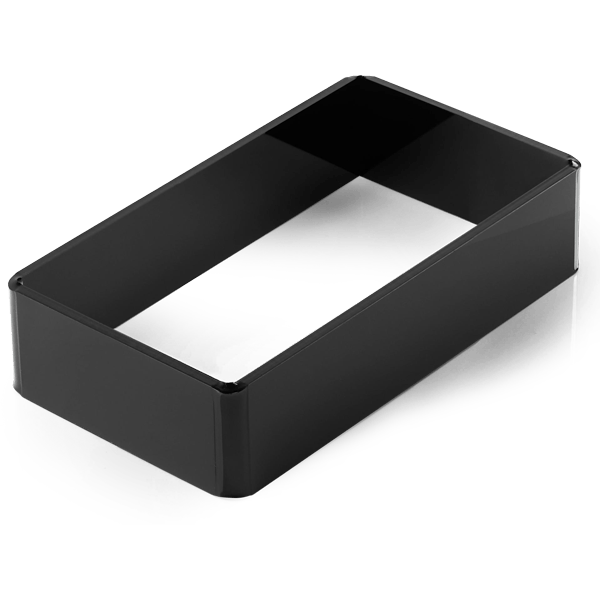

DISPOSABLE VAT SYSTEM
The printer is supplied with 2 disposable vats, eliminating the need for re-skinning and improving print performance. As the price is economical, you have a choice to either simply buy a new one or to re-skin the vat when needed.
SPECIFICATIONS

Technology
Daylight Polymer Printing

LCD Specification
9.7" (2048 x 1536px)

Build Volume
196 x 147 x 250mm
7.7 x 5.8 x 9.8"

Layer Thickness
50, 100 microns

Cure Speed at 100 micron
25-55 sec/layer depending on resin

XY Pixels Density
97 microns

Homing
Pre-set homing

Printer Control
Interactive 7" Touch-Screen

Connectivity
USB

Resin Fill System
Manual

Dimensions
38 x 35 x 59 cm
15 x 13.7 x 23"
(w x d x h)

Power Requirements
100-240V, UK/USA/EU Plug
PRINTER CONTENTS

Printer Hood
Power Supply
Power Adaptor
Build Platform
Disposable Vat x 2
Allen Key
Strainer x 5
Funnel
Spatula
Blue Nitrile Gloves- Medium x 2
250gr of Daylight Hard Cream Resin
Print Sample
Quick Instruction
USB Memory Stick
SOFTWARE

Built-in Printflow Controller
  • Version 0.66
  • Wifi/Ethernet Enabled
  • Storage Capacity: 11Gb

Photocentric Studio


Computer Requirements
  • Operating System Win 7, 8 or 10
  • Minimum 2.0 Ghz processor speed          2 cores. Recommended 4 cores
  • GPU capable of opening OpenGL            version 3.0 or higher
  • NET framework version 4.0
  • 64bit system: recommended 4GB
  • 32bit system: recommended 2GB
