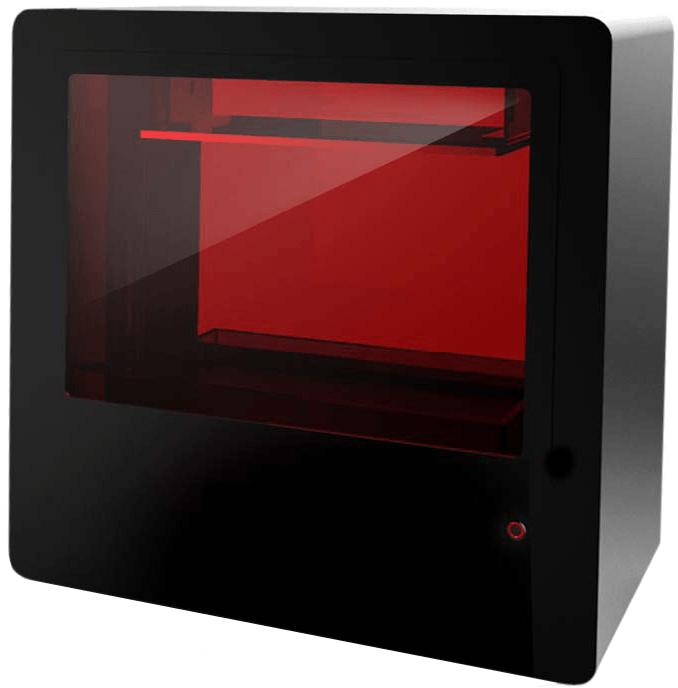

Liquid Crystal
PRO
Produce large high resolution objects at a fraction of the cost of other 3D printers.
xy resolution 137 microns
Build volume 470 x 240 x 340 mm

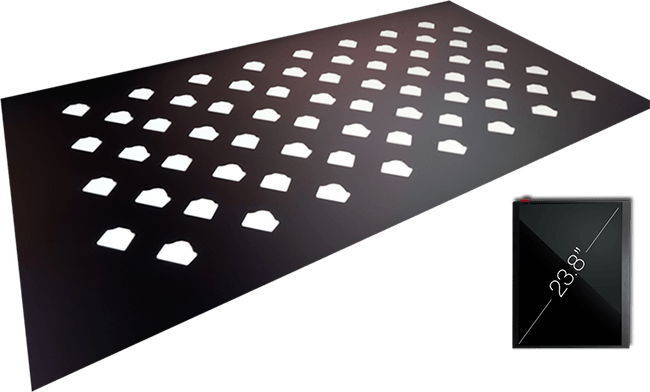

Liquid Crystal Display
Integral to the printer is the unmodified high resolution LCD panel used to cure the resin. While the XY panel size of 137 microns gives accuracy and fine detail, the high brightness and high contrast also contributes to building faithful representations of your 3D models.

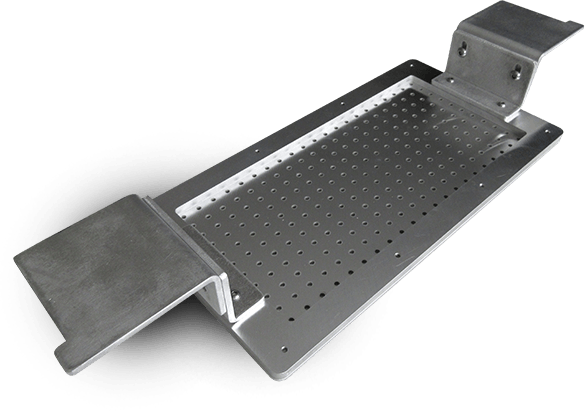

Large Print Plate
The Print Plate is made from an aluminum tooling plate to ensure flatness and resistance to corrosion. Perforated, it allows resin to flow and with its roughened finish it ensures a good print adhesive.

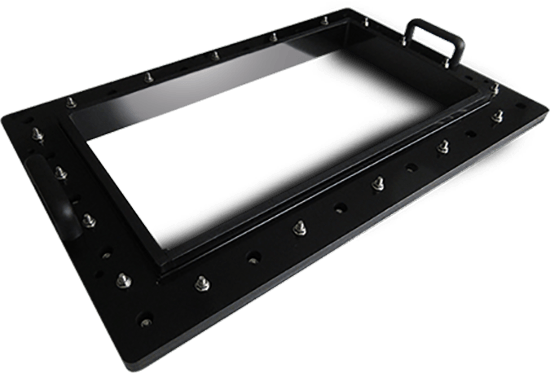

Durable Vat System
The skin of the vat is 100 micron FEP film with a flexible, non-srick surface to ensure a good release of the printed part from the screen. Being thick and durable, it'll last for days of printing and its two Neoprene gaskets ensure the vat is totally selaed. To guarantee performance consistency, the vat film and gaskets can be replaced as necessary for your hundreds of prints.

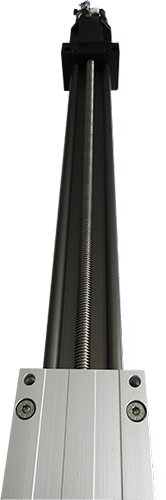

Solid and Reliable Drive Units
There are two maintenance-free drive units featured in the Liquid Crsytal PRO. Using 2mm pitch lead-screws and anti-backlash lead nuts for precision, they deliver repeatable positioning. Combined with the extruded rail profile preventing misalignment, they both provide twice the lifting power of the Liquid Crystal HR.
SPECIFICATIONS
Technology
Daylight Polymer Printing
LCD Specification
23.8″ (3840×2160 px)
Build Volume
470 x 240 x 340 mm
18.5 x 9.4 x 13.4 in
Layer Thickness
50, 100 microns
Cure Speed at 100 micron
50-100 sec/layer (resin dependent)
XY Pixels Density
137 microns
Homing
Pre-set homing
Printer Control
Interactive 7" Touch-Screen
Connectivity
USB, Display Port
Resin Fill System
Manual
Dimensions
82 (W) × 74 (H) × 49 (D) cm
33 (W) × 29 (H) × 20 (D) in
Power Requirements
100-240V, UK/USA/EU Plug
PRINTER CONTENTS
Scraper
Rachet Socket Wrench
Nut Socket
Allen Key
Funnel
Paper Strainer x 10
Spray Bottle
Nitrile Gloves x 4
Vat Film Pack sub-assembly
Gasket pack sub-assembly
5 Kg Pro Hard Black resin
2 VAT film replacement
USB Cable
Display Port Cable
AC Cable
Printer Instructions
SOFTWARE
Built-in Printflow Controller
- Version 0.66
- Wifi/Ethernet Enabled
- Storage Capacity: 11Gb
Photocentric Studio
Computer Requirements
- Operating System Win 7, 8 or 10
- Minimum 2.0 Ghz processor speed 2 cores. Recommended 4 cores
- GPU capable of opening OpenGL version 3.0 or higher
- NET framework version 4.0
- 64bit system: recommended 4GB
- 32bit system: recommended 2GB
