Bookeye® BE4-V1A
Bookeye ® BE4 V1A is the professional solution for digitization projects that require high quality images at maximum productivity, while eliminating strenuous, repetitive tasks required of an operator to get the job done.
  • 600 dpi optical resolution
  • 50,000 hr lamp life
  • Book fold correction
  • Gigabit wired
  • V-shaped cradle 120-180 degrees
  • 27" preview screen

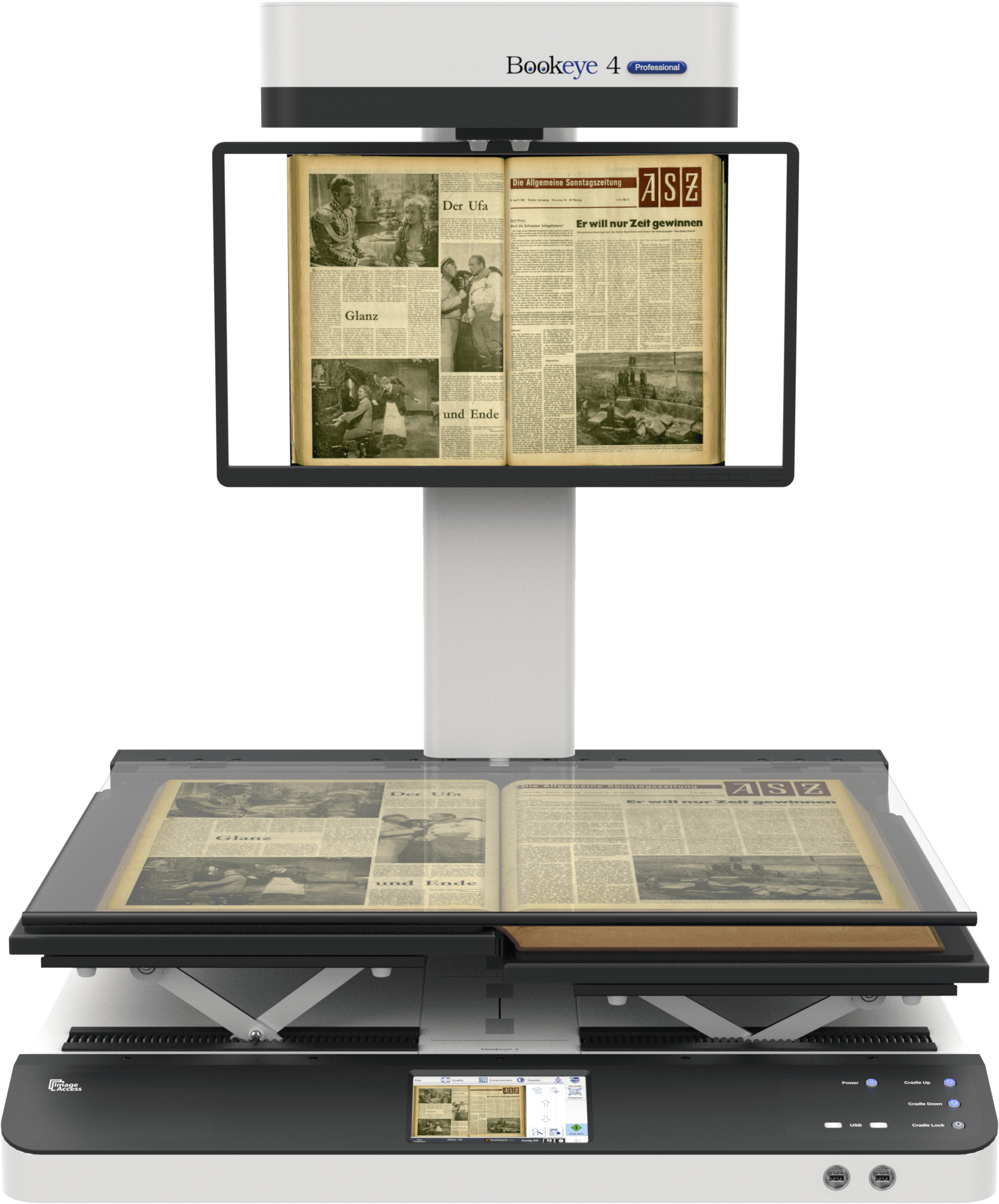

The flagship in the Bookeye® 4 family of book scanners is the Bookeye® 4 V1A book scanner. Scanning A1+ formats at 600 dpi scanner resolution, the Bookeye® 4 V1A features an automatic book cradle with up to 10 cm height adjustment, a glass plate that opens automatically and of course the 140 degree V-book cradle. Bookeye® 4 V1A is the world`s only working A1+ overhead book scanner that accommodates both flat documents - with or without the glass plate; as well as large, fragile bound documents, using the protective V cradle.
Overview
Originals up to A1+, such as books, magazines, posters, folders or bound documents of all kinds can be digitized by the Bookeye® 4 V1A at high speed and a resolution of 600 dpi.

A high-performance production scanner is dependent on a strong capturing software.
Image Access has four powerful software packages in its portfolio for Bookeye® 4 V1A which enable optimal capture for large projects.

Bookeye® 4 V1A is the world´s first and only A1+ scanner that accommodates both flat documents - with or without the glass plate; as well as large, fragile bound documents, using the protective V cradle.

Bookeye® 4 V1A is suitable for digitization projects that require high quality and maximum productivity, even in 24/7 operation. Originals up to A1+, such as books, magazines, posters, folders or bound documents of all kinds, can be digitized by the Bookeye® 4 V1A at unsurpassed scanning speed.

SCAN2PAD® OPTION
The Scan2Pad® option enables wireless connection of the Bookeye® BE4-V3 Kiosk directly to mobile devices like iPads and Android tablets. The book scanner can be operated directly from your iPad or tablets and the scanned images are available immediately on the mobile device for further processing and storage.

Scan2Pad uses the extensive functionality of the Bookeye® BE4-V3 Kiosk scanner. This includes creation of PDF files, automatic size recognition of the source document, color, grayscale and black and white scanning and of course, the well known high quality image results.

Each document is stored immediately after scanning in the Scan2Pad app. This ensures that all images are available without connection to the scanner at any time.

BOOKEYE® BE4 V3 KIOSK FEATURES
  •     LED lamps, no warm up, IR/UV free
  •     Large color WVGA touchscreen for simplified operation
  •     User interface configurable in your language
  •     Large 27 inch 4K preview screen
  •     Virus resistant Linux operating system
  •     OS independent, runs with Windows 7, 8, 10, Linux, Mac
  •     ScanWizard uses any browser: IE, Safari, Chrome, Firefox
  •     Scan2Net®-technology
  •     Easy installation
  •     Remote maintenance and analysis
  •     Web based firmware updates
  •     Includes 12 months Full Coverage Warranty

BOOKEYE® BE4 V3 KIOSK FUNCTIONS
  •     Color overhead scanner for formats up to A1+ (also available as grayscale system)
  •     Exceeds FADGI ** guidelines, ISO 19264-1
  •     600 x 600 dpi scanner resolution
  •     Open client interface for operation with BSW, BCS-2, Opus FF
  •     V-shaped book cradle 140 - 180 degrees
  •     Motorized cradle with lift up to 10 cm
  •     Glass plate for perfect scans in flat mode
  •     Book Fold Correction - Scan bound documents without annoying shadows
  •     AUTO-Mode for automatic scanning and opening of glass plate after scanning operation
  •     Automatic finger and thumb removal
  •     Automatic Crop & Deskew
  •     Digital color balance
  •     Integrated ICC-profile
  •     Automatic white balance and black value
  •     Scan2USB -- Walk-up Scanning to USB Stick
  •     Scan2Print -- Copy to networked printers or hot folders
  •     Scan2Network -- Output to network resources, SMB, FTP
  •     Scan2Pad -- Operation via tablets or other mobile devices
  •     Output formats: PDF, PDF/A, JPEG, TIFF, PNM, multipage PDF and TIFF, DICOM and many more
BOOKEYE® BE4 V2 KIOSK OPTIONS
  •     Foot Switch -- Hardware option for batch scanning
  •     Scan2ICC -- Subscription for ICC color management and profiles
  •     Scan2TWAIN -- TWAIN driver for Client-Interface
  •     Scan2OCR -- Background OCR option for Scan2Net scanners (Only in connection with ScanWizard)
  •     Full Coverage Warranty -- Up to 5 years subscription for full coverage warranty package and free spare parts
Specifications
Maximum Document Size

Scanner Resolution:

Optical Resolution:

Pixel Dimension:

Scan Speed Colour:




Color Depth:

Scan Output:

File Formats:



Computer:


Touch Screen

Monitor

Interface:

Camera:

Light Source:

Lamp Life:

Dimensions Scanner:

Weight Scanner:

Electrical Connection:


Power Consumption:

Operating Temp:

Rel Humidity:

Noise:
635 x 850 mm (25 x 33.5 inch), 8% more than DIN/ISO A1

600 x 600 dpi

600 dpi

9.3 x 9.3 µm

DIN A1 @ 150 dpi: 1.8 s
DIN A1 @ 200 dpi: 2.3 s
DIN A1 @ 300 dpi: 5.3 s
DIN A1 @ 400 dpi: 7.0 s

36 bit colour, 12 bit grayscale,

24 bit colour, 8 bit grayscale, bitonal, enhanced halftone

Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu,
DICOM, PCX, Postscript, EPS, Raw data

64 bit Linux, Intel i3, quad core processor,
8 Gigabyte RAM, 320GB HDD for extra large jobs

7" colour WVGA touchscreen

27" wide preview screen

1 GBit Fast Ethernet with TCP/IP based

CCD camera

White LEDs, according IEC 60825-1: class 1, no IR/UV emission

50,000 h (typ.)

1100 x 880 x 855 mm (43.3 x 34.6 x 33.7

~40.5 kg (90 lbs.)

100-240 V AC, 47 - 63 Hz (external power supply, complies with ECO standard CEC level V)

≤ 0.5 W (Sleep) / 2.5 W (Standby) /75 W (Ready to scan) / 130 W (Scanning)

5 to 40 °C, 40 to 105 °F

20 to 80 % (non-condensing)

< 42 dB(A) (Scanning) / < 33 dB(A) (Standby)
