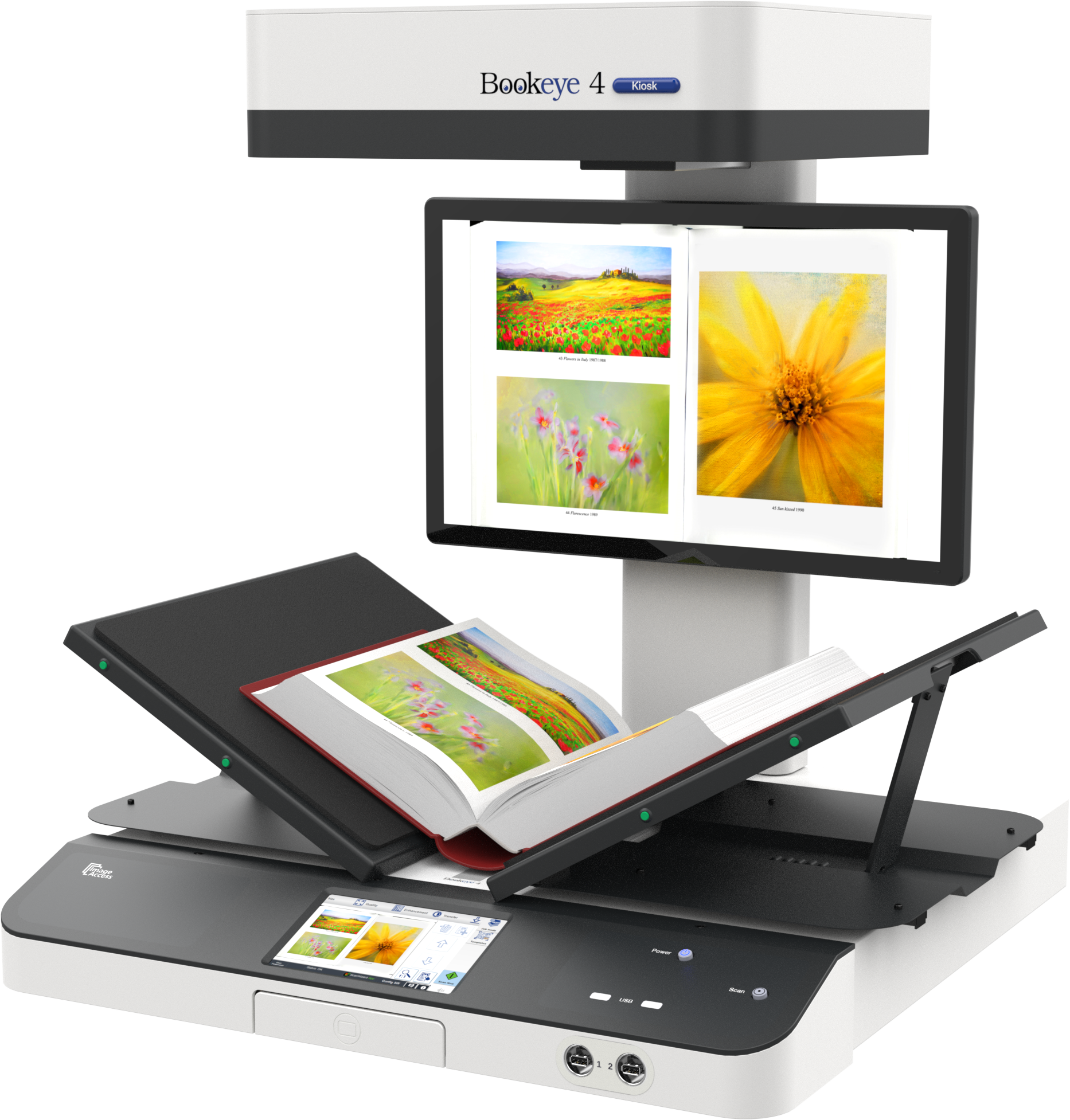

Bookeye® BE4-V2 Kiosk
Bookeye ® BE4-V2 Kiosk was designed specifically as a self service book scanner or self service book copier. A casual user, from any walk of life, can quickly and easily operate this device.
  • 400 dpi optical resolution
  • 50,000 hr lamp  life
  • Book fold correction
  • Gigabit wired
  • V-shaped cradle 120-180 degrees
  • 19" preview screen
In libraries, archives and other public institutions, the Bookeye® BE4 V2 Kiosk is often found as an integral part of the infrastructure. Through the freely configurable touchscreen, the user interface of the scanner can be precisely matched to the requirements of the customers (and to their corporate identity).

The unique book cradle solution allows users to digitize bound documents at a resolution of 400 dpi and A2+ in size, by either lying them flat on the scanning bed or in the V-cradle, at an angle of 120 degrees.
Overview
In libraries, archives and other public institutions, the Bookeye® BE4 V2 Kiosk is often found as an integral part of the infrastructure. Through the freely configurable touchscreen, the user interface of the scanner can be precisely matched to the requirements of the customers (and to their corporate identity).

An integrated 19 inch preview monitor allows the operator to control image quality and make some modifications on the fly. Scanned images can be output to USB, eMail, network, printer or on a mobile device like an iPad or Anrdoid tablet.

BOOKEYE® BE4 V2 KIOSK DOES THE ACCOUNTING FOR YOU!
The Bookeye® BE4 V2 Kiosk copier has an integrated billing module. This means that for all applications that do not have an existing card or billing system, Bookeye® BE4 V2 Kiosk can take over the billing itself. Configurable invoice printing and journalling are standard functions in the Bookeye® 4 V2 Kiosk as well as the remote locking / unlocking of the system.

For applications that do have an existing card or billing system, the Bookeye® 4 V2 Kiosk integrates with its billing interface. Examples of these kinds of billing systems include Schomäcker, Cartardis, Höhr or InterCard. For kiosk systems that can be operated offline, there is also the possibility of connecting a coin operation device.

SCAN2PAD® OPTION
The Scan2Pad® option enables wireless connection of the Bookeye® BE4-V3 Kiosk directly to mobile devices like iPads and Android tablets. The book scanner can be operated directly from your iPad or tablets and the scanned images are available immediately on the mobile device for further processing and storage.

Scan2Pad uses the extensive functionality of the Bookeye® BE4-V3 Kiosk scanner. This includes creation of PDF files, automatic size recognition of the source document, color, grayscale and black and white scanning and of course, the well known high quality image results.

Each document is stored immediately after scanning in the Scan2Pad app. This ensures that all images are available without connection to the scanner at any time.

BOOKEYE® BE4 V3 KIOSK FEATURES
  • LED lamps, no warm up, IR/UV free
  • Large color WVGA touchscreen for simplified operation
  • User interface configurable in your language
  • Large 19 inch preview screen
  • Pad holder for a secure place to put your iPad, Android tablet or smartphone
  • Virus resistant Linux operating system
  • OS independent, runs with Windows 7, 8, 10, Linux, Mac
  • Network scanning via any web browser; i.e. IE, Safari, Chrome, Firefox
  • Scan2Net®-technology
  • Easy installation
  • Remote maintenance and analysis
  • Web based firmware updates
  • including 12 months Extended Warranty
BOOKEYE® BE4 V3 KIOSK FUNCTIONS
  • Color overhead scanner for formats up to A2+
  • 400 x 400 dpi scanner resolution
  • V-shaped book cradle 120 - 180 degrees
  • Book Fold Correction - Scan bound documents without annoying shadows
  • Automatic finger and thumb removal
  • Automatic Crop & Deskew
  • Integrated billing module
  • Digital color balance
  • Integrated ICC-profile
  • Automatic white balance and black value
  • Scan2USB -- Walk-up Scanning to USB Stick
  • Scan2Print -- Output to any connected printer
  • Scan2Network -- Output to any network driver
  • Scan2Pad -- Wireless scanner operation and storage for iPad, Android
  • Output formats: PDF, PDF/A, JPEG, TIFF, PNM, Multipage PDF
BOOKEYE® BE4 V2 KIOSK OPTIONS
  • Foot Switch -- Hardware option for batch scanning
  • Upgrade Client-Interface & 600 dpi -- Software option to production scanner
  • Scan2ICC -- Subscription for ICC color management and profiles
  • Scan2TWAIN -- TWAIN driver for Client-Interface & 600 dpi)
  • Extended Warranty --Up to 5 years subscription for extended warranty package and free spare parts
Specifications
Maximum Document Size

Scanner Resolution:

Optical Resolution:

Pixel Dimension:

Scan Speed Colour:




Color Depth:

Scan Output:

File Formats:

Computer:


Interface:

Camera:

Light Source:

Lamp Life:

Dimensions Scanner:

Weight Scanner:

Electrical Connection:


Power Consumption:

Operating Temp:

Rel Humidity:

Noise:
460 x 620 mm (18 x 24.4 inch), 14% more than DIN/ISO A2

400 x 400 dpi

400 dpi

9.3 x 9.3 µm

DIN A2+ @ 150 dpi: 1.2 s
DIN A2+ @ 200 dpi: 1.6 s
DIN A2+ @ 300 dpi: 3.4 s
DIN A2+ @ 400 dpi: 4.6 s

36 bit colour, 12 bit grayscale,

24 bit colour, 8 bit grayscale, bitonal, enhanced halftone

PDF, PDF/A, JPEG, PNM, TIFF uncompressed, TIFF G4 (CCITT), Multipage PDF, TIFF

64 bit Linux, Intel i3, quad core processor,
8 Gigabyte RAM, 320GB HDD for extra large jobs

1 GBit Fast Ethernet with TCP/IP based Scan2Net(R) interface

CCD camera, 22,500 pixels

White LEDs, according IEC 60825-1: class 1, no IR/UV emission

50,000 h (typ.)

780 x 670 x 670 mm (30.7 x 26.4 x 26.4 inch) (H x W x D)

~40.5 kg (90 lbs.)

100-240 V AC, 47 - 63 Hz (external power supply, complies with ECO standard CEC level V)

≤ 0.5 W (Sleep) / 2.5 W (Standby) / 130 W (Scanning)

5 to 40 °C, 40 to 105 °F

20 to 80 % (non-condensing)

< 42 dB(A) (Scanning) / < 33 dB(A) (Standby)
