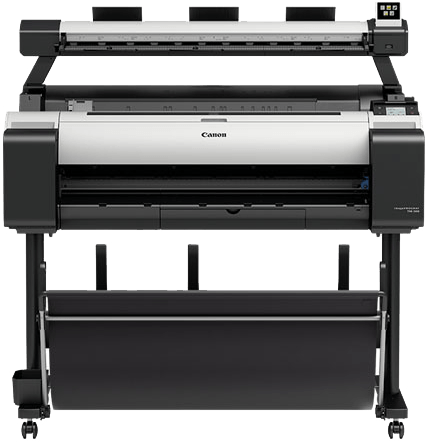

imagePROGRAF TM-300 L36ei
The Canon imagePROGRAF TM-300 MFP L36ei, large format imaging system is an affordable scan-to-copy/file system for low-volume and entry-level users. With a 36" wide scanner the TM-300 MFP L36ei is ideal for low-volume subcontractors, primary education, design offices, architectural firms and reproduction businesses.
- PRINT, SCAN AND COPY
- 36" (914MM) PRINT WIDTH
- 5 COLOUR PIGMENT INK SET
- USB2.0, GIGABIT WIRED, WIRELESS
- PRINT, SCAN AND COPY
- 36" (914MM) PRINT WIDTH
- 5 COLOUR PIGMENT INK SET
- USB2.0, GIGABIT WIRED, WIRELESS
The lightweight scanner and compact design allow for easy installation in even the smallest environments. The user-friendly control panel has picture icons for easy identification of the scanner operations. Simply scroll left or right to view the different icons, make your selection and press the Green Button!
Not just offering scan-to-copy, this imaging system also gives you the ability to scan to USB, scan to copy and archive, scan to multipage PDF and scan to your PC as well as reduce and enlarge images.
Overview
LUCIA TD Pigment Ink Set
The TM-300 device features an all-new 5-color TD pigment ink set. This ink was formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper. Combine this pigment ink with water resistant media and you have a printed drawing that can withstand many outdoor conditions, especially outdoor job sites such as construction sites. Available in 130 ml or 300 ml ink tanks. 490 ml of ink ships standard with the TM-300.
L36ei Scanner
The L36ei scanner incorporates a SingleSensor assembly technology, which helps provide consistent and better color accuracy with more detail in the shadows and highlights than a staggered CIS array scanner.
- Touch Screen Operation Panel
- 600 dpi optical resolution
- Image scanning of up to 24” wide, fits documents 26” wide
- Scanning speed of up to 3 inches per second monochrome, 1 inch per second color
- Scan length of up to 109"
- 3 Quality Modes: Draft, Standard and Best
- Scan documents up to .5 mm thick
- Face up / Rear exit
- Straight paper path
The L36ei scanner contains a single component image sensor that is the full width of the scanner and has long life LED Bi-directional illumination. Full width image capture, as opposed to time delayed scanning of separate sections, means less risk of misalignment of scan data. LED’s require virtually no warm up time and provide a wide and consistent color gamut, with low power consumption and less potential for shadowing at creases or folds.
TM-300 Large Format Printer
The TM Series is redefining what a Large-format printer is capable of. The TM-300 printer is not only ideal for printing technical documents, CAD drawings and GIS maps, but also posters, signage and displays with the use of Canon's LUCIA TD water resistant pigment ink. Built with Canon developed technologies; 5-color LUCIA TD pigment ink, PF-06 print head, L-COA PRO image processor, along with a clear, intuitive operation panel and nearly 60% quieter than previous models, this printer is an easy choice for the architectural, engineering and construction industries as well as office environments.
New Operation Panel
The TM-300 features a 3" color touchscreen operation panel making it easy to view printer information as well as perform simple operations.
Fast Printing
With faster printing of multipage files, the TM Series can print up to 144 D sized prints per hour
Quiet Operation
The TM-300 is well suited for busy office environments as it is 60% quieter than previous imagePROGRAF printers and offers less distraction in the workplace.
Small Footprint
A good fit for small offices, the compact TM-300 has a small footprint for a large format aqueous inkjet printer.
Wifi Compatible
Printing jobs quickly is critical on the work site and in the office. The Wi-Fi connectivity can transfer technical drawing files and help speed up your workflow- perfect for high-volume printing. No Wi-Fi router is needed, which can provide greater freedom during installation.
Sub Ink Tank System
The Sub-Ink Tank System allows virtually all of the available ink in a tank to be used before having to replace it, helping to eliminate wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.
Security Features
The TM Series large-format printers come equipped with several security features designed to help prevent leaks of confidential information:
Secure Communication
- 802.1x Authentication
- SNMPv3
- SSL/TLS
- IPSec
Functionality Restrictions
- Panel Lock by Remote UI
- Remote UI Multilevel
- Hide IP From Panel
- Panel Access Control
- Job Storage and PIN Printing
Secure Storage
- Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)
The following functions can be disabled in administrator mode:
- Direct USB Thumb Drive Printing
- Internet Connection
- FTP and Telnet communication protocols
- Job Log Look-up
Software
TM Unified Printer Driver
The TM Unified Printer Driver allows users to print to any imagePROGRAF TM Series device, without the need to install additional drivers for each model. This helps make it a hassle-free installation process for multiple devices within the same environment.
The Windows® driver and Macintosh® driver incorporate simplified page setup options, one-touch borderless printing, expanded color settings, and much more into a printer driver that is intuitive and easy-to-operate while still giving even the most advanced users the tools needed to help stay productive.
Direct Print and Share
Sharing ideas has never been easier with Canon's Direct Print & Share software. Direct Print and Share is a cloud portal and batch printing solution that helps you to expand your printing workflow. This software allows you to upload documents to your cloud account using any WebDAV compliant cloud service, and print the uploaded documents from almost anywhere. Easily share and/or print .cpfx PosterArtist, PDF, TIFF, JPEG, and HP-GL/2 files, through the user-friendly interface. In addition, you can set-up hot folders on your desktop by clicking the Shortcut Print feature. Then drag and drop the files you wish to print into these folders and the job will start automatically. You can even set up multiple folders, each with their own customized settings, allowing for multiple jobs to be run with ease. Thumbnail previews of multipage images and multipage printing of PDFs can also be done with this software.
Accounting Manager
Canon imagePROGRAF Accounting Manager tracks how much ink and media is being consumed while printing. Costs can be assigned to ink and paper to determine expenses based on “Cost of goods”. You can also input a variable cost that will be added to the total of the cost per print. The data is exportable to a .csv format for Microsoft Excel, from there the data can be used for billing purposes.
- Accounting Features:
- Log Recording Time
- Job Name
- Client Job ID
- Client Job Submission Time
- Job Execution Time
- Job Completion Time
- Job Completion State
- Media Type
- Number of completed pages
- Media consumption area per job
Free Layout Plus
New! Nest, tile and create custom layouts before printing your files with this print utility. Use the plug-in feature to print directly from Microsoft Office programs.
AutoCad Optimized Printer Driver
This specialized driver is compatible with a variety of AutoCAD software products and helps enable optimal printing productivity and reliability from the AutoCAD software. Through this module, the processing and printing time associated with printing AutoCAD files to the imagePROGRAF printer is decreased to approximately one-third of the time associated with printing AutoCAD files through the previous Canon HDI Driver! The module also has a user-friendly interface that includes familiar features such as free layout, test printing, and 1200 dpi rendering. This module is automatically loaded when printing is attempted from AutoCAD, helping to ensure a smooth workflow with optimal printing results each time.
Apple AirPrint
The TM Series supports Apple AirPrint, Apple's future standard output process. This application allows users to output from various applications on mobile devices, without specialized drivers and output applications. There are currently no restrictions on file types, so it is now easier than ever to print full quality photos and documents from most Apple products including your Mac®, iPhone®, iPad®, or iPod®. It also features easy discovery, automatic media selection, and enterprise-class finishing options.
Poster Artist Lite
Canon's included PosterArtist Lite poster creation software gives users the ability to quickly and easily create professional large format prints and now supports the creation of multilingual posters and tiling! Users simply follow the program's four (4) easy steps to create posters that can be used in applications such as office Presentations, Trade shows, Retail Signage, and much, much more. The PosterArtist QuickCopy* feature provides an easy solution for a CanoScan desktop scanner to be used as a copier, making letter-size flyers and documents into full-size posters with a touch of a button.
* Compatible with PosterArtist and PosterArtist Lite.
Device Management Console
This software allows users to continually monitor information such as the printer status and colors being used to print. It also allows printer administrators to centrally control multiple networked printers at once. This utility software displays the acquired printer information in a neat list for easy visibility. Printer administrators can be notified via email when an error or warning occurs. No more hassles to get to an installation site of a printer to check on the amount of ink remaining. Printer administrators can now simply check the amount of consumables remaining for networked printers by operating DMC software from their own personal computer. You can monitor the status of up to 50 TX Series printers!
Media Configuration Tool
Recognizing the expanding array of media options for large format printers and to further improve the versatility of these new imagePROGRAF models, Canon has developed a Media Configuration Tool, which allows customers to not only utilize Canon-branded media, but provides the ability to make adjustments to printer settings to enhance the precision and quality of output achieved with third party media.
Settings that can be configured using media parameter adjustment features include:
- Media weight and thickness
- Ink drying
- Automatic cutting settings
- Borderless printing
- Paper feed amount
- Print-head height
- Vacuum strength
- Maximum ink usage
