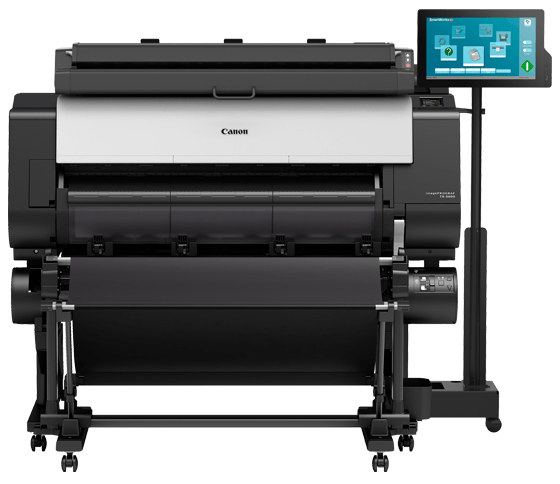

imagePROGRAF TX-3000 MFP T36
The 36-inch imagePROGRAF TX-3000 MFP T36 is a new Scan-To-Copy/File/Share integrated solution from Canon that includes an integrated printer, T36 scanner and All-In-One Computer that can work independently to improve your workflow. With increased scan speeds and advanced software capability this solution has everything needed to copy, scan, archive and share maps, drawings, renderings and posters.
- UP TO 147 'D' SIZE PRINTS PER HOUR
- PRINT, SCAN AND COPY
- 36" (914MM) PRINT WIDTH
- 5 COLOUR PIGMENT INK SET
- USB THUMB DRIVE PRINTING
- USB2.0, GIGABIT WIRED, WIRELESS
- UP TO 147 'D' SIZE PRINTS PER HOUR
- PRINT, SCAN AND COPY
- 36" (914MM) PRINT WIDTH
- 5 COLOUR PIGMENT INK SET
- USB THUMB DRIVE PRINTING
- USB2.0, GIGABIT WIRED, WIRELESS
All the core technologies of the imagePROGRAF TX Series printers are new, including the ink system, the print head, and the mechanical platform. These printers satisfy the needs of the high-volume CAD and low-volume LED plotter markets with print quality, usability, security, and print speeds up to 147 D-sized prints per hour.
The T36 scanner incorporates a SingleSensor Technology Assembly, which helps provide consistent and better colour accuracy with more detail in the shadows and highlights than a staggered CIS array scanner††. Features • Scanning speed of up to 13 inches per second monochrome, 6 inches per second colour • Scan documents up to 2.0 mm thick • Face up / Front load / Rear exit • Straight paper path
Overview
Scan-to-Copy/File/Share/Cloud Solution
The imagePROGRAF TX-3000 MFP T36 includes†: T36 Scanner, TX-3000 36-inch printer, Stacker, SmartWorks MFP software, All-in-One HD Multi-Touch PC, MFP stand
TX Stacker
The new TX Stacker can stack up to 100 sheets of ARCH C, ARCH D, or ARCH E/E1 page sizes for increased productivity.
T36 Scanner
The T36 scanner incorporates a SingleSensor Technology Assembly, which helps provide consistent and better colour accuracy with more detail in the shadows and highlights than a staggered CIS array scanner††.
Features • Scanning speed of up to 13 inches per second monochrome, 6 inches per second colour • Scan documents up to 2.0 mm thick • Face up / Front load / Rear exit • Straight paper path
SmartWorks MFP Software
SmartWorks MFP software gives you the tools you need to quickly and easily scan to print/file/share large format technical documents. With a simple to use interface and scan-it-once ability, this software allows for efficient batch scanning and helps create quality scanned images that can be produced in a short amount of time. You can scan to PDF, TIFF and JPEG file formats. SmartWorks MFP software is more efficient than ever before.
Features:
• Scan-to-Multipage PDF • Scan lengths of up to 315” (26 ft) for PDF and JPEG files, and up to 598” (50 ft) for TIFF files • Ability to add custom presets with one-touch retrieval for those often-used settings • Image enhancements for white point adjust, black point adjust, sharpen, mirror, and invert • Fine detail scan feature • Enhanced administrator rights • Full integration with Canon Direct Print & Share cloud software.
All-in-One 15.6" Touchscreen Computer
The large, colour 15.6-inch flat panel HD touch screen makes it easy for users to preview and edit scanned images. The easy-to-use touch screen equipped with ten finger multi-touch technology makes one-button scanning/copying easier than ever, and the built-in USB ports allow users to load files to the hard drive of the PC for simple file management.
Direct USB Thumb Drive Printing
JPEG and PDF files can be directly printed from the TX-3000. Simply load your files onto your USB drive, step right up to the printer and plug your USB drive into the port.
500GB Hard Drive
A built-in 500GB hard drive within the printer can increase productivity by relieving workload from the host computer, while providing a large capacity for print job data storage and retrieval.
Wifi Compatible
Printing jobs quickly is critical on the work site and in the office. The Wi-Fi connectivity can transfer technical drawing files and help speed up your workflow- perfect for high-volume printing. No Wi-Fi router is needed, which can provide greater freedom during installation.
Sub Ink Tank System
The Sub-Ink Tank System allows virtually all of the available ink in a tank to be used before having to replace it, helping to eliminate wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.
Security Features
The TM Series large-format printers come equipped with several security features designed to help prevent leaks of confidential information:
Secure Communication
- 802.1x Authentication
- SNMPv3
- SSL/TLS
- IPSec
Functionality Restrictions
- Panel Lock by Remote UI
- Remote UI Multilevel
- Hide IP From Panel
- Panel Access Control
- Job Storage and PIN Printing
Secure Storage
- Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)
The following functions can be disabled in administrator mode:
- Direct USB Thumb Drive Printing
- Internet Connection
- FTP and Telnet communication protocols
- Job Log Look-up
Software
SmartWorks MFP Software
SmartWorks MFP software gives you the tools you need to quickly and easily scan to print/file/share large format technical documents. With a simple to use interface and scan-it-once ability, this software allows for efficient batch scanning and helps create quality scanned images that can be produced in a short amount of time. You can scan to PDF, TIFF and JPEG file formats. SmartWorks MFP software is more efficient than ever before.
Features:
• Scan-to-Multipage PDF • Scan lengths of up to 315” (26 ft) for PDF and JPEG files, and up to 598” (50 ft) for TIFF files • Ability to add custom presets with one-touch retrieval for those often-used settings • Image enhancements for white point adjust, black point adjust, sharpen, mirror, and invert • Fine detail scan feature • Enhanced administrator rights • Full integration with Canon Direct Print & Share cloud software.
TM Unified Printer Driver
The TM Unified Printer Driver allows users to print to any imagePROGRAF TM Series device, without the need to install additional drivers for each model. This helps make it a hassle-free installation process for multiple devices within the same environment.
The Windows® driver and Macintosh® driver incorporate simplified page setup options, one-touch borderless printing, expanded color settings, and much more into a printer driver that is intuitive and easy-to-operate while still giving even the most advanced users the tools needed to help stay productive.
Direct Print and Share
Sharing ideas has never been easier with Canon's Direct Print & Share software. Direct Print and Share is a cloud portal and batch printing solution that helps you to expand your printing workflow. This software allows you to upload documents to your cloud account using any WebDAV compliant cloud service, and print the uploaded documents from almost anywhere. Easily share and/or print .cpfx PosterArtist, PDF, TIFF, JPEG, and HP-GL/2 files, through the user-friendly interface. In addition, you can set-up hot folders on your desktop by clicking the Shortcut Print feature. Then drag and drop the files you wish to print into these folders and the job will start automatically. You can even set up multiple folders, each with their own customized settings, allowing for multiple jobs to be run with ease. Thumbnail previews of multipage images and multipage printing of PDFs can also be done with this software.
Accounting Manager
Canon imagePROGRAF Accounting Manager tracks how much ink and media is being consumed while printing. Costs can be assigned to ink and paper to determine expenses based on “Cost of goods”. You can also input a variable cost that will be added to the total of the cost per print. The data is exportable to a .csv format for Microsoft Excel, from there the data can be used for billing purposes.
- Accounting Features:
- Log Recording Time
- Job Name
- Client Job ID
- Client Job Submission Time
- Job Execution Time
- Job Completion Time
- Job Completion State
- Media Type
- Number of completed pages
- Media consumption area per job
Free Layout Plus
New! Nest, tile and create custom layouts before printing your files with this print utility. Use the plug-in feature to print directly from Microsoft Office programs.
AutoCad Optimized Printer Driver
This specialized driver is compatible with a variety of AutoCAD software products and helps enable optimal printing productivity and reliability from the AutoCAD software. Through this module, the processing and printing time associated with printing AutoCAD files to the imagePROGRAF printer is decreased to approximately one-third of the time associated with printing AutoCAD files through the previous Canon HDI Driver! The module also has a user-friendly interface that includes familiar features such as free layout, test printing, and 1200 dpi rendering. This module is automatically loaded when printing is attempted from AutoCAD, helping to ensure a smooth workflow with optimal printing results each time.
Apple AirPrint
The TM Series supports Apple AirPrint, Apple's future standard output process. This application allows users to output from various applications on mobile devices, without specialized drivers and output applications. There are currently no restrictions on file types, so it is now easier than ever to print full quality photos and documents from most Apple products including your Mac®, iPhone®, iPad®, or iPod®. It also features easy discovery, automatic media selection, and enterprise-class finishing options.
Poster Artist Lite
Canon's included PosterArtist Lite poster creation software gives users the ability to quickly and easily create professional large format prints and now supports the creation of multilingual posters and tiling! Users simply follow the program's four (4) easy steps to create posters that can be used in applications such as office Presentations, Trade shows, Retail Signage, and much, much more. The PosterArtist QuickCopy* feature provides an easy solution for a CanoScan desktop scanner to be used as a copier, making letter-size flyers and documents into full-size posters with a touch of a button.
* Compatible with PosterArtist and PosterArtist Lite.
Device Management Console
This software allows users to continually monitor information such as the printer status and colors being used to print. It also allows printer administrators to centrally control multiple networked printers at once. This utility software displays the acquired printer information in a neat list for easy visibility. Printer administrators can be notified via email when an error or warning occurs. No more hassles to get to an installation site of a printer to check on the amount of ink remaining. Printer administrators can now simply check the amount of consumables remaining for networked printers by operating DMC software from their own personal computer. You can monitor the status of up to 50 TX Series printers!
Media Configuration Tool
Recognizing the expanding array of media options for large format printers and to further improve the versatility of these new imagePROGRAF models, Canon has developed a Media Configuration Tool, which allows customers to not only utilize Canon-branded media, but provides the ability to make adjustments to printer settings to enhance the precision and quality of output achieved with third party media.
Settings that can be configured using media parameter adjustment features include:
- Media weight and thickness
- Ink drying
- Automatic cutting settings
- Borderless printing
- Paper feed amount
- Print-head height
- Vacuum strength
- Maximum ink usage
