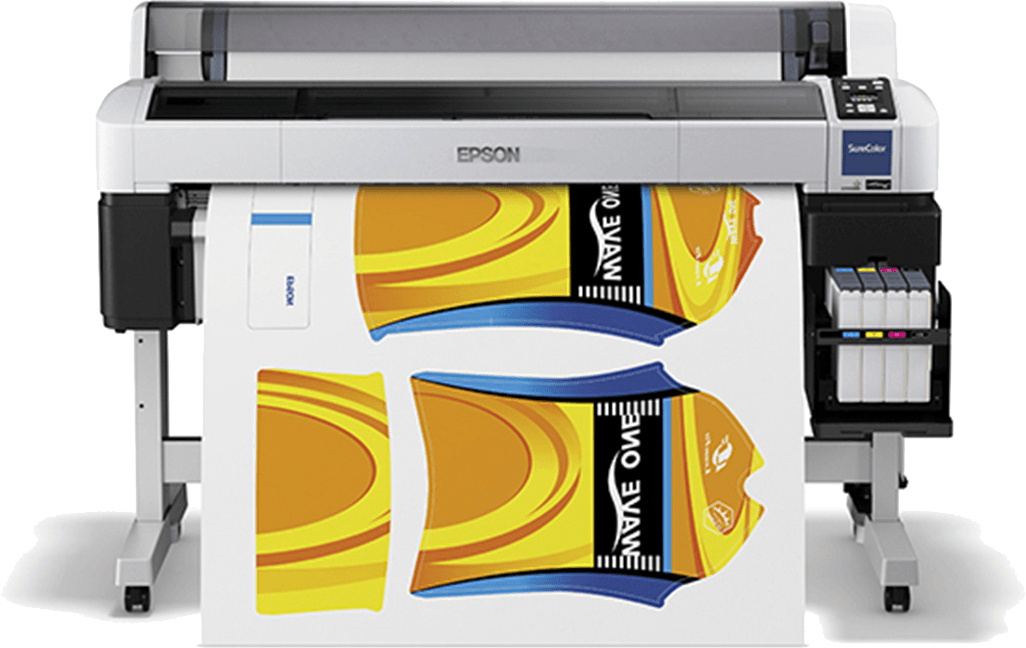

SureColor F6200 Printer
Developed using the latest advancements in performance imaging, this innovative versatile solution includes our exclusive PrecisionCore™ TFP® print head, along with our latest dye-sublimation ink technology - Epson UltraChrome® DS with High Density Black..
  • 1.5 L high capacity refillable ink tanks
  • 44" (1118 mm) print width
  • USB 2.0 & gigabit ethernet
  • Up to 634 sq.ft./hr
  • Print resolutions up to 1.440 x 720 dpi 8-pass for amazing image quality
How do you reinvent the dye-sublimation transfer printer? You start by specially designing, from the ground up, every component to work together as one system - from the print head and ink technology, to the printer engine and software. The result? A high-performance dye-sublimation transfer printer designed with extreme reliability for true industrial-level production.
Overview

Epson UltraChrome DS Ink Technology
  • High-Capacity refillable ink tanks hold 1.5 liters per colour
  • Designed to work exclusively with SureColor F-Series printers
  • Four colour — featuring a High Density Black ink formulation
  • Vibrant colours, intense blacks, sharp contours, and smooth gradations
  • Extremely fast drying times
  • New ink refill packs reduce total cost of ownership

High-Performance PrecisionCore® TFP® Print Head
  • Efficient, precise and repeatable performance and excellent image quality
  • Low vibration meniscus control for highly accurate dot shape and placement
  • One-inch wide print head with 720 nozzles per colour
  • Ink repelling coating technology for reduced print head maintenance
  • Optimized specifically for UltraChrome DS dye-sublimation inks improving the print head life

Wasatch SoftRIP

Wasatch SoftRIP is the RIP of choice for the Epson SureColor F-Series printers. Wasatch SoftRIP is sophisticated RIP software made easy. With its simple setup, intuitive workflow, and powerful print controls, SoftRIP offers the specialized tools users need for dye sublimation printing.

Wasatch SoftRIP provides a complete solution for the extensive range of applications that can be supported by the Epson SureColor F-Series printers.

Specifications
Printing Technology:
Advanced PrecisionCore TFP Print Head
8-channel, drop-on-demand, ink jet head
Continuous Ink Supply System, 1.5L High-Capacity Tanks

Minimum Ink Droplet Size:
5.3 picoliters

Maximum Print Resolution:
1440 x 720 dpi; 720 x 720 dpi; 720 x 360 dpi

Print Speed:
Speed (720 x 360 dpi) 634 SFPH1
Production (720 x 720 dpi) 325 SFPH1
High Quality (1440 x 720 dpi) 119 SFPH1

Nozzle Configuration:
720 nozzles per Color with Variable Droplet Size

Maximum Paper Width:
44"

Maximum Print Width:
43.5"

Minimum Paper Width:
10"

Interfaces:
USB 2.0, Wired Ethernet (1000 Base-T/100 Base-TX/10 Base-T)

Rated Voltage:
AC 100-240 V

Rated Frequency:
50 – 60 Hz

Power Consumption:
Operating: Approx. 65W
Sleep: Less than 3W
Power Off: Less than 0.4W

Rated Current:
0.5-1A
Ink Configuration:
Ink Supply System-chip

Replacement Ink:
UltraChrome DS Ink
    High Density Black Ink Packs (T741X00)
    Cyan Ink Packs (T741200)
    Magenta Ink Packs (T741300)
    Yellow Ink Packs (T741400)

Ink Supply Fill Volume:
1500 mL each color x 4 colors total

In-box Ink Fill Volume:
1000 mL each color x 4 colors total

Retail Ink Fill Volume:
6 x 1000 mL ink pack for each color x 4 colors total

Ink Shelf Life:
2 years from printed production date Printer is designed for use with Epson ink packs only, not third-party ink systems

Systems Requirements:
Windows 7, Windows 8, or Windows 10
2GB RAM
120GB hard drive
DVD-ROM drive

Temperature:
59° to 95°F (15° to 35°C

Humidity:
20 to 80%

Dimensions:
63"(W) x 36"(D) x 45"(H)

Weight:
207 lbs (Does not include Ink)
