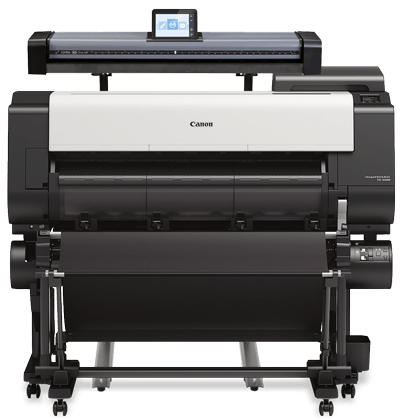

MAX ONE36 TX-3200 MFP

Scan, Copy, Print and Edit System

A complete MFP solution with a built-in controller and an easy to use touch screen interface

Max ONE36 TX3100 MFP is a new concept in MFP solutions. Centered around you, every user has a unique personal profile with their preferences stored, allowing you to email, scan or save to your preferred folder or personal Cloud in just one step.


Key Features:



  • 600 dpi scanning
  • 1200 dpi printing
  • 36” Scan, Copy & Print
  • Flat Stacker Basket
  • On Screen Markup Tools
  • On Screen Cropping
  • Built-In Controller, no PC required
  • PC & Mac drivers
  • Easy to Use Touch Screen
  • Scan to copy, file, usb and cloud
  • Wifi enabled



A powerful combination of industry leaders.
The print quality of Canon and the imaging quality of Contex.

Printer Overview

LUCIA TD Pigment Ink Set

The TX-1000 features an all-new 5-colour TD pigment ink set. This ink was formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper. Combine this pigment ink with water resistant media and you have a printed drawing that can withstand the outdoor conditions of a construction site.


Multifunction Roll System

The optional Multifunction Roll System is a versatile media handling solution system that enables either a second roll of media to be loaded on the printer, or the unit can be configured as a bi-directional media Take-up unit. Dual-Roll Feeding: The dual-roll feeding mechanism enables users to load a second roll of media allowing for up to 3900 sq ft of continuous uninterrupted printing. Bi-Directional Rewinding: The Multifunction Roll System may also be configured by the operator as a take-up unit to rewind longer printouts. The user can choose to rewind media with the printed surface on the outside or the inside of the roll, thereby supporting "bi-directional rewinding".


Flat Stacking Basket

The new TX Stacker can stack up to 100 sheets of ARCH C, ARCH D, or ARCH E/E1 page sizes for increased productivity.


Direct USB Thumb Drive Printing

JPEG and PDF files can be directly printed from the TM-305. Simply load your files onto your USB drive, step right up to the printer and plug your USB drive into the port.


500GB Hard Drive

A built-in 500GB hard drive within the printer can increase productivity by relieving workload from the host computer, while providing a large capacity for print job data storage and retrieval.


Security Features

The TX Series large-format printers come equipped with essential security features designed to help prevent leaks of confidential information: Encrypted Hard Drive, iPSec Support, SSL/TLS, 802.1x Authentication


High Capacity Ink Tanks

Available in 160ml, 330ml, and 700ml ink tanks, you have the ability to purchase a combination of ink sizes based on your printing volume.


Sub Ink Tank System

The Sub-Ink Tank System allows all of the available ink in a tank to be used before having to replace it, helping eliminate any wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs


Automatic Media Loading

Media is now loaded automatically in the new TX Series printers. Once a roll of media is placed on the roll holder, the printer will detect a roll has been loaded and begins to feed and adjust the media into optimal printing position.


Wi-Fi Compatible

Printing jobs quickly is critical on the work site and in the office. The Wi-Fi connectivity can transfer technical drawing files and help speed up your workflow- perfect for high-volume printing. No Wi-Fi router is needed, which can provide greater freedom during installation.


Print Head PF-06

The newly designed PF-06 is a 1.07-inch, 6-channel print head with 15,360 nozzles. Combined with the TX-3000's high speed carriage transfer and ink ejection, this print head allows for ink to be layed down quickly and precisely.


Sub Ink Tank System

The Sub-Ink Tank System allows virtually all of the available ink in a tank to be used before having to replace it, helping to eliminate wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.

Scanner Overview
The Contex CIS technology you get with the SD One MF scanner gives you sharp scans without unwanted background noise. And the double-sided LED light eliminates any shadows on the scan even if the original is in poor condition. This makes the SD On MF work just as great alone as an integrated part of an MFP solution with a printer attached.

Your own personal profile
We save your settings so you don't have to set them twice

Easy to use
Intuitive design makes the series easy to operate

Adapts to your workflow
SD One MF is portable and will fit almost anywhere

All popular file formats
Supports all popular scan file formats - like PDF, TIFF and JPEG

Cloud service
You’re able to scan to your favourite cloud services

Wide range of uses
The SD One MF scanners wide range of usage makes it great for both entry-level and professional environments

Software
The TX Unified Printer Driver
The TX Unified Printer Driver allows users to print to any imagePROGRAF TX Series device, without the need to install additional drivers for each model. This helps make it a hassle-free installation process for multiple devices within the same environment.

The Windows® driver and Macintosh® driver incorporate simplified page setup options, one-touch borderless printing, expanded color settings, and much more into a printer driver that is intuitive and easy-to-operate while still giving even the most advanced users the tools needed to help stay productive.

The Real Preview feature helps ensure that the print setting and the layout on the roll paper is correct by providing users with real time preview, allowing them to change the print setting even after clicking on "print." The Free Layout Tool enables nesting and custom layouts of images or files of nearly any type (available for both the Windows® driver and Mac® driver).

Direct Print and Share
Sharing ideas has never been easier with Canon’s Direct Print & Share software. Direct Print and Share is a cloud portal and batch printing solution that helps you to expand your printing workflow. This software allows you to upload documents to your cloud account using any WebDAV compliant cloud service, and print the uploaded documents from almost anywhere. Easily share and/or print .cpfx PosterArtist, PDF, TIFF, JPEG, and HP-GL/2 files, through the user-friendly interface. In addition, you can set-up hot folders on your desktop by clicking the Shortcut Print feature. Then drag and drop the files you wish to print into these folders and the job will start automatically. You can even set up multiple folders, each with their own customized settings, allowing for multiple jobs to be run with ease.

Accounting Manager
Accounting Manager software serves as a powerful feature that can help users accurately manage printing costs and other information that is increasingly important in today’s economic environment.

With the Accounting Manager software you can track how much ink and paper is being consumed when printing in large format jobs. Costs can be assigned to ink and paper to determine expenses based on your own “Cost of Goods”. Each individual ink tank and each paper type can have its own cost associated to it. The user can also input a variable cost that will be added to the total of the print cost. The data is exportable to a .csv format for Microsoft Excel® so the data can be used for billing purposes. This feature will allow you to determine the cost of each print based on your actual cost.

Poster Artist Lite
Canon's included PosterArtist Lite poster creation software gives users the ability to quickly and easily create professional large format prints and now supports the creation of multilingual posters and tiling! Users simply follow the program's four (4) easy steps to create posters that can be used in applications such as office Presentations, Trade shows, Retail Signage, and much, much more. The PosterArtist QuickCopy* feature provides an easy solution for a CanoScan desktop scanner to be used as a copier, making letter-size flyers and documents into full-size posters with a touch of a button.

* Compatible with PosterArtist and PosterArtist Lite.

AutoCAD Optimized Printer Driver
This specialized driver is compatible with a variety of AutoCAD software products and helps enable optimal printing productivity and reliability from the AutoCAD software. Through this module, the processing and printing time associated with printing AutoCAD files to the imagePROGRAF printer is decreased to approximately one-third of the time associated with printing AutoCAD files through the previous Canon HDI Driver! The module also has a user-friendly interface that includes familiar features such as free layout, test printing, and 1200 dpi rendering. This module is automatically loaded when printing is attempted from AutoCAD, helping to ensure a smooth workflow with optimal printing results each time.

Device Management Console
This software allows users to continually monitor information such as the printer status and colors being used to print. It also allows printer administrators to centrally control multiple networked printers at once. This utility software displays the acquired printer information in a neat list for easy visibility. Printer administrators can be notified via email when an error or warning occurs. No more hassles to get to an installation site of a printer to check on the amount of ink remaining. Printer administrators can now simply check the amount of consumables remaining for networked printers by operating DMC software from their own personal computer. You can monitor the status of up to 50 TX Series printers!

Media Configuration Tool
Manage, update and arrange media information in the operation panel and printer driver.

Apple AirPrint
The TM Series supports Apple AirPrint7, Apple's future standard output process. This application allows users to output from various applications on mobile devices, without specialized drivers and output applications. There are currently no restrictions on file types, so it is now easier than ever to print full quality photos and documents from most Apple products including your Mac®, iPhone®, iPad®, or iPod®. It also features easy discovery, automatic media selection, and enterprise-class finishing options.

Canon Print Service
This software allows users to print from the menus of applications that support Android’s printing subsystem. Print PDF files wirelessly via a mobile application for Android tablets and smart phones. In just a few simple steps you can log into the Canon Print Service application, create the JPEG file, send the JPEG file to a TX Series large-format printer and select the “JPEG direct print” function to print your document. Simple and easy to do on-the-go!
Printer Specifications

Printer Type


Number of Nozzles


Nozzle Pitch


OS Compatibility



Standard Interfaces



Ink Droplet Size


Ink Capacity


Ink Type


Colour Set


Buffer Ram


Hard Drive


Media Width



Media Thickness


Maximum Roll Print Length


Maximum Media Roll Diameter


Borderless Printing Width


Paper Feed Method



Languages


Noise Level Approx.



Physical Dimensions



Weight


Power Source


Power Consumption



Operating Environment


User-Replaceable Items



Software Included






Whats In the Box?


5-Colour 36" (914mm) Printer


Total: 15,360 | MBK: 5,120 nozzles | C, M, Y, BK: 2,560 nozzles


1,200 dpi Non-firing nozzle detection and compensation


Windows® 7, 8.1, 10 (32/64bit) | Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit) | Macintosh OS X v10.10.5-v10.12x


USB 2.0 High-Speed | 10/100/1000 Base-T/TX | Wireless LAN (IEEE 802.11 b/g/n) | Direct USB Thumb Drive Printing


5 picoliter


160, 330 or 700ml per colour


Pigment Ink


Pigment: Matte Black, Black, Cyan, Magenta, Yellow


128 GB (2 GB Physical)


500GB


Roll Feed: 8"-36"(203.2mm –914.4mm)

Cut Sheet: 8"-36"(203.2 mm –914.4mm)


0.07-0.8mm


Roll Feed - 59' (18 meters)


6.7 (170mm)


All sizes


Roll Feed: One Roll, Top-loading, Front Output | Cut Sheet: Top Loading, Front Output


SGRaster, HPGL/2, HP-RTL, JPEG, PDF


Operation: 51 dB (A) or less | Standby: 35 dB (A) or less | Acoustic Power: 6.9 Bels or less


With Stacker Opened -  46.0" x 54.7" x 46.8" Approx. 257 lb.

With Stand and Pallet - 41.8" x 63.2" x 35.6" Approx. 337 lb.


Approx. 257 lb. (with stacker opened)


AC100-240V (50-60Hz)


Maximum: 105W or less | Standby 3.6W or less | Power Off: 0.3W or less (Compliant with Executive Order)


Temperature: 59°-86° F (15°-30° C) Relative Humidity: 10-80%


Print Head (PF-06) | Maintenance Cartridge (MC-30) | Ink Tanks (PFI-110/PFI-310/PFI710) | Cutter Blade (CT-07)


Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Printer Driver Extra Kit, Free Layout Plus, TX Unified Printer Driver, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, CPP Publisher Select, CPP Driver Select


imagePROGRAF TX-3100, TX Stacker or Catch Basket Stand, 2"/3" Core Media,

Spool (Adaptors Included), US AC Power Cable, Tools and Screws, Print Head PF-06, Maintenance Cartridge (Installed), 5 Ink Tanks (330 ml: MBK, 160 ml: C/M/Y/BK, Ethernet Card (built-in), USB 2.0 High-speed Interface, USB Connection Sheet, iWR Service Terms Leaflet, User Manual, Quick Setup Guide

User Software CD for Windows (Printer Driver Utilities), PosterArtist Lite CD, User Registration Card, Warranty Statement

Scanner Specifications
Size (Maximum Scan Width)

Maximum Media Width

Weight and Dimensions

Accuracy

Optical Resolution

Maximum Resolution

Maximum Media Thickness

File Formats

Cloud Destinations

Connectivity

Colour Space

Energy Star Compliant

Software


Touch Panel Screen

Stand Option

36" (914mm)

38" (965mm)

36" model - 12.3 Kg. 45.6 x 8.9 x 4.9 inch / 1163 x 227 x 125 mm

0.1% +/- 1 pixel

600 dpi

9600 dpi

0.75 mm

PDF, PDF/A, TIF and JPG

Dropbox, Google Drive, Microsoft Sky Drive, Box.com

WIFI, Ethernet

sRGB

Yes

Nextimage FREE file scanning software included with the scanner. Easy creation of TIFF, JPG, PDF and PDF/A files

7” Multi Touch Screen. 800 x 480 pixels

Low and high stand available

Call us at 800-567-3222 or contact us for your free quote.
