Printer Overview

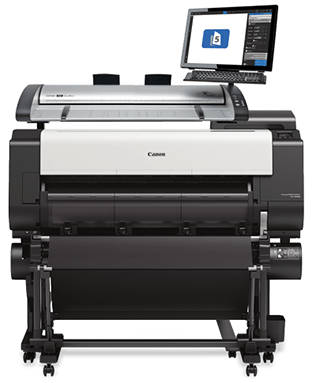

Developed to expand the production aqueous inkjet technical documents market, the 36-inch imagePROGRAF TX-3000 Large-format printer is equipped to satisfy the many diverse needs of architects, engineers, construction, GIS and other professionals.

LUCIA TD Pigment Ink Set

The TX-3100 features an all-new 5-color TD pigment ink set. This ink was formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper. Combine this pigment ink with water resistant media and you have a printed drawing that can withstand the outdoor conditions of a construction site.

Fast Printing

With faster printing of multipage files, the TX Series can print up to 3 D sized prints per minute!

Automatic Media Loading

The TX Series offers Automatic Media Loading for ease of use. You simply can place a roll of media into the printer, and let it do the rest of the work! The printer detects the roll and then automatically feeds it through. No manual feed is required.

TX Flat Stacking Basket

The new TX Stacker can stack up to 100 sheets of ARCH C, ARCH D, or ARCH E/E1 page sizes for increased productivity.

Direct USB Thumb Drive Printing

PEG and PDF files can be directly printed from the TX-3000. Simply load your files onto your USB drive, step right up to the printer and plug your USB drive into the port.

500GB HD

A built-in 500GB hard drive within the printer can increase productivity by relieving workload from the host computer, while providing a large capacity for print job data storage and retrieval.

Optional 2nd Roll Unit

The optional Multifunction Roll System is a versatile media handling solution system that enables either a second roll of media to be loaded on the printer, or can be configured as a bi-directional media take-up unit. The optional second roll unit allows for the instant switching between different media types or the use of two rolls of the same paper for up to 3900 sq. ft. of printing of large, consecutive runs. As a take-up unit the operator can choose to use this option to rewind longer printouts, with the print surface on the outside or on the inside of the roll.

Security Features

The TX Series large-format printers come equipped with essential security features designed to help prevent leaks of confidential information:

    Encrypted Hard Drive

    iPSec Support

    SSL/TLS

    802.1x Authentication

Wi-Fi Compatible

Printing jobs quickly is critical on the work site and in the office. The Wi-Fi connectivity can transfer technical drawing files and help speed up your workflow- perfect for high-volume printing. No Wi-Fi router is needed, which can provide greater freedom during installation. Wi-Fi connectivity is standard for the imagePROGRAF TX Series printers.

Print Head PF-06

The newly designed 6-channel PF-06 Print Head is engineered to work with the printer’s high-speed carriage and high-frequency ink ejection to help facilitate fast printing. This printer boasts Canon's print-head technology that lays down ink with outstanding speed and accuracy. The PF-06 print head incorporates a nozzle orifice shape to help minimize mist spray, producing clean lines and text. The high-precision, high-density print head, with a total of 15,360 nozzles, lays down 5 picoliter-size ink droplets that help produce sharp detail and excellent image quality. The result is consistently accurate 2400 x 1200 dpi output (max.) with fine lines that are accurate to ±0.10% and as thin as 0.02mm.

Sub Ink Tank System

The Sub-Ink Tank System allows virtually all of the available ink in a tank to be used before having to replace it, helping to eliminate wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.
